CAMSHAFT/TENSIONER
EN500A4 1993 FRANCE NL FG

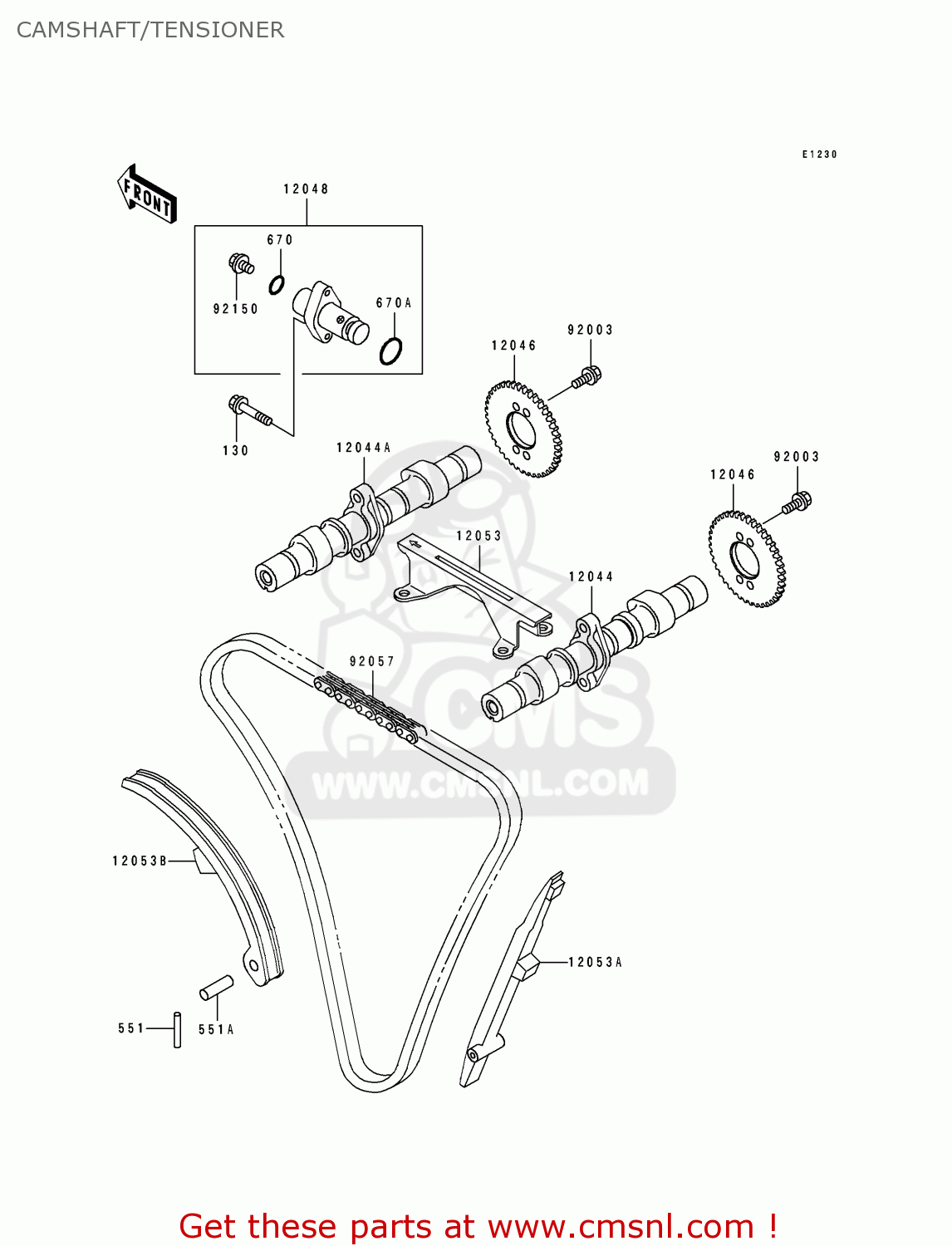

Camshaft/tensioner diagram EN500A4 1993 FRANCE NL FG
CAMSHAFT/TENSIONER EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
130
130Y0625
ref: 130
BOLT-FLANGED
€ 2.00
551
551A0432
ref: 551
PIN-DOWEL
€ 2.50
551A
551A0840
ref: 551A
PIN-DOWEL,8X40
€ 3.00
670
670D2010
ref: 670
O RING,10MM
€ 1.00
670A
670D2021
ref: 670A
O RING,21MM
€ 5.00
12044
120441215
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 202.50
12044A
120441216
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 227.00
12046
120461075
ref: 12046
SPROCKET,CAMSHAFT,46T
€ 69.00
12048
120481103
ref: 12048
TENSIONER-ASSY
€ 121.50
12053
120531145
ref: 12053
GUIDE-CHAIN,UPP
€ 32.00
12053A
120531150
ref: 12053A
GUIDE-CHAIN,RR
€ 58.50
12053B
120531151
ref: 12053B
GUIDE-CHAIN,FR
€ 43.50
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
€ 2.50
92057
920571188
ref: 92057
CHAIN,CAMSHAFT,79RH20
€ 34.50
92150
921501381
ref: 92150
BOLT,TENSIONER
€ 4.50
