STEP
AR125A1A 1983 EUROPE UK FR SD ST

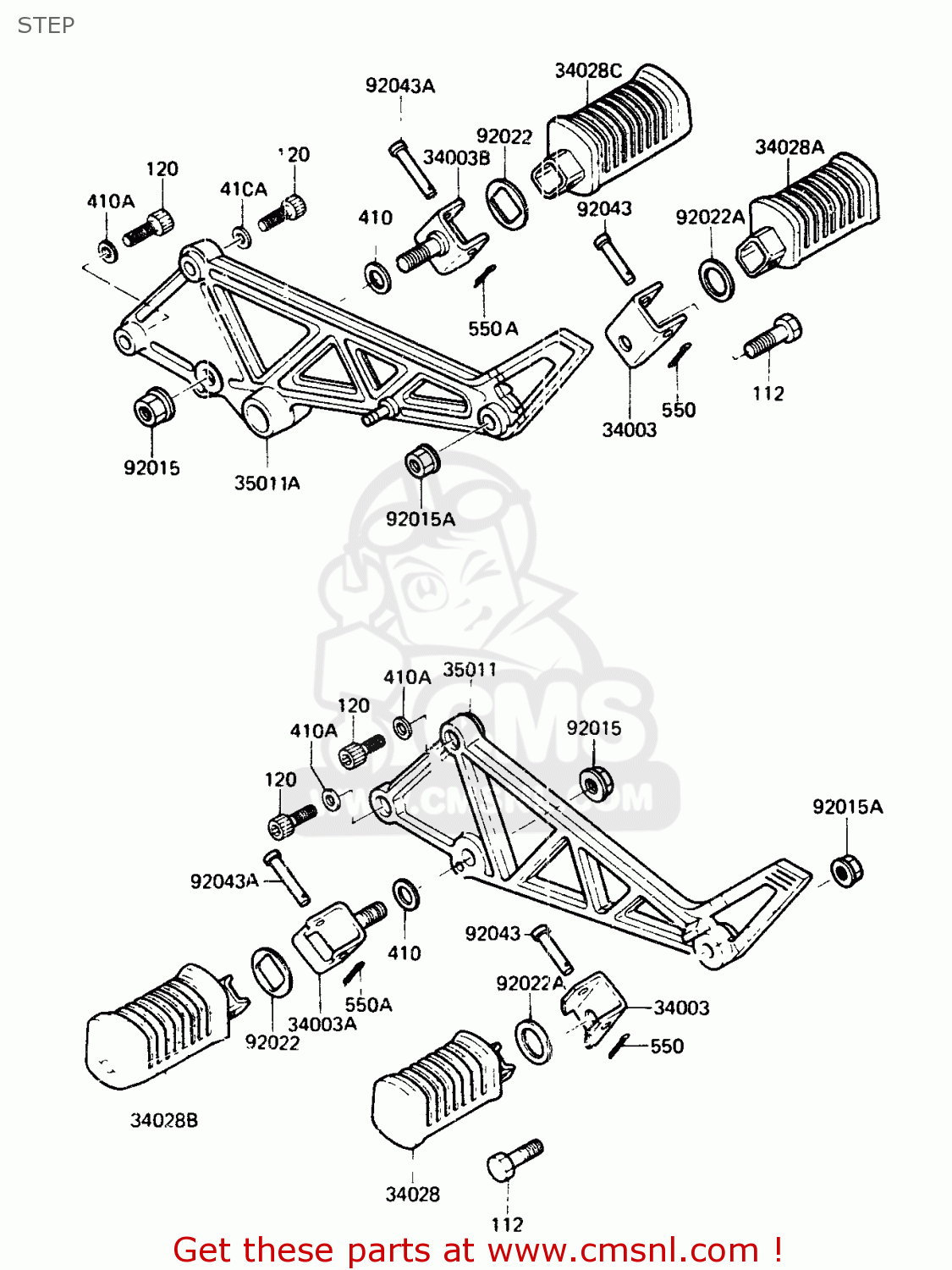

Step diagram AR125A1A 1983 EUROPE UK FR SD ST
STEP AR125A1A 1983 EUROPE UK FR SD ST
×
prices are in EUR
ref
part #
description
quantity
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031151
ref: 34003A
HOLDER-STEP,LH
€ 27.50
34003B
340031152
ref: 34003B
HOLDER-STEP,RH
€ 19.50
34028
340281041
ref: 34028
STEP,RR,LH,BLACK
€ 28.00
34028A
340281042
ref: 34028A
STEP,RR,RH,BLACK
€ 28.00
34028B
340281043
ref: 34028B
STEP,LH
€ 26.00
34028C
340281044
ref: 34028C
STEP,RH
€ 27.00
35011
350111155
ref: 35011
STAY,LH
€ 111.00
35011A
350111156
ref: 35011A
STAY,RH
€ 114.00
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92015A
920151180
ref: 92015A
NUT,FLANGED,10MM,BLAC
€ 2.50
92022
920221314
ref: 92022
WASHER,STEP FITTING
€ 3.00
92022A
920221320
ref: 92022A
WASHER,22.5X30X2.6,BL
€ 2.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
112
112C1035
ref: 112
112C1035
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
410
410B1200
ref: 410
WASHER-PLAIN-SMALL,12
€ 0.50
410A
410F0800
ref: 410A
WASHER-PLANE-SMALL,8M
€ 3.00
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
