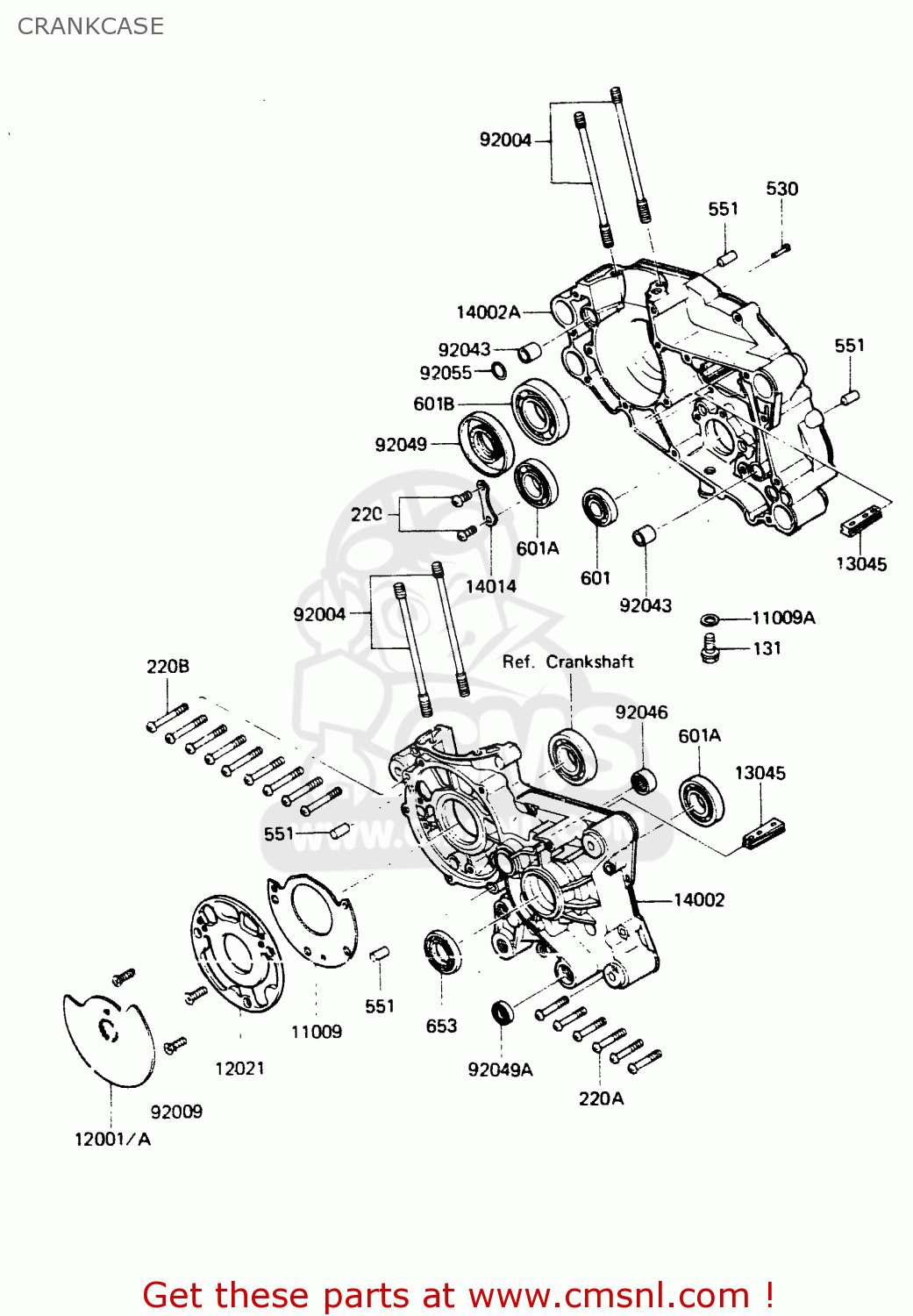

CRANKCASE

ref

part #

description

quantity

11009

110091327
ref: 11009

GASKET,ROTARY VALVE (NAS)

€ 4.50

11009A

92065058
ref: 11009A

GASKET, 10,5X16X1 (NAS)

€ 2.50

12001

120011051
ref: 12001
ST, UK

VALVE-ROTARY

€ 19.00

12001A

120011052
ref: 12001A
EU, FR, SD

VALVE-ROTARY

€ 20.00

12021

120211017
ref: 12021

VALVE-ASSY-REED

€ 270.00

13045

130451004
ref: 13045

RECEIVER-OIL

€ 2.50

14002

140021206
ref: 14002

CRANKSHAFT,LH

€ 277.00

14002A

140021207
ref: 14002A

CRANKSHAFT,RH

€ 344.00

14014

140141028
ref: 14014

PLATE-POSITION

€ 2.00

92004

920041067
ref: 92004

STUD,8X106

€ 5.50

92009

920091180
ref: 92009

SCREW,6X14

€ 2.00

92043

92042032
ref: 92043

PIN,DOWEL,14MM

€ 3.00

92046

920461051
ref: 92046

BEARING-NEEDLE

€ 13.50

92049

920491097
ref: 92049

SEAL-OIL,SD29659GS

€ 10.50

92049A

92051005A
ref: 92049A

OIL SEAL,TB13225.5

€ 5.50

92055

920551141
ref: 92055

RING-O,ID=13.8

€ 2.50

131

131B1020
ref: 131

BOLT-FLANGED,10X20

€ 2.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220B0635
ref: 220A

SCREW-PAN HEAD,6X35

€ 1.00

220B

220B0645
ref: 220B

SCREW-PAN HEAD,6X45

€ 2.50

530

530C0316
ref: 530

RIVET-ROUND,3X16

€ 1.50

551

551A0816
ref: 551

PIN-DOWEL,8X16

€ 0.50

601

601B6202
ref: 601

BEARING-BALL,#6202C3

€ 14.50

601A

601B6204
ref: 601A

BEARING-BALL,#6204C3

€ 8.00

601B

601B6305
ref: 601B

BEARING-BALL,#6305C3

€ 30.00

653

653B204007
ref: 653

OIL SEAL,TB20407

€ 10.50

all assemblies
