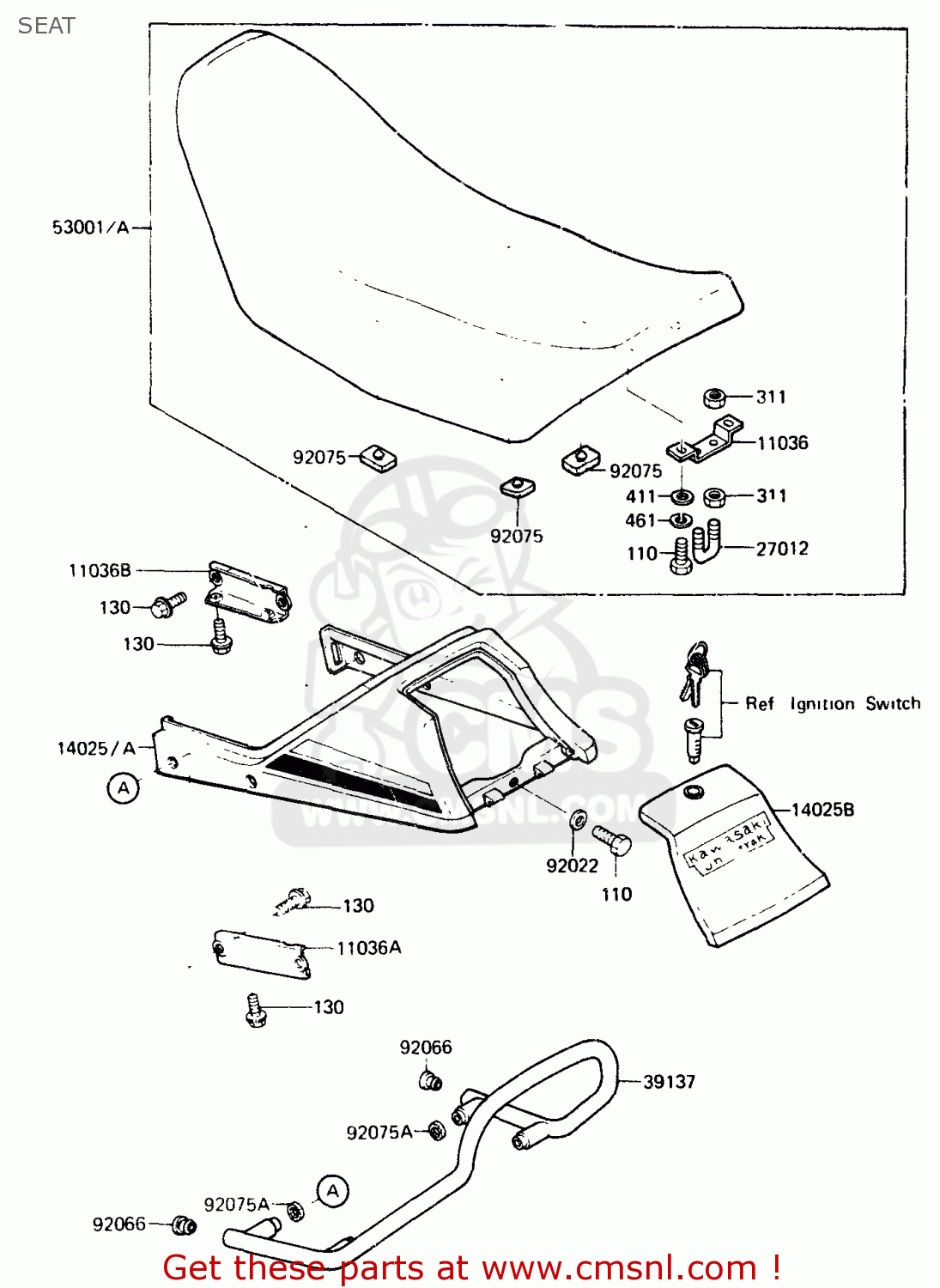

SEAT

ref

part #

description

quantity

11036

110361597
ref: 11036

BRACKET-A,SEAT HOOK

€ 6.00

11036A

110361824
ref: 11036A

BRACKET-A,STAY,LH

€ 8.50

11036B

110361825
ref: 11036B

BRACKET-A,STAY,RH

€ 9.00

14025

140255092F1
ref: 14025

COVER,SEAT,P.WHITE

€ 144.50

14025A

140255093H1
ref: 14025A

COVER,SEAT,S.RED

€ 178.00

14025B

14025510121
ref: 14025B

COVER,SEAT-COVER,F.BL

€ 74.00

27012

270121019
ref: 27012

HOOK,SEAT

€ 5.50

39137

391371014
ref: 39137

STAY-COMP,RR

€ 94.00

53001

530011236
ref: 53001
FR, SD, ST, UK

SEAT-ASSY

€ 292.50

53001A

530011274
ref: 53001A
EU

SEAT-ASSY

€ 312.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

92075

920751153
ref: 92075

DAMPER,SEAT

€ 3.00

92075A

920754010
ref: 92075A

DAMPER,HEAD LAMP

€ 2.50

110

110B0614
ref: 110

BOLT-HEX HEAD,6X14

€ 2.50

130

130B0816
ref: 130

BOLT-FLANGED,8X16

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

all assemblies
