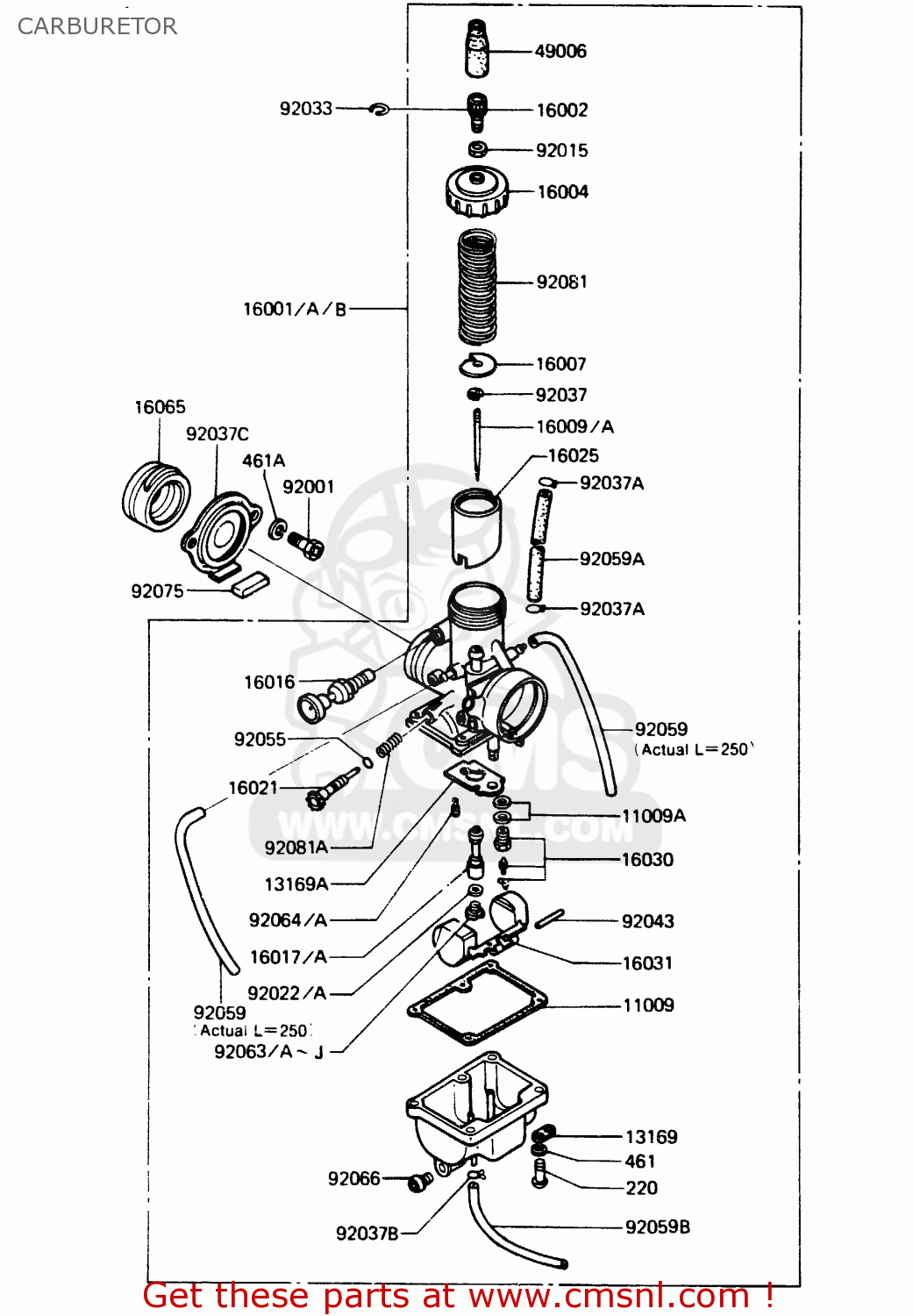

CARBURETOR

ref

part #

description

quantity

11009

110091147
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

11009A

16029004
ref: 11009A

WASHER-FLOAT VLV SEAT

€ 2.50

13169

131691226
ref: 13169

PLATE,TUBE CLAMP

€ 5.00

13169A

131691618
ref: 13169A

PLATE,LOCK

€ 7.00

16001

160011637
ref: 16001
UK

CARBURETOR

€ 184.50

16001A

160011794
ref: 16001A
EU, FR, SD

CARBURETOR

€ 197.00

16001B

160011904
ref: 16001B
ST

CARBURETOR

€ 185.50

16002

16002011
ref: 16002

CABLE ADJUSTER

€ 9.50

16004

16004025
ref: 16004

CAP,MIXING CHAMBER

€ 23.50

16007

16007023
ref: 16007

SPRING SEAT,THRTL VL

€ 7.00

16009

160091211
ref: 16009
EU, FR, SD, ST

NEEDLE-JET,4D06-2

€ 20.50

16009A

160091212
ref: 16009A
UK

NEEDLE-JET,4C01-2

€ 19.00

16016

160161027
ref: 16016

PLUNGER

€ 24.00

16017

160171130
ref: 16017
UK

JET-NEEDLE,P-2

€ 25.50

16017A

160171206
ref: 16017A
EU, FR, SD, ST

JET-NEEDLE,O-8

€ 21.00

16021

160211042
ref: 16021

SCREW-THROTTLE STOP

€ 11.50

16025

160251028
ref: 16025

VALVE-THROTTLE,CA1.5

€ 77.50

16030

160301029
ref: 16030

VALVE-FLOAT,2.5

€ 29.50

16031

160311065
ref: 16031

FLOAT

€ 39.00

16065

160651061
ref: 16065

HOLDER-CARBURETOR

€ 9.50

49006

490061085
ref: 49006

BOOT,CARBURETOR

€ 22.00

92001

920011782
ref: 92001

BOLT,6X14

€ 2.50

92015

16003006
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92022

16034001
ref: 92022
UK

WASHER-MAIN JET

€ 2.50

92022A

920221464
ref: 92022A
EU, FR, SD, ST

WASHER,MAIN JET

€ 2.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

92037072
ref: 92037A

CLAMP,TUBE

€ 4.00

92037B

920371043
ref: 92037B

CLAMP,TUBE

€ 1.50

92037C

920371351
ref: 92037C

CLAMP,CARBURETOR HOLD

€ 6.00

92043

16032003
ref: 92043

FLOAT PIN

€ 4.00

92055

92055044
ref: 92055

'O' RING

€ 7.00

all assemblies
