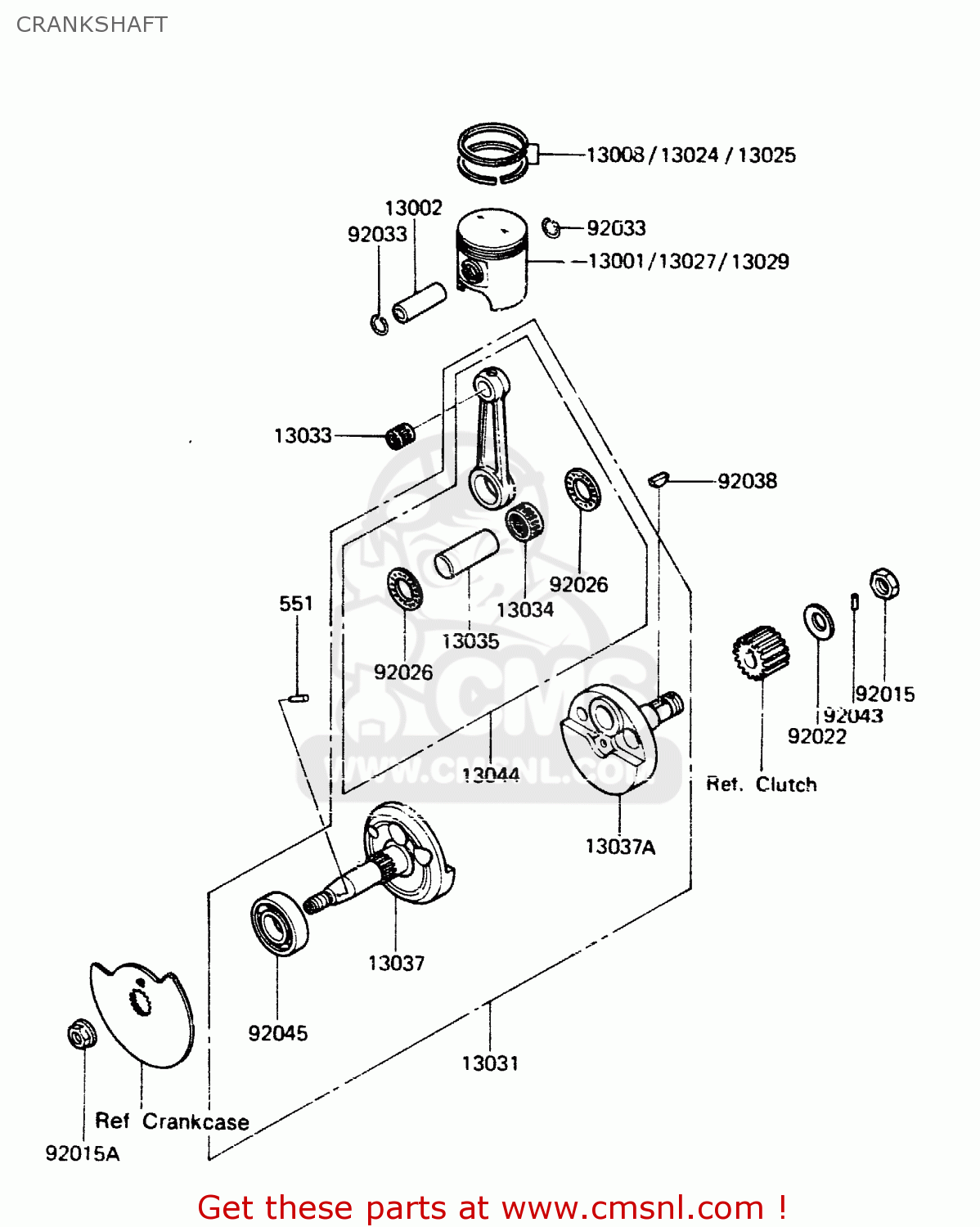

CRANKSHAFT

ref

part #

description

quantity

13001

130011104
ref: 13001

PISTON-ENGINE,STD

€ 49.00

13002

130021006
ref: 13002

PIN,PISTON

€ 17.00

13008

130085060
ref: 13008

RING-SET-PISTON,STD

€ 52.50

13024

130245025
ref: 13024

RING-SET-PISTON LL,O/

€ 62.00

13025

130255026
ref: 13025

RING-SET-PISTON L,O/S

€ 57.50

13027

130271048
ref: 13027

PISTON-ENGINE LL,1.00

€ 37.00

13029

130291049
ref: 13029

PISTON-ENGINE L,0.50

€ 43.50

13031

130311158
ref: 13031

CRANKSHAFT-COMP

€ 276.50

13033

130331008
ref: 13033

BEARING-NEEDLE,KBK15X

€ 23.50

13034

130341053
ref: 13034

BEARING-NEEDLE

€ 41.00

13035

130351011
ref: 13035

PIN-CRANK

€ 12.00

13037

130371147
ref: 13037

CRANKSHAFT,LH

€ 129.00

13037A

130371148
ref: 13037A

CRANKSHAFT,RH

€ 118.50

13044

130445027
ref: 13044

SET-CONNECTING ROD

€ 207.00

92015

92015072
ref: 92015

NUT,LOCK,16MM

€ 4.50

92015A

920151156
ref: 92015A

NUT,12MM

€ 4.50

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92026

920261136
ref: 92026

SPACER,22.2X37X1.0

€ 5.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

92043

92042035
ref: 92043

PIN,DOWEL,2.5X12.8

€ 2.50

92045

920451061
ref: 92045

BEARING-BALL,R-6205C3

€ 30.50

551

551A0308
ref: 551

PIN-DOWEL,3X8

€ 0.50

all assemblies
