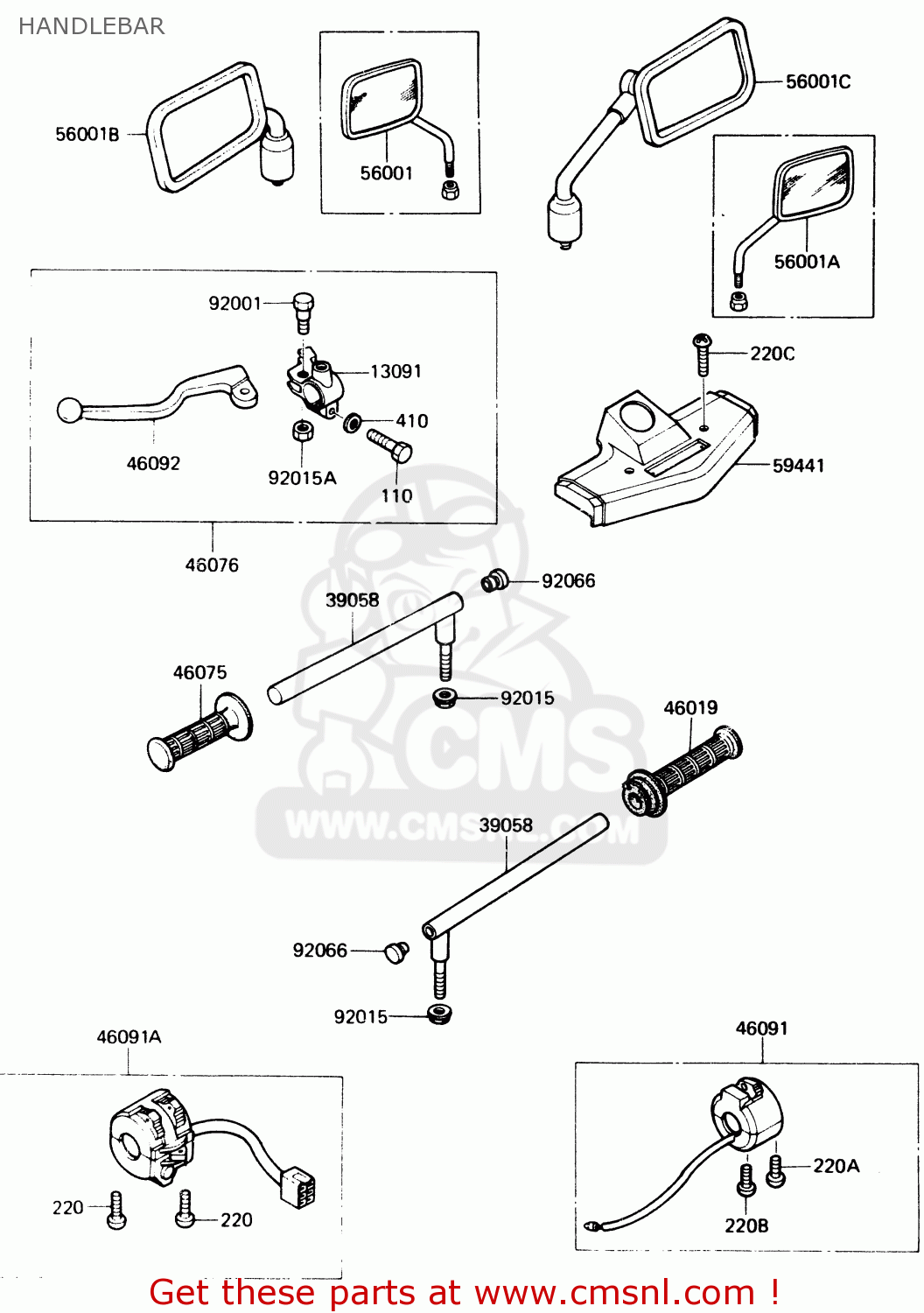

HANDLEBAR

ref

part #

description

quantity

13091

130911169
ref: 13091

HOLDER,CLUTCH LEVER

€ 22.50

39058

390581004
ref: 39058

HANDLE-COMP

€ 54.00

46019

460191030
ref: 46019

GRIP-ASSY,THROTTLE

€ 20.50

46075

460751004
ref: 46075

GRIP,L.H.

€ 8.00

46076

460761035
ref: 46076

LEVER-ASSY-GRIP,LH

€ 40.00

46091

460911111
ref: 46091

HOUSING-ASSY-CONTROL,

€ 43.50

46091A

460911247
ref: 46091A

HOUSING-ASSY-CONTROL,

€ 65.50

46092

460921036
ref: 46092

LEVER-GRIP,CLUTCH

€ 11.00

56001

560011101
ref: 56001
EU, SD, ST

MIRROR-ASSY,LH

€ 48.00

56001A

560011102
ref: 56001A
EU, SD, ST

MIRROR-ASSY,RH

€ 48.00

56001B

560011110
ref: 56001B
FR, UK

MIRROR-ASSY,LH

€ 67.50

56001C

560011111
ref: 56001C
FR, UK

MIRROR-ASSY,RH

€ 71.50

59441

594411009
ref: 59441

COVER-HANDLE

€ 11.50

92001

920011704
ref: 92001

BOLT,5X22

€ 6.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151221
ref: 92015A

NUT,LOCK,5MM

€ 4.00

92066

32112009
ref: 92066

PLUG,18X3

€ 2.00

110

110C0625
ref: 110

BOLT,6X25

€ 2.50

220

220B0522A
ref: 220

SCREW-PAN HEAD,5X22

€ 0.50

220A

220B0535A
ref: 220A

SCREW-PAN HEAD,5X35

€ 2.00

220B

220B0540A
ref: 220B

SCREW-PAN HEAD,5X40

€ 2.00

220C

220C0430A
ref: 220C

SCREW-PAN-CROS,4X30,B

€ 2.00

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
