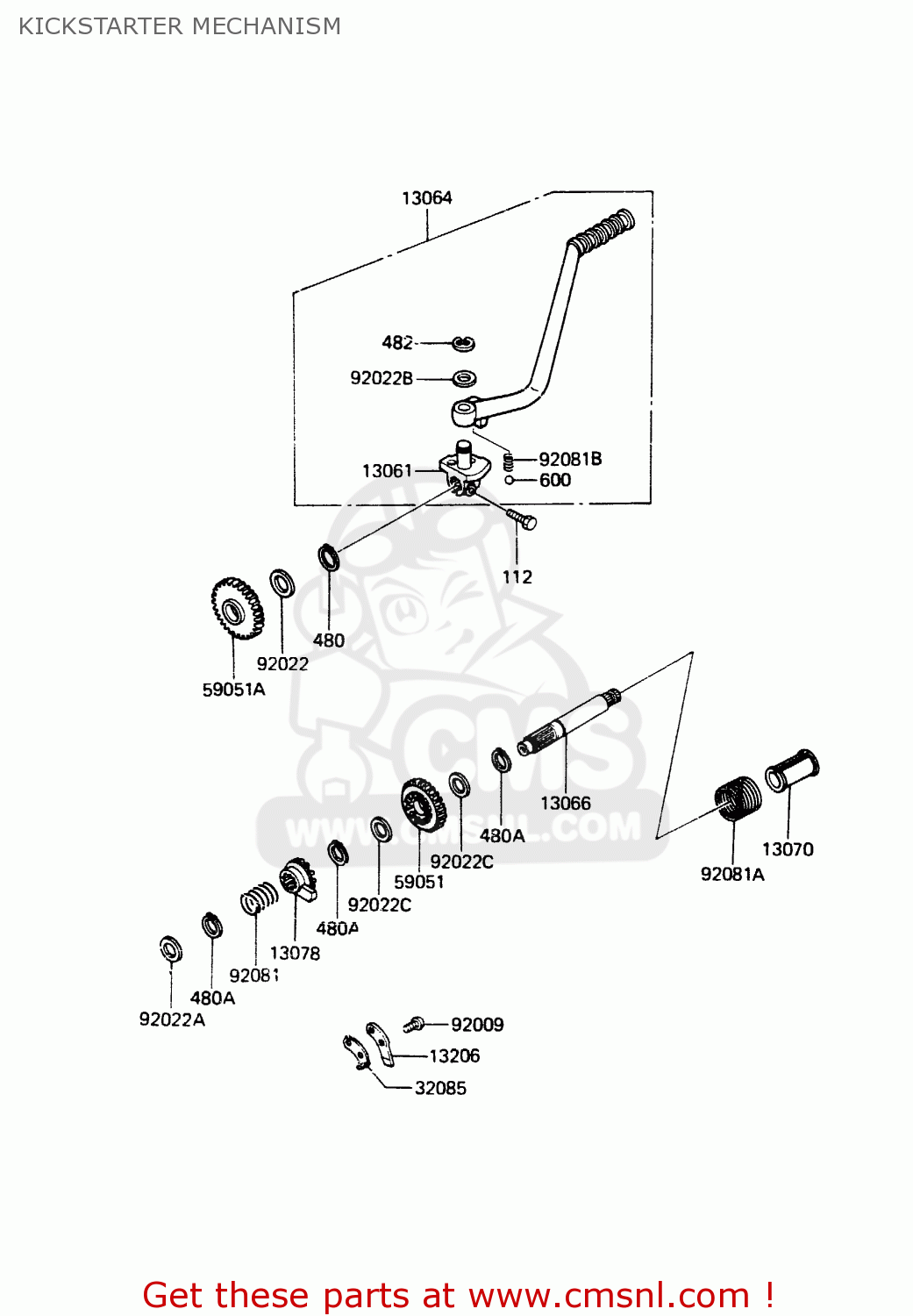

KICKSTARTER MECHANISM

ref

part #

description

quantity

13061

130611101
ref: 13061

BOSS,KICK LEVER

€ 39.50

13064

130641101
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 173.00

13066

130661016
ref: 13066

SHAFT-KICK

€ 47.00

13070

130701035
ref: 13070

GUIDE,KICK SHAFT

€ 5.50

13078

130781006
ref: 13078

RATCHET

€ 36.50

13206

132061002
ref: 13206

GUIDE-KICK

€ 5.50

32085

320851027
ref: 32085

STOPPER,KICKSTARTER

€ 5.50

59051

590511045
ref: 59051

GEAR-SPUR,KICK,28T

€ 36.50

59051A

590511046
ref: 59051A

GEAR-SPUR,IDLE,33T

€ 35.50

92009

920091104
ref: 92009

SCREW,TAPPING

€ 2.50

92022

920221045
ref: 92022

WASHER,15.3X25X0.5

€ 3.00

92022A

920221224
ref: 92022A

WASHER,13.2X20X0.5

€ 2.50

92022B

920221459
ref: 92022B

WASHER,14X24X1.8

€ 4.50

92022C

92022315
ref: 92022C

WASHER, 16.8X22X0.5

€ 4.00

92081

92081122
ref: 92081

SPRING,RATCHET

€ 6.00

92081A

920811276
ref: 92081A

SPRING,KICK STARTER

€ 9.00

92081B

92081154
ref: 92081B

SPRING

€ 2.00

112

112J0620
ref: 112

BOLT-UPSET 6X20

€ 2.50

480

480J1500
ref: 480

CIRCLIP-TYPE-C,15MM

€ 1.00

480A

480J1600
ref: 480A

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

all assemblies
