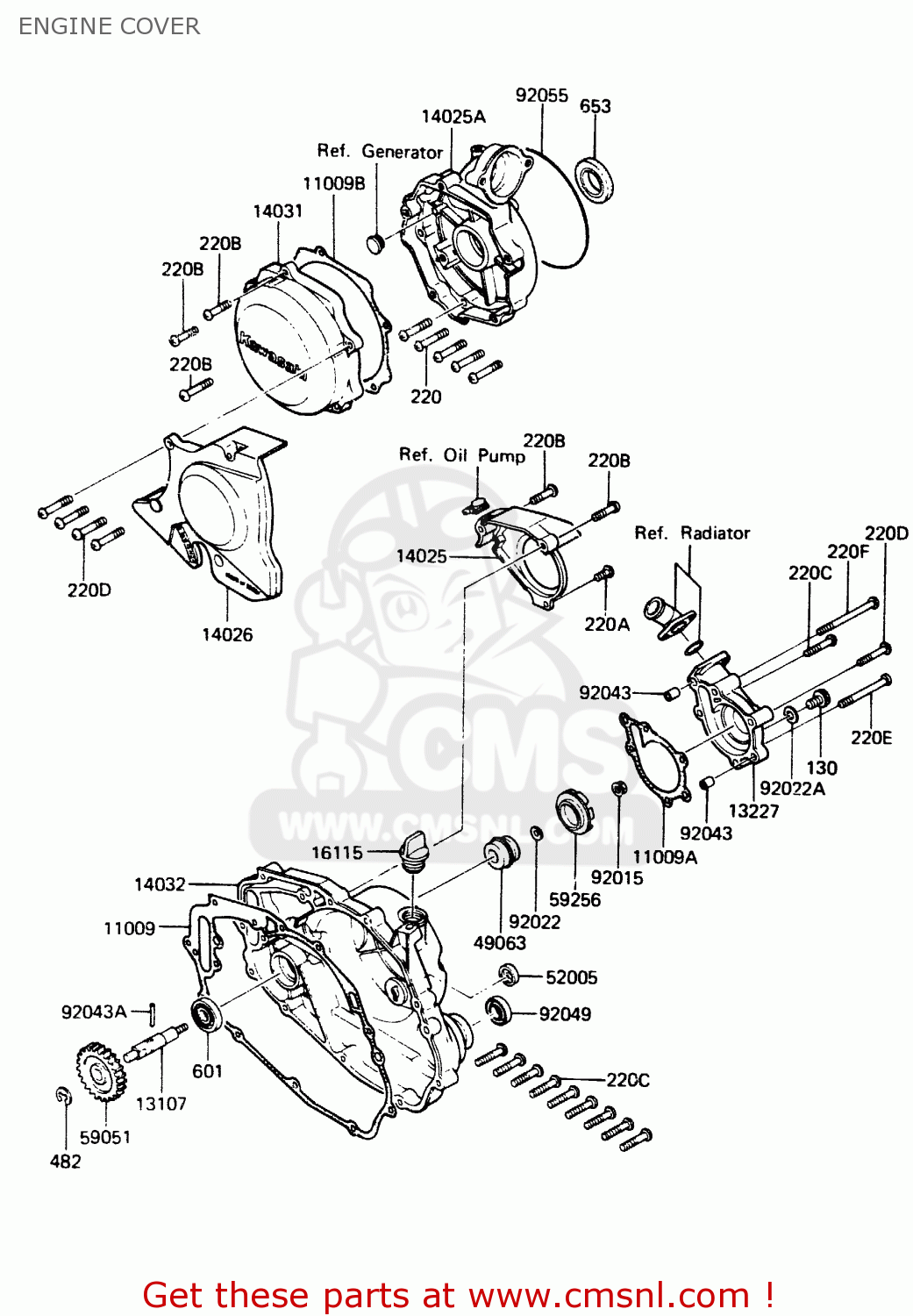

ENGINE COVER

ref

part #

description

quantity

11009

110091301
ref: 11009

GASKET,CLUTCH COVER (MCA)

€ 12.50

11009A

110091302
ref: 11009A

GASKET,WATER HOUSING (MCA)

€ 3.50

11009B

110091303
ref: 11009B

GASKET,GENERATOR COVE (MCA)

€ 2.50

13107

131071035
ref: 13107

SHAFT,WATER PUMP

€ 15.50

13227

132271007
ref: 13227

HOUSING,WATER PUMP

€ 44.00

14025

140251537
ref: 14025

COVER,OIL PUMP

€ 19.00

14025A

140251538
ref: 14025A

COVER,VALVE

€ 110.00

14026

140261072
ref: 14026

COVER-CHAIN

€ 30.00

14031

140311097
ref: 14031

COVER-GENERATOR

€ 27.00

14032

140321086
ref: 14032

COVER-CLUTCH

€ 112.00

16115

16115016
ref: 16115

PLUG-OIL FILLER

€ 7.00

49063

490631002
ref: 49063

SEAL-MECHANICAL,WATER

€ 17.00

52005

520051005
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

59051

590511048
ref: 59051

GEAR-SPUR,WATER PUMP,

€ 17.50

59256

592561003
ref: 59256

IMPELLER,WATER PUMP

€ 21.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

920221086
ref: 92022A

WASHER,8.2X16X1

€ 2.50

92043

92042038
ref: 92043

PIN DOWEL

€ 1.00

92043A

920431129
ref: 92043A

PIN,3.5X23.8

€ 3.00

92049

92051003
ref: 92049

OIL SEAL TB16267

€ 6.00

92055

920551169
ref: 92055

RING-O,121.5MM

€ 6.00

130

130B0812
ref: 130

BOLT,FLANGED,8X12

€ 0.50

220

220B0635
ref: 220

SCREW-PAN HEAD,6X35

€ 1.00

220A

220C0612
ref: 220A

SCREW-PAN-CROS,6X12

€ 2.50

220B

220C0625
ref: 220B

SCREW-PAN-CROS,6X25,B

€ 2.50

220C

220C0630
ref: 220C

SCREW-PAN-CROS,6X30,B

€ 1.50

220D

220C0635
ref: 220D

SCREW-PAN-CROS,6X35,B

€ 3.50

220E

220C0660
ref: 220E

SCREW-PAN-CROS,6X60

€ 3.00

220F

220C0670
ref: 220F

SCREW-PAN-CROS,6X70

€ 2.00

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

601

601B6201
ref: 601

BEARING-BALL,#6201C3

€ 7.00

653

653B204007
ref: 653

OIL SEAL,TB20407

€ 10.50

all assemblies
