CLUTCH
AR125A1A 1983 EUROPE UK FR SD ST

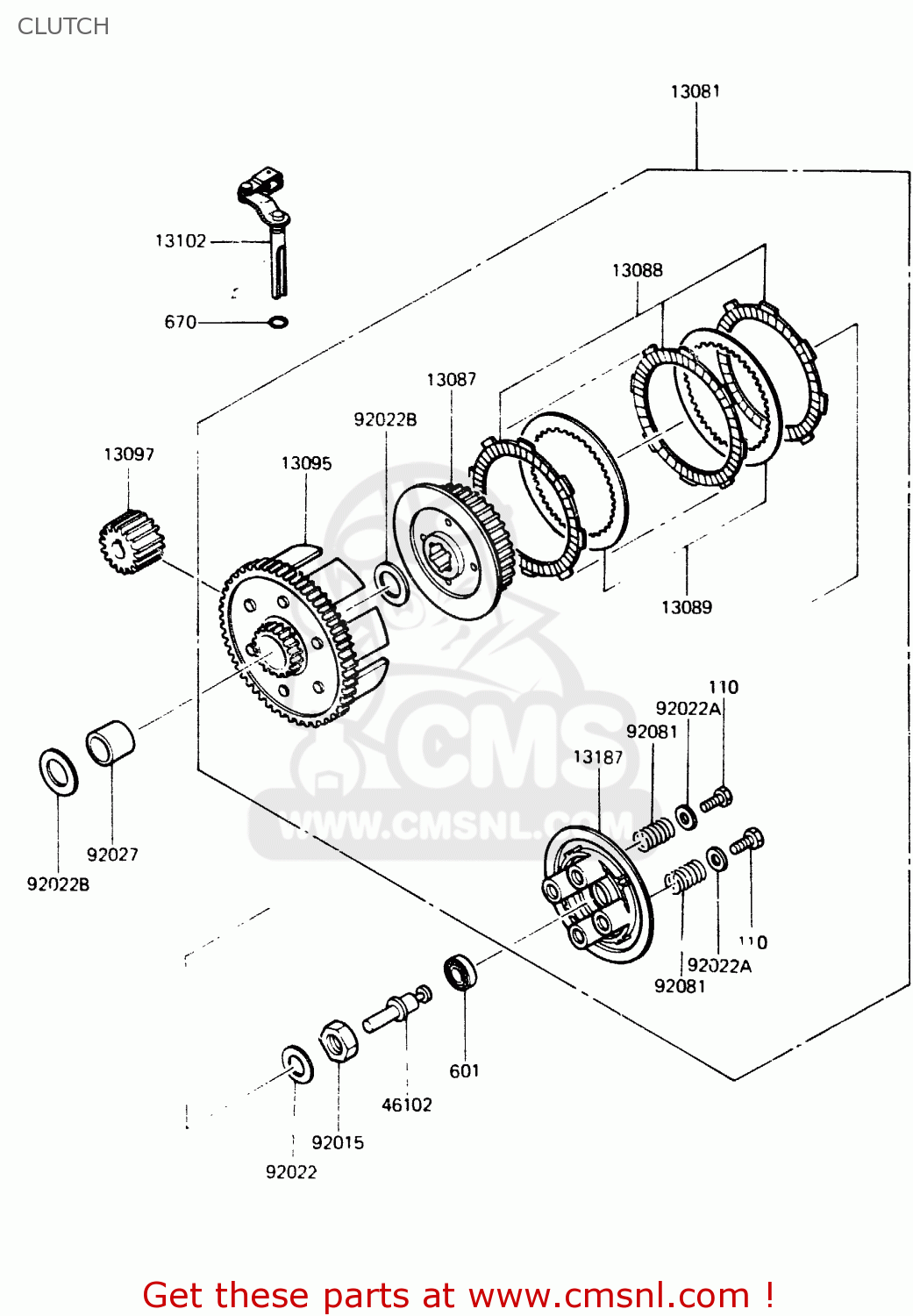

Clutch diagram AR125A1A 1983 EUROPE UK FR SD ST
CLUTCH AR125A1A 1983 EUROPE UK FR SD ST
×
prices are in EUR
ref
part #
description
quantity
13081
130811156
ref: 13081
CLUTCH-ASSY
€ 303.00
13087
130871021
ref: 13087
HUB-CLUTCH
€ 73.00
13088
130881016
ref: 13088
PLATE-FRICTION (NAS)
€ 10.00
13089
130891012
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13095
130951102
ref: 13095
HOUSING-COMP-CLUTCH
€ 271.00
13097
130971083
ref: 13097
GEAR-PRIMARY SPUR,16T
€ 62.00
13102
131021018
ref: 13102
RELEASE-COMP-CLUTCH
€ 40.00
13187
131871013
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 32.00
46102
461021049
ref: 46102
ROD,CLUTCH
€ 15.00
92015
92015072
ref: 92015
NUT,LOCK,16MM
€ 4.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92022A
920221357
ref: 92022A
WASHER,6.5X18X1.6
€ 0.50
92022B
92022168
ref: 92022B
WASHER-CLUTCH THRUST
€ 6.50
92027
920271584
ref: 92027
COLLAR,CLUTCH BUSHING
€ 13.00
92081
920811492
ref: 92081
SPRING,CLUTCH
€ 5.00
110
110B0620
ref: 110
BOLT-HEX HEAD,6X20
€ 1.00
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
