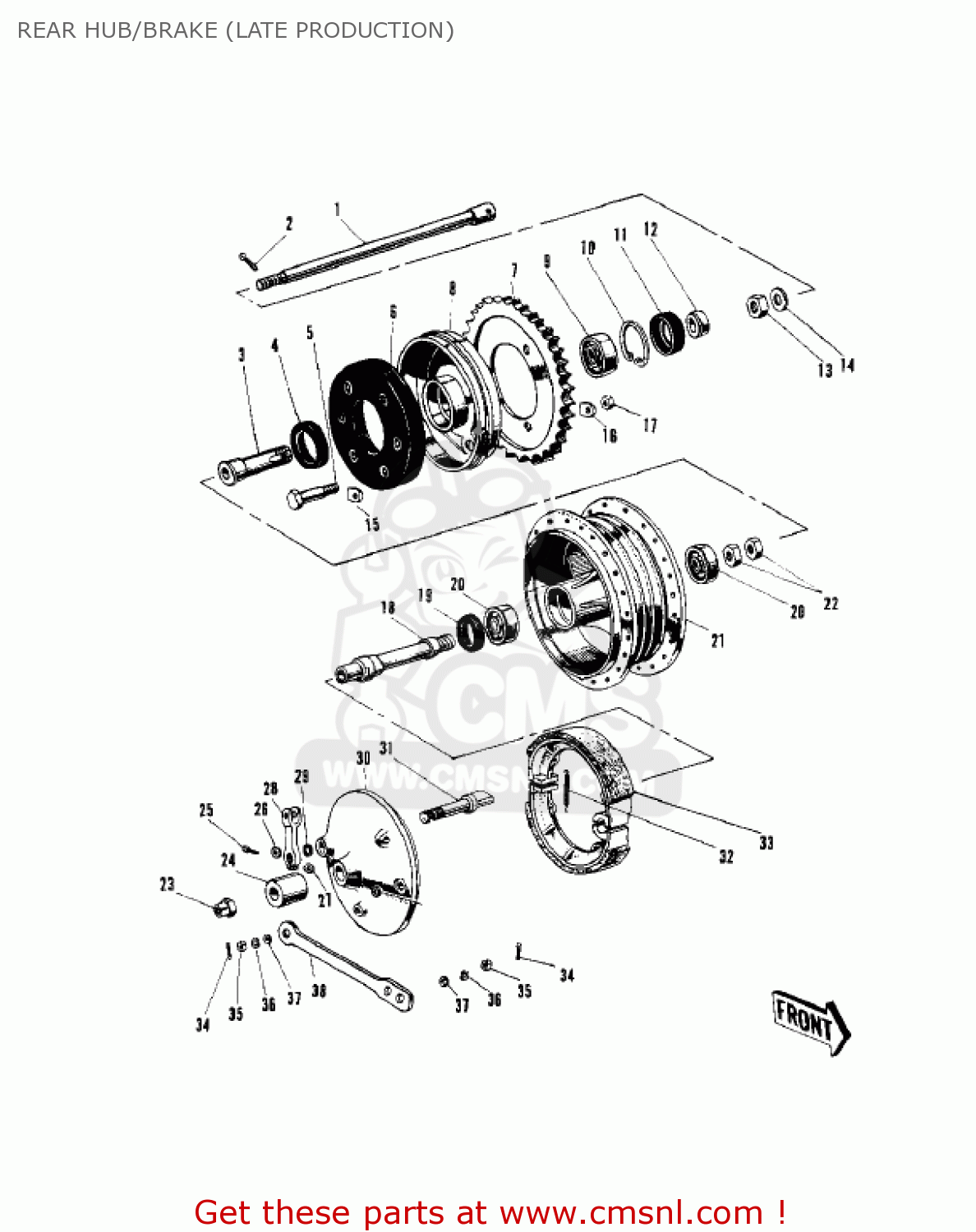

REAR HUB/BRAKE (LATE PRODUCTION)

ref

part #

description

quantity

1

42031018
ref: 1

AXLE,REAR

€ 64.00

2

550D4030
ref: 2

PIN-COTTER,4.0X30

€ 1.50

3,4 8~

42033002
ref: 3,4 8~

REAR HUB COUPLING ASSEMBLY

€ 240.50

3

42036004
ref: 3

REAR AXLE SLEEVE,LH

€ 64.00

4

92053008
ref: 4

OIL SEAL COUPLING

€ 9.00

5

92003032
ref: 5

BOLT,SHOCK DAMPER FITTING

€ 9.00

5

92003067
ref: 5
I.S.O. THREAD

BOLT-AIR CLEANER

€ 1.50

6

42014011
ref: 6

REAR HUB SHOCK DAMPER

€ 92.50

7

42041034
ref: 7
S.T.D.

REAR SPROCKET 41T

€ 28.50

7

42041037
ref: 7
W1 OPTION

REAR SPROCKET,43T

€ 133.00

7

42041036
ref: 7
W1 OPTION

REAR SPROCKET 42T

€ 34.50

7

42041036
ref: 7
S.T.D.

REAR SPROCKET 42T

€ 34.50

7

42041034
ref: 7
W1SS,W2SS W2TT OPTIO

REAR SPROCKET 41T

€ 28.50

7

42041037
ref: 7
W1SS,W2SS W2TT OPTIO

REAR SPROCKET,43T

€ 133.00

9

601B6205
ref: 9

BEARING-BALL,#6205C3

€ 13.00

10

920331043
ref: 10

RING,SNAP,56.2M/M

€ 5.50

11

92052006
ref: 11

OIL SEAL WTC35527

€ 6.00

12

42037019
ref: 12

REAR AXLE COLLAR,LH

€ 6.00

13

42045007
ref: 13

NUT,LH SLEEVE

€ 19.00

14

42046010
ref: 14

WASHER-L.H SLEEVE

€ 5.00

15

92088009
ref: 15

COUPLING LOCK WASHER

€ 12.50

16

92088015
ref: 16

WASHER-SPROCKET LOCK

€ 14.50

17

315B1200
ref: 17

NUT,12MM

€ 0.50

17

315B1200
ref: 17
I.S.O. THREAD

NUT,12MM

€ 0.50

?

42005012
ref: ?
Includes items 18 -

REAR BRAKE DRUM ASSEMBLY

€ 490.00

18

42011001
ref: 18

REAR AXLE SLEEVE,RH

€ 129.50

19

652A355508
ref: 19

OIL SEAL RR AXLE R.H

€ 7.00

20

92116001
ref: 20

BEARING-ROLLER,#30205

€ 18.50

22

42045008
ref: 22

NUT,24MM

€ 6.00

23

42045014
ref: 23

NUT CASTLE, 16M/M

€ 6.00

24

42032007
ref: 24

COLLAR-REAR HUB R.H

€ 7.00

?

4200601021
ref: ?
Includes items 25 -

REAR BRAKE PANEL ASSEMBLY,FLAT BLACK

€ 705.50

25

112G0640
ref: 25

BOLT-UPSET,6X40

€ 2.50

26

410B0600
ref: 26

WASHER-PLAIN-SMALL,6M

€ 0.50

27

311B0600
ref: 27

NUT,6MM

€ 0.50

28

42029008
ref: 28

REAR BRAKE CAM LEVER

€ 33.00

29

41051001
ref: 29

DUST SHIELD-BRAKE CAM

€ 2.50

31

42026017
ref: 31

REAR BRAKE CAMSHAFT

€ 95.50

32

42020003
ref: 32

SPRING-BRAKE SHOE

€ 6.00

33

42019007
ref: 33

SHOE-BRAKE (MCA)

€ 67.00

34

550D2020
ref: 34

PIN-COTTER,2.0X20

€ 0.50

35

314B1000
ref: 35

NUT,10MM

€ 0.50

36

461F1000
ref: 36

WASHER-SPRING,10MM

€ 0.50

37

411B1000
ref: 37

WASHER-PLAIN,10MM

€ 0.50

38

43007013
ref: 38

TORQUE LINK,REAR BRK

€ 3.50
