CRANKSHAFT/PISTONS/OIL PUMP
W1SS 1968 USA CANADA

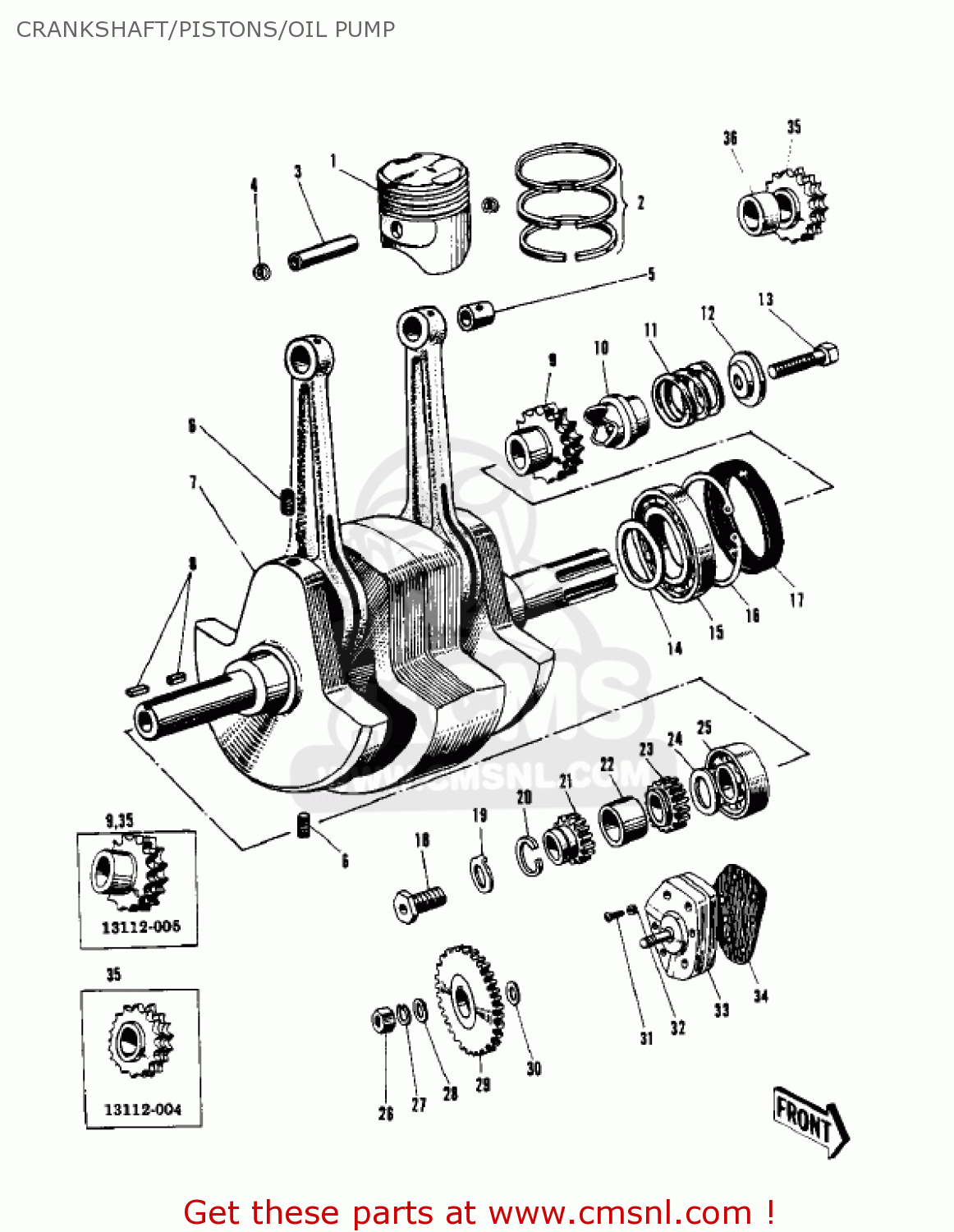

Crankshaft/pistons/oil pump diagram W1SS 1968 USA CANADA
CRANKSHAFT/PISTONS/OIL PUMP W1SS 1968 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13001025
ref: 1
PISTON,STD
€ 48.50
2
13008018
ref: 2
RING-SET-PISTON,STD
€ 73.00
3
13002012
ref: 3
PIN-PISTON
€ 23.50
4
92036009
ref: 4
WHN EXH USE 92036-00
CIRCLIP PISTON PIN
€ 0.50
4
92036008
ref: 4
CIRCLIP-PISTON PIN
€ 0.50
5
92028030
ref: 5
BUSH-SMALL END
€ 2.50
8
291H0816
ref: 8
SCREW SLOTTED
€ 1.50
7
13036020
ref: 7
CRANK&CONROD ASSY
€ 1,252.00
8
511A0514
ref: 8
WOODRUFF KEY
€ 5.50
9
13112003
ref: 9
WHN EXH USE 13112-00
CRANKSHAFT SPROCKET
€ 61.00
9
13112005
ref: 9
CRANKSHAFT SPROCKET
€ 61.00
10
13049001
ref: 10
WHN EXH USE 13049-00
PRIMARY CHAIN SHOCK ABSORBER
€ 295.00
10
13049001
ref: 10
PRIMARY CHAIN SHOCK ABSORBER
€ 295.00
11
92081031
ref: 11
SHOCK ABSORBER SPRING
€ 39.00
12
13047001
ref: 12
SEAT SPRING
€ 56.50
13
113G1635
ref: 13
BOLT-HEX HEAD,16X35
€ 12.50
14
92025018
ref: 14
*NOT REQUIRED FOR 92
MAIN BEARING SHIM
€ 17.50
14
92025018
ref: 14
*NOT REQUIRED FOR 92
MAIN BEARING SHIM
€ 17.50
15
92045015
ref: 15
BEARING,#BL307NC3
€ 35.50
16
481J8000
ref: 16
CIRCLIP 80MM
€ 5.50
17
92050019
ref: 17
OIL SEAL,SC458010
€ 70.50
18
92001041
ref: 18
BOLT-OIL PUMP PINION
€ 2.50
19
92030002
ref: 19
WASHER-OIL PUMP LOCK
€ 0.50
20
16139001
ref: 20
RING-OIL SEAL
€ 9.50
21
16084006
ref: 21
PINION-OIL PUMP
€ 38.00
22
92026032
ref: 22
OIL PUMP PINION SPACER
€ 16.00
23
12062001
ref: 23
PINION-CRANKSHAFT
€ 34.00
24
92027040
ref: 24
CRANK PINION COLLAR
€ 0.00
25
92045015
ref: 25
WHN EXH USE 92045-00
BEARING,#BL307NC3
€ 35.50
25
92045015
ref: 25
BEARING,#BL307NC3
€ 35.50
28
317G0800
ref: 28
NUT-HEX-SMALL,8MM
€ 0.50
27
461F0800
ref: 27
WASHER-SPRING,8MM
€ 0.50
28
410B0800
ref: 28
WASHER-PLAIN-SMALL,8M
€ 0.50
29
16085007
ref: 29
WHN EXH USE 16085-00
GEAR-OIL PUMP
€ 52.50
29
16085007
ref: 29
WHN EXH USE 16085-01
GEAR-OIL PUMP
€ 52.50
29
16085007
ref: 29
GEAR-OIL PUMP
€ 52.50
30
92022147
ref: 30
USE FOR 16085-013 ON
WASHER,PLAIN
€ 3.00
31
220B0655
ref: 31
SCREW-PAN HEAD,6X55
€ 2.00
32
461F0600
ref: 32
WASHER-SPRING,6MM
€ 0.50
33
16082012
ref: 33
OIL PUMP ASSY
€ 155.50
34
16094005
ref: 34
OIL PUMP GASKET
€ 3.00
35
13112004
ref: 35
WHN EXH USE 13112-00
CRANKSHAFT SPROCKET
€ 61.00
35
13112005
ref: 35
CRANKSHAFT SPROCKET
€ 61.00
36
92027047
ref: 36
USE FOR 13112-004
CRANK SPROCKET COLLAR
€ 28.50
