CARBURETOR (W1/W1SS)
W1SS 1968 USA CANADA

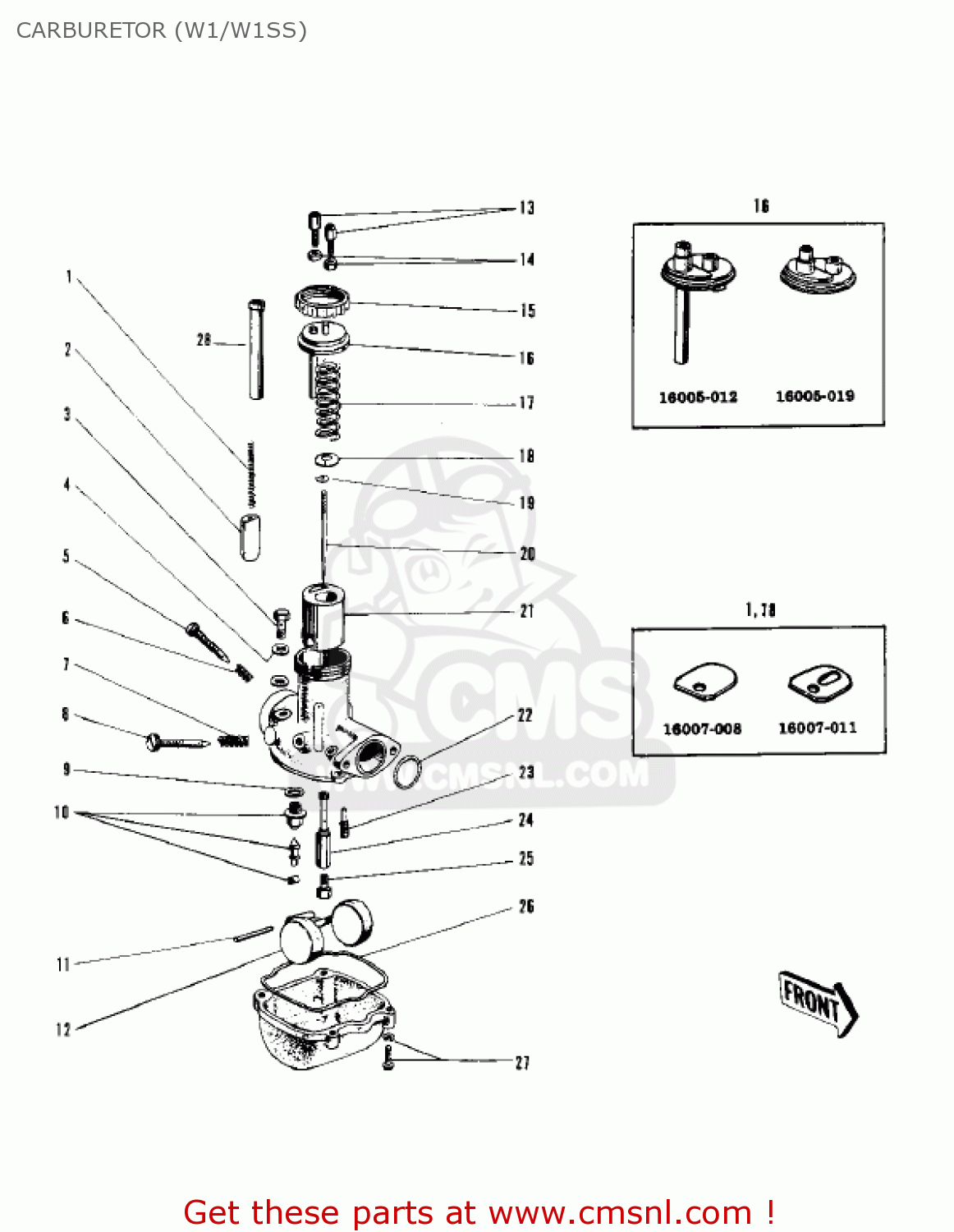

Carburetor (w1/w1ss) diagram W1SS 1968 USA CANADA
CARBURETOR (W1/W1SS) W1SS 1968 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
?
16001057
ref: ?
Includes items 1 - 2
CARBURETOR ASSY
€ 101.50
1
16040003
ref: 1
AIR SHUTTER SPRING
€ 3.00
2
16041003
ref: 2
AIR SHUTTER
€ 80.00
3
92060006
ref: 3
WHITWORTH THREAD
BOLT,BANJO
€ 24.50
3
92060011
ref: 3
METRIC THREAD
BOLT - BANJO
€ 10.00
4
110091146
ref: 4
GASKET,10.2X15X1.5 (NAS)
€ 2.00
5
16014008
ref: 5
PILOT AIR ADJUSTING SCREW
€ 11.00
6
16022010
ref: 6
SPRING,THROTTLE ADJST
€ 4.50
7
16022005
ref: 7
SPRING-THR STOP SCREW
€ 5.00
8
16021007
ref: 8
THROTTLE STOP SCREW
€ 12.50
9
16029005
ref: 9
WASHER-FLOAT VLV SEAT
€ 1.00
10
16030006
ref: 10
VALVE-FLOAT
€ 17.50
11
16032003
ref: 11
FLOAT PIN
€ 4.00
12
16031009
ref: 12
FLOAT
€ 19.00
13
16002002
ref: 13
ADJUSTER-CABLE,STARTE
€ 7.50
14
16003004
ref: 14
NUT-CABLE ADJUST LOCK
€ 4.00
15
16004007
ref: 15
WHITWORTH THREAD
MIXING CHAMBER CAP
€ 17.50
15
16004012
ref: 15
METRIC THREAD
MIXING CHAMBER CAP
€ 17.50
16
16005012
ref: 16
WHEN EXH USE 16005-0
MIXING CHAMBER TOP
€ 9.00
16
16005019
ref: 16
MIXING CHAMBER TOP
€ 28.50
17
16006009
ref: 17
THROTTLE VALVE SPRING
€ 7.50
18
16007011
ref: 18
WHN EXH USE 16007-01
THROTTLE VALVE SPRING SEAT
€ 6.00
18
16007011
ref: 18
THROTTLE VALVE SPRING SEAT
€ 6.00
19
16008010
ref: 19
CLAMP,E-TYPE
€ 4.50
20
16009017
ref: 20
5L1
JET NEEDLE 5L1
€ 6.00
21
16025017
ref: 21
CA2.5
THROTTLE VALVE,CA2.0
€ 78.00
22
16038006
ref: 22
'O' RING-MANIFOLD
€ 1.50
23
92064007
ref: 23
#50
JET,PILOT,#50
€ 17.50
24
16017021
ref: 24
P-O
JET,NEEDLE,#P-O
€ 36.00
25
92063039
ref: 25
S.T.D.
JET,MAIN,#440A
€ 12.50
25
92063037
ref: 25
W1, W1SS OPTION
JET,MAIN,#420A
€ 14.00
25
92063038
ref: 25
W1, W1SS OPTION
JET,MAIN,#430A
€ 10.00
25
92063040
ref: 25
W1, W1SS OPTION
JET,MAIN,#450A
€ 20.50
25
92063059
ref: 25
W1, W1SS OPTION
JET,MAIN,#460
€ 20.50
26
16019009
ref: 26
GASKET,FLOAT CHAMBER
€ 20.50
27
16033007
ref: 27
SCREW-FLOAT CHAMBER
€ 0.50
27
16033011
ref: 27
I.S.O. THREAD
SCREW,FLOAT CAMBER
€ 0.50
28
16045002
ref: 28
NOT REQUIRED FOR 160
GUIDE-AIR SHUTTER
€ 2.50
