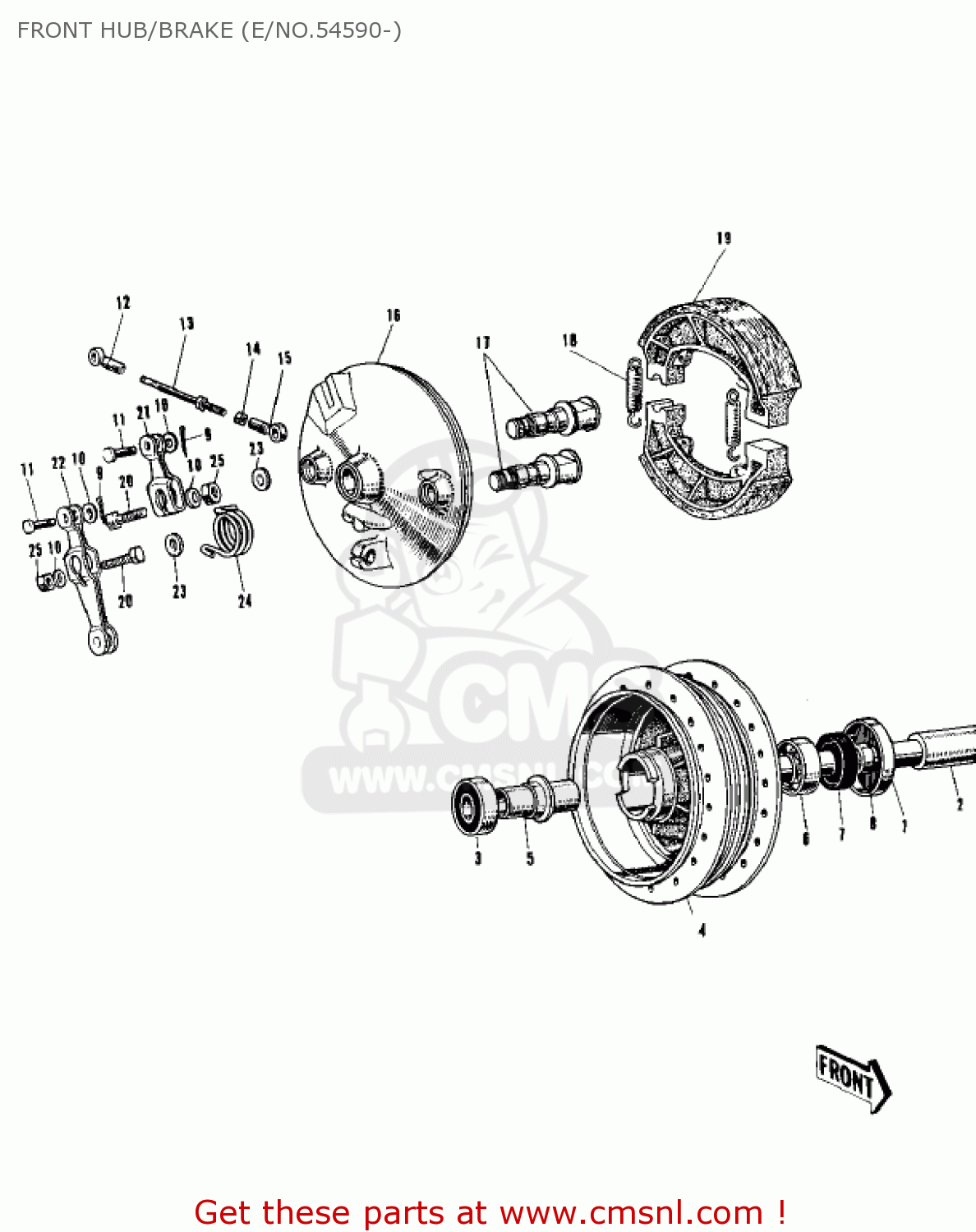

FRONT HUB/BRAKE (E/NO.54590-)

ref

part #

description

quantity

1

41042005
ref: 1

DUST SHIELD-FRONT HUB

€ 3.00

2

41068020
ref: 2

AXLE-FRONT

€ 21.00

?

41034013
ref: ?
Includes items 3 - 7

DRUM ASSY-FRONT BRAKE

€ 100.00

3

601B6303Z
ref: 3

BEARING-BALL,#6303ZC3

€ 16.50

5

41039015
ref: 5
L=57 M/M

SPACER-FR HUB BEARING

€ 11.50

6

601B6303
ref: 6

BEARING-BALL,#6303C3

€ 22.00

7

654A254708
ref: 7

OIL SEAL-FRONT AXLE

€ 16.00

8

41069009
ref: 8

COLLAR-AXLE OIL SEAL

€ 7.00

?

41035022
ref: ?
Includes items 9 - 2

FRONT BRAKE PANEL ASSEMBLY

€ 618.00

9

550D1210
ref: 9

PIN-COTTER,1.2X10

€ 1.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

41055003
ref: 11

PIN

€ 5.00

12

41058003
ref: 12

ROD END-BRK CONNECT B

€ 5.50

12

41058009
ref: 12
I.S.O. THREAD

RODEND-BRAKE

€ 12.00

13

41057003
ref: 13

BRAKE CAM LEVER CONNECTING ROD

€ 42.50

13

41057011
ref: 13
I.S.O. THREAD

ROD-BRK CAM LEV CONCT

€ 10.50

14

311B0500
ref: 14

NUT-HEX

€ 0.50

14

311B0500
ref: 14
I.S.O. THREAD

NUT-HEX

€ 0.50

15

41058002
ref: 15

ROD END-BRK CONNECT A

€ 11.00

15

41058008
ref: 15
I.S.O. THREAD

RODEND-BRAKE

€ 12.00

17

41050007
ref: 17

CAM SHAFT-FRONT BRAKE

€ 33.50

18

41049012
ref: 18

SPRING, BRKE SHOE

€ 5.50

19

41048007
ref: 19

SHOE-BRAKE (MCA)

€ 31.00

20

112G0630
ref: 20

BOLT-UPSET

€ 1.00

21

41053012
ref: 21

LEVER-BRAKE CAM

€ 18.50

22

41053011
ref: 22

LEVER-BRAKE CAM

€ 26.50

23

41051001
ref: 23

DUST SHIELD-BRAKE CAM

€ 2.50

24

41056003
ref: 24

SPRING-BRAKE CAM LEV

€ 5.50

25

311B0600
ref: 25

NUT,6MM

€ 0.50
