FOOTRESTS/STANDS/BRAKE PEDAL
W1SS 1968 USA CANADA

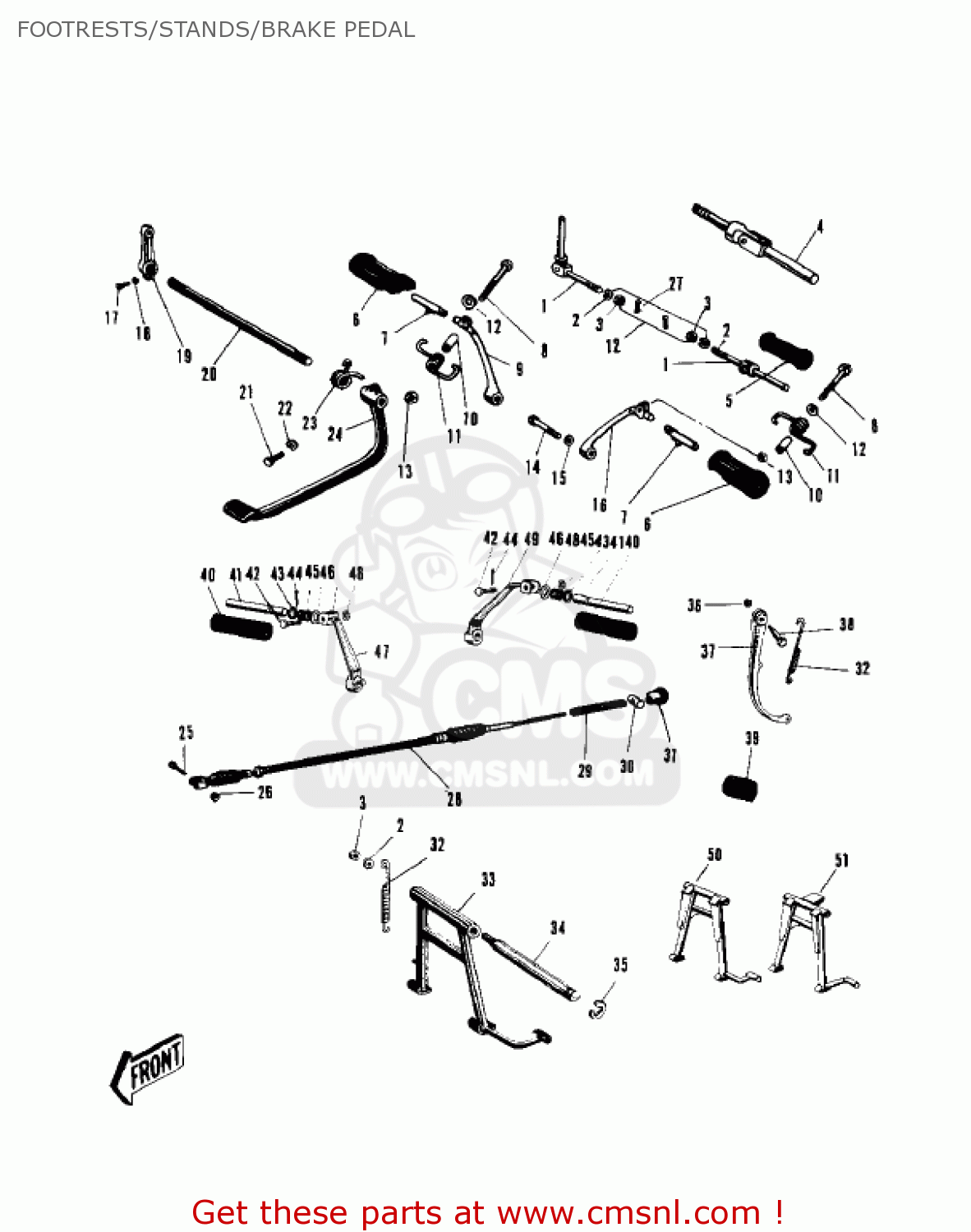

Footrests/stands/brake pedal diagram W1SS 1968 USA CANADA
FOOTRESTS/STANDS/BRAKE PEDAL W1SS 1968 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
34027007
ref: 1
BAR-R.H REAR FOOTLEST
€ 7.00
1
34027007
ref: 1
BAR-R.H REAR FOOTLEST
€ 7.00
2
461F1000
ref: 2
WASHER-SPRING,10MM
€ 0.50
3
314B1000
ref: 3
NUT,10MM
€ 0.50
4
34027008
ref: 4
FOOTREST,REAR,LH
€ 38.00
5
92076009
ref: 5
RUBBER-REAR FOOTREST
€ 2.00
6
92076005
ref: 6
USE FOR 34003-007 &
DAMPER,STEP
€ 10.00
7
34005001
ref: 7
FOLDING FOOTREST PEG
€ 13.50
8
920011182
ref: 8
BOLT,10X45
€ 6.00
9
34003007
ref: 9
WHN EXH USE 34003-01
FOOTREST BAR,RH
€ 33.50
10
92027016
ref: 10
FOOTREST FOLD COLLAR
€ 6.50
11
34006001
ref: 11
FOOTREST FOLDING SPRING
€ 3.00
12
920221564
ref: 12
WASHER
€ 2.50
13
311B0800
ref: 13
NUT,8MM
€ 0.50
14
113B1455
ref: 14
BOLT HEX HEAD 14X55
€ 6.00
15
461F1400
ref: 15
WASHER-SPRING,14MM
€ 0.50
16
34003008
ref: 16
WHN EXH USE 34003-01
FOOTREST BAR,LH
€ 33.50
17
112G0640
ref: 17
BOLT-UPSET,6X40
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
43003003
ref: 19
REAR BRAKE LEVER
€ 162.50
20
43004004
ref: 20
BRAKE PEDAL SHAFT
€ 130.00
21
92001044
ref: 21
BOLT,BRAKE PEDAL
€ 3.00
22
461F0800
ref: 22
WASHER-SPRING,8MM
€ 0.50
23
43005010
ref: 23
SPRING-BRAKE PEDAL
€ 2.00
24
43001023
ref: 24
PEDAL-BRAKE
€ 25.00
25
92043034
ref: 25
PIN-R BRK CABLE JOINT
€ 7.00
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
550D2015
ref: 27
PIN-COTTER,2.0X15
€ 1.00
28
54022004
ref: 28
CABLE-BRAKE,RR
€ 25.50
29
54025001
ref: 29
BRAKE ROD SPRING
€ 4.50
30
92043053
ref: 30
PIN,BRAKE ROD
€ 6.50
31
92015017
ref: 31
NUT-BRAKE ROD ADJUST
€ 11.50
32
34023008
ref: 32
SPRING-STAND
€ 2.00
33
34011026
ref: 33
STAND
€ 25.00
34
34019010
ref: 34
SHAFT-MAIN STAND
€ 10.50
35
482K0300
ref: 35
CIRCLIP,15MM
€ 2.50
36
315B1000
ref: 36
NUT,10MM
€ 0.50
37
34024018
ref: 37
STAND-SIDE
€ 72.50
38
92003024
ref: 38
BOLT,SIDE STAND
€ 9.50
39
92075031
ref: 39
DAMPER RUBB-SIDE STND
€ 3.00
40
92076010
ref: 40
RUBBER-FOOTREST
€ 6.00
41
34005004
ref: 41
FOLDING FOOTREST PEG
€ 18.50
42
92043037
ref: 42
STEERING FIXING PIN
€ 8.00
43
480J1600
ref: 43
CIRCLIP-TYPE-C,16MM
€ 2.50
44
550D2015
ref: 44
PIN-COTTER,2.0X15
€ 1.00
45
34006002
ref: 45
SPRING-FOOTREST PEG
€ 3.00
46
92022049
ref: 46
WASHER-FOLDING PEG
€ 2.00
47
34003016
ref: 47
FOOTREST BAR,RH
€ 67.50
48
410B0800
ref: 48
WASHER-PLAIN-SMALL,8M
€ 0.50
49
34003017
ref: 49
FOOTREST BAR,LH
€ 49.50
50
34011020
ref: 50
MAIN STAND
€ 175.50
51
34011021
ref: 51
MAIN STAND
€ 100.50
