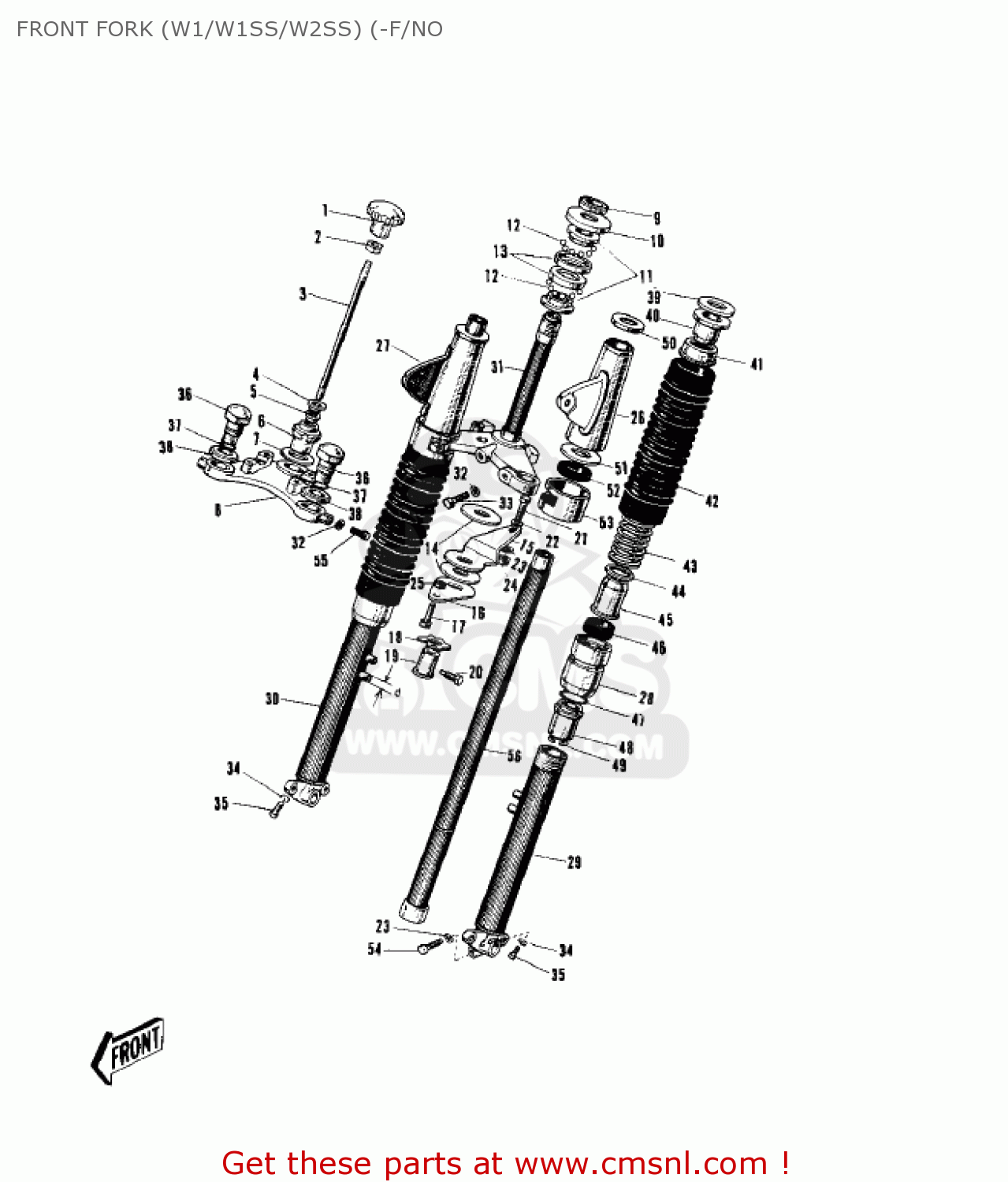

FRONT FORK (W1/W1SS/W2SS) (-F/NO

ref

part #

description

quantity

1

46101001
ref: 1

KNOB-STEERING DAMPER

€ 3.00

2

92016001
ref: 2

NUT-STEERING DAMP LCK

€ 1.00

3

46102002
ref: 3

STEERING DAMPER ROD

€ 12.50

4

46108001
ref: 4

WASHER-STRNG DAMP NUT

€ 1.00

5

46103001
ref: 5

BUSH-STRNG DAMPER ROD

€ 2.00

6

92090011
ref: 6

NUT-STEERING STEM

€ 6.50

7

92097002
ref: 7

STEERING STEM WASHER

€ 17.50

8

44039020
ref: 8

HEAD-STEERING STEM

€ 63.50

9

92090010
ref: 9

STEERING STEM LOCK NUT

€ 17.50

10

46098007
ref: 10

CAP-STEERING STEM

€ 1.00

11

92047007
ref: 11

STEERING STEM BEARING CONE

€ 17.50

12

600A0800
ref: 12

BALL-STEEL,1/4

€ 0.50

13

92048007
ref: 13

RACE-STRNG STEM BERNG

€ 3.50

14

46104002
ref: 14

STEERING DAMPER FRICTION DISC

€ 14.50

15

46105002
ref: 15

STEERING DAMPER STOPPER

€ 27.00

16

46106002
ref: 16

STEERING DAMPER DISC,STEEL

€ 19.00

17

112G0625
ref: 17
WHN EXH USE 110B0625

BOLT-UPSET,6X25

€ 3.50

17

112G0625
ref: 17

BOLT-UPSET,6X25

€ 3.50

18

46124006
ref: 18

SPRING-STEERING DAMP

€ 8.50

19

46125002
ref: 19

STEERING DAMPER SLEEVE

€ 45.50

20

92001042
ref: 20

BOLT,STEERING DAMPER SLEEVE

€ 4.50

21

115G0818
ref: 21

BOLT SMALL-UPSET

€ 2.00

22

410B0800
ref: 22

WASHER-PLAIN-SMALL,8M

€ 0.50

23

461F0800
ref: 23

WASHER-SPRING,8MM

€ 0.50

24

311B0800
ref: 24

NUT,8MM

€ 0.50

25

311B0800
ref: 25

NUT,8MM

€ 0.50

?

44004013
ref: ?
Includes items 26 -

FRONT FORK ASSEMBLY

€ 752.00

?

44001033
ref: ?
Includes items 26 -

FRONT FORK ASSY

€ 440.50

26

44033019
ref: 26

FORK COVER,LH

€ 197.00

27

44034018
ref: 27

FORK COVER,RH

€ 167.00

28

44007014
ref: 28

FORK OUTER TUBE NUT

€ 83.00

29

44005018
ref: 29
WHN EXH USE 44005-01

TUBE,OUTER,LH

€ 178.00

29

44005019
ref: 29

FORK OUTER TUBE,LH

€ 225.00

30

44006017
ref: 30
WHN EXH USE 46006-01

FORK OUTER TUBE,RH

€ 295.00

30

44006017
ref: 30

FORK OUTER TUBE,RH

€ 295.00

31

4403701810
ref: 31

STEM-STEERING,BLACK

€ 117.50

32

461F1000
ref: 32

WASHER-SPRING,10MM

€ 0.50

33

113G1028
ref: 33

BOLT,HEX HEAD,10X28

€ 4.50

34

44045002
ref: 34

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

35

220B0408
ref: 35

SCREW-PAN-CROS

€ 0.50

35

220B0408
ref: 35
I.S.O. THREAD

SCREW-PAN-CROS

€ 0.50

36

44041025
ref: 36

BOLT,FORK FITTING

€ 42.50

37

44046013
ref: 37

'O'RING,FORK FIT BOLT

€ 3.50

38

44043028
ref: 38

FORK FITTING BOLT WASHER

€ 17.50

39

44032002
ref: 39

FORK COVER WASHER

€ 3.00

40

44028014
ref: 40

SPRING GUIDE

€ 19.00

41

44035002
ref: 41

FORK BOOT HOLDER,UPPER

€ 17.50

42

44027009
ref: 42

FORK SPRING,DUST SHIELD

€ 125.00

43

44026017
ref: 43

FORK SPRING

€ 58.00

44

44029008
ref: 44

FORK SPRING GUIDE WASHER

€ 12.50

45

44010013
ref: 45

FORK DUST SHIELD

€ 20.50

46

44009020
ref: 46

OIL SEAL,FORK

€ 34.00

47

44046014
ref: 47

'O' RING-INNER TUBE

€ 4.00

48

44015010
ref: 48

FORK INNER TUBE GUIDE

€ 11.00

49

44044007
ref: 49

TUBE GUIDE CIRCLIP,INNER

€ 6.00

50

44032004
ref: 50

FORK COVER CAP

€ 9.00

51

44032003
ref: 51

FORK COVER WASHER

€ 19.00

52

44045026
ref: 52

FORK COVER GASKET

€ 4.50

53

44030007
ref: 53

FORK COVER GUIDE

€ 6.00

54

44041017
ref: 54

BOLT-FRNT AXLE PINCH

€ 3.00

55

113B1012
ref: 55

BOLT HEX HEAD 10X12

€ 1.00

56

44013014
ref: 56

TUBE-FORK INNER

€ 70.00
