IGNITION/GENERATOR/REGULATOR

W1SS 1968 USA CANADA

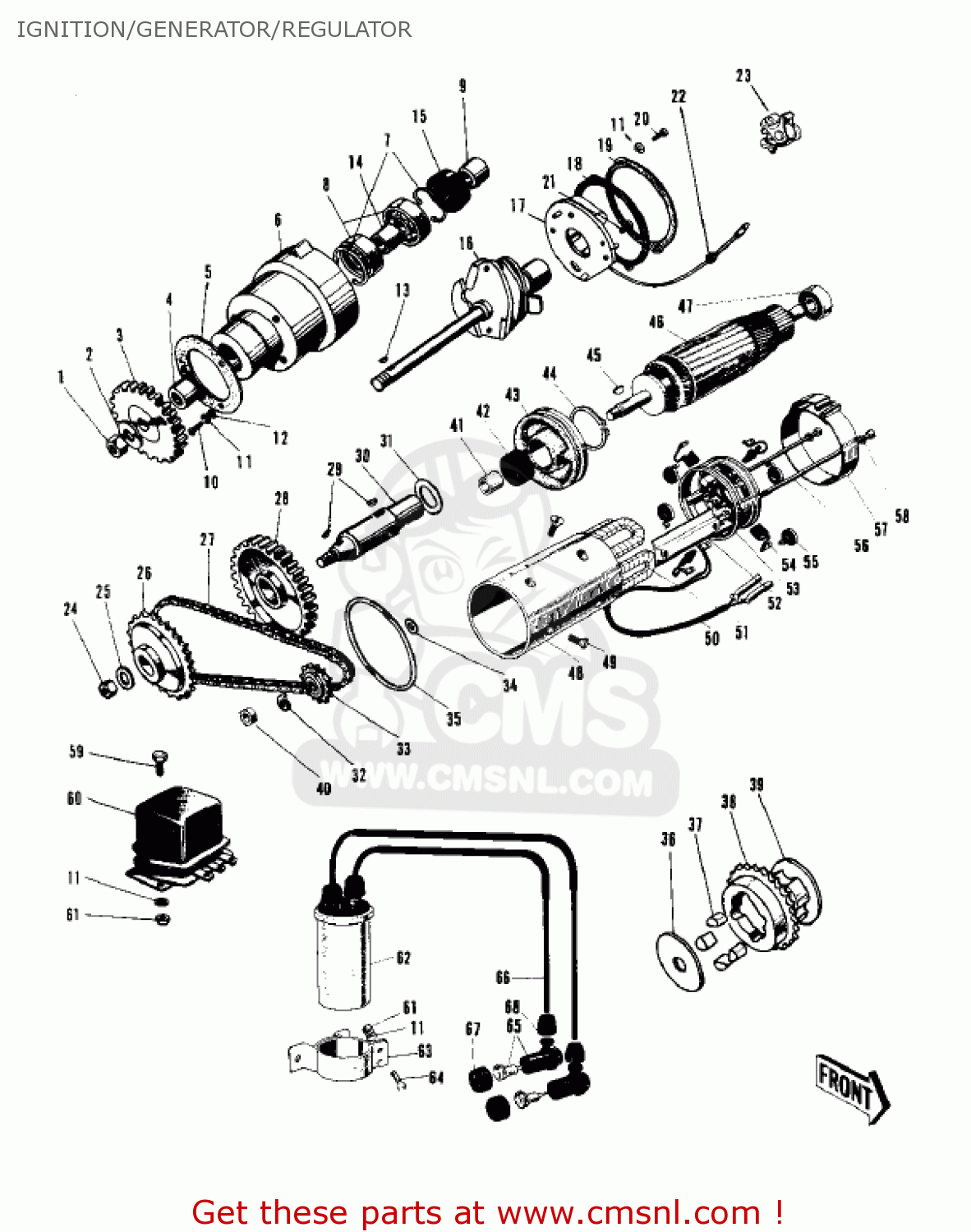

Ignition/generator/regulator diagram W1SS 1968 USA CANADA

IGNITION/GENERATOR/REGULATOR W1SS 1968 USA CANADA
IGNITION/GENERATOR/REGULATOR W1SS 1968 USA CANADA
IGNITION/GENERATOR/REGULATOR W1SS 1968 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
92017001
ref: 1
BREAKER GEAR NUT
€ 1.50
2
420B1070
ref: 2
WASHER, LOCK, 10MM
€ 2.00
3
21145002
ref: 3
WHN EXH USE 21445-00
CONTACT BREAKER GEAR
€ 259.00
3
21145002
ref: 3
CONTACT BREAKER GEAR
€ 259.00
4
92027076
ref: 4
L=6 M/M
BREAKER COLLAR,C
€ 7.50
5
21138001
ref: 5
BREAKER CASE GASKET
€ 4.50
6
21136001
ref: 6
CONTACT BREAKER CASE
€ 59.50
7
481J3000
ref: 7
CIRCLIP-TYPE-C,30MM
481J3000
€ 1.00
8
601B6200
ref: 8
FOR E/NO. W1E 50774
BEARING-BALL,#6200C3
601B6200
€ 10.50
8
92045011
ref: 8
BEARING,#6200VV
92045011
€ 8.00
9
92027074
ref: 9
L=8.7 M/M
BREAKER COLLAR,A
€ 17.50
10
220B0622
ref: 10
SCREW-PAN HEAD,6X22
220B0622
€ 2.00
11
461F0600
ref: 11
WASHER-SPRING,6MM
461F0600
€ 0.50
12
410B0600
ref: 12
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
13
92038011
ref: 13
KEY,WOODRUFF
€ 1.50
14
92027075
ref: 14
L=11.5 M/M
BREAKER COLLAR
€ 6.00
15
92049013
ref: 15
OIL SEAL,SB18307
92049013
€ 8.50
16
21148001
ref: 16
GOVERNOR
€ 15.00
17
21134002
ref: 17
BREAKER-CONTACT
€ 23.50
18
21139001
ref: 18
GASKET,BREAKER CASE C (MCA)
21139001
€ 2.50
19
21137001
ref: 19
COVER,BREAKER CASE
€ 4.50
20
220B0612
ref: 20
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
20
220B0612
ref: 20
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
21
220B0508
ref: 21
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
21
220B0508
ref: 21
I.S.O. THREAD
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
22
92071034
ref: 22
BREAKER CORD GROMMET
€ 1.50
23
21082008
ref: 23
ARM,CONTACT BREAKER
21082008
€ 67.50
24
313G1200
ref: 24
NUT 12MM
€ 1.00
24
314G1200A
ref: 24
I.S.O. THREAD
NUT,12MM
€ 2.50
25
410B1200
ref: 25
WASHER-PLAIN-SMALL,12
410B1200
€ 0.50
26
21054002
ref: 26
SPROCKET IDLE SHAFT
€ 139.00
27
21070002
ref: 27
WHN EXH USE 21070-00
CHAIN-DYNAMO DRIVE
€ 31.50
27
21070002
ref: 27
CHAIN-DYNAMO DRIVE
€ 31.50
?
12058001
ref: ?
Includes items 28 -
IDLE GEAR ASSEMBLY
€ 434.00
29
92038010
ref: 29
KEY,WOODRUFF
€ 4.50
31
92025022
ref: 31
IDLE SHAFT SHIM,2.2MM
€ 9.00
31
92025023
ref: 31
IDLE SHAFT SHIM,2.3MM
€ 9.00
31
92025024
ref: 31
IDLE SHAFT SHIM,2.4MM
€ 9.00
31
92025025
ref: 31
IDLE SHAFT SHIM,2.6MM
€ 9.00
31
92025026
ref: 31
IDLE SHAFT SHIM,2.6MM
€ 9.00
31
92025027
ref: 31
IDLE SHAFT SHIM,2.7MM
€ 9.00
31
92025028
ref: 31
IDLE SHAFT SHIM,2.8MM
€ 9.00
32
92030003
ref: 32
WASHER,LOCK
€ 2.50
33
21068001
ref: 33
SPROCKET DYNAMO
€ 115.50
34
21071001
ref: 34
SPROCKET SHIM,0.5MM
€ 7.50
34
21071002
ref: 34
SPROCKET SHIM,1.0MM
€ 7.50
34
21071003
ref: 34
SPROCKET SHIM,1.5MM
€ 7.50
34
21071004
ref: 34
SPROCKET SHIM,2.0MM
€ 7.50
34
21071005
ref: 34
SHIM SPROCKET 2. 5MM
€ 0.00
34
21071006
ref: 34
SHIM SPROCKET 3. OMM
€ 0.00
34
21071007
ref: 34
SPROCKET SHIM,3.5 MM
€ 4.50
35
671B2575
ref: 35
O RING
671B2575
€ 4.00
36
21057001
ref: 36
DAMPER RUBBER HOLDER PLATE
€ 6.00
37
21064001
ref: 37
SPROCKET DAMPER,RUBBER
€ 7.50
38
21054003
ref: 38
SPROCKET IDLE SHAFT
21054003
€ 203.00
39
21055004
ref: 39
IDLE SHAFT SPROCKET BODY
€ 175.00
?
21001021
ref: ?
Includes items 40 -
DYNAMO
€ 400.00
?
21001021
ref: ?
Includes items 40 -
DYNAMO
€ 400.00
40
313G1200
ref: 40
NUT 12MM
€ 1.00
40
314G1200A
ref: 40
YELLOW
NUT,12MM
€ 2.50
40
314G1200A
ref: 40
NUT,12MM
€ 2.50
?
21004005
ref: ?
Includes items 41 -
DYNAMO COVER ASSEMBLY,B
€ 97.00
45
21067001
ref: 45
DYNAMO WOODRUFF KEY
€ 6.00
46
21007008
ref: 46
WHN EXH USE 21007-00
ROTOR
€ 239.00
46
21007009
ref: 46
ROTOR
€ 125.50
?
21001021
ref: ?
Includes items 48 -
DYNAMO
€ 400.00
?
21005005
ref: ?
Includes items 53 -
DYNAMO COVER ASSEMBLY,A
€ 69.00
54
21039002
ref: 54
BRUSH,CARBOW
21039002
€ 16.50
55
21040002
ref: 55
CARBON BRUSH SPRING
21040002
€ 48.50
56
21035003
ref: 56
BOLT,DYNAMO COVER
€ 4.50
57
21036001
ref: 57
COMMUNICATOR BAND
€ 9.00
58
461F0500
ref: 58
WASHER-SPRING,5MM
461F0500
€ 0.50
59
112G0616
ref: 59
BOLT UPSET,6X16
112G0616
€ 1.00
60
21066004
ref: 60
ZR716
VOLTAGE REGULATOR
€ 108.00
60
21066009
ref: 60
ZR655
VOLTAGE REGULATOR
€ 50.50
61
311B0600
ref: 61
NUT,6MM
311B0600
€ 0.50
62
21121025
ref: 62
COIL-IGNITION
€ 30.50
63
21122002
ref: 63
IGNITION COIL CLAMP
€ 11.00
64
112B0614
ref: 64
BOLT-UPSET 6X14
112B0614
€ 2.50
65
21130016
ref: 65
WHN EXH USE 21130-00
CAP-SPARK PLUG
€ 15.00
65
21130016
ref: 65
NOTES SUPPRESSION
CAP-SPARK PLUG
€ 15.00
66
21133009
ref: 66
HIGH TENSION CORD
€ 11.00
67
21131002
ref: 67
WHN EXH USE 21131-00
GROMMET-PLUG CAP A
€ 0.50
67
21131004
ref: 67
NOTES SUPPRESSION
GROMMET,PLUG CAP
21131004
€ 6.50
68
92071517
ref: 68
WHN EXH USE 21132-00
GROMMET
92071517
€ 0.50
68
21132005
ref: 68
NOTES SUPPRESSION
GROMMET,SPARK PLUG CP
21132005
€ 2.50
