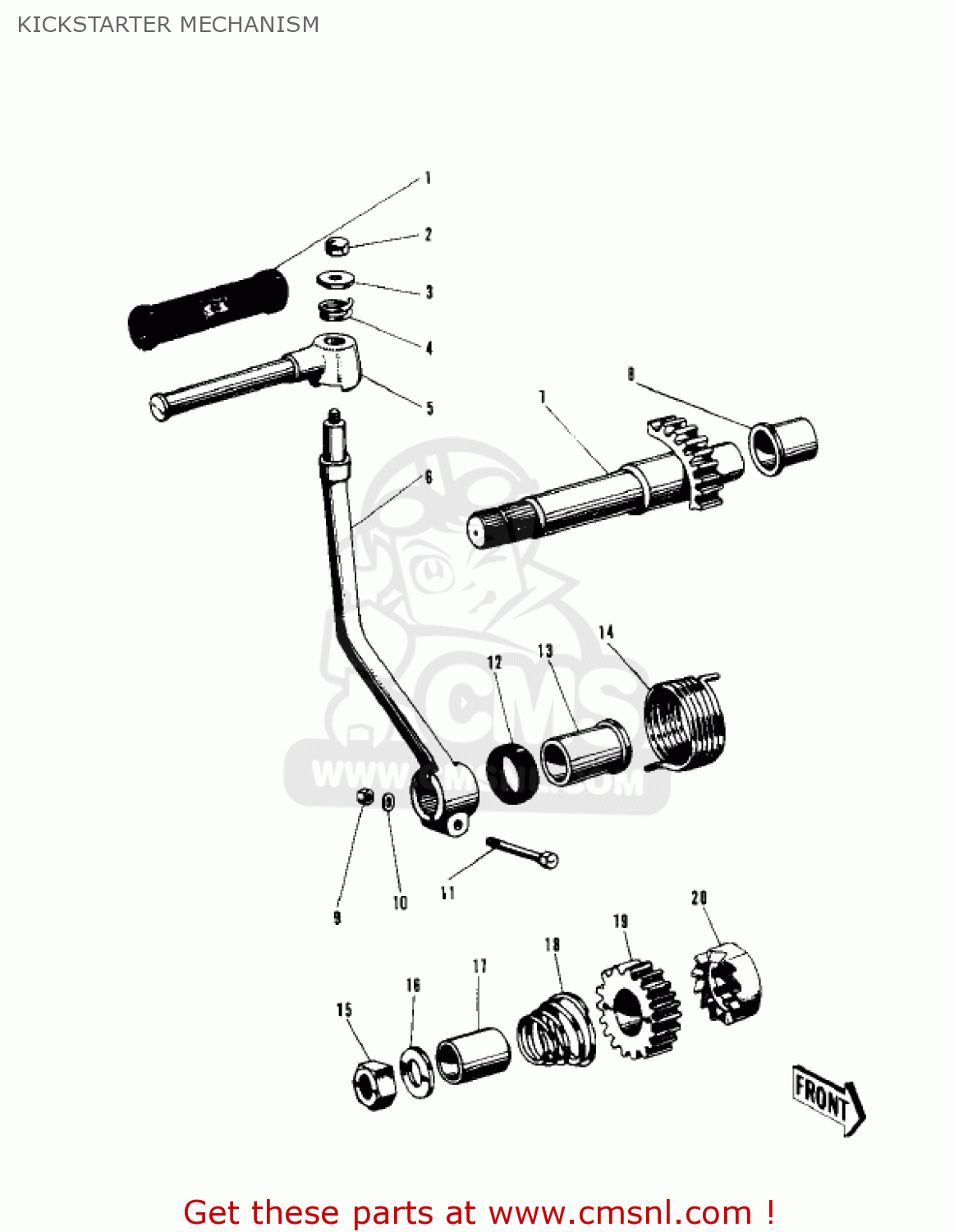

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13063004
ref: 1

DAMPER,KICK PEDAL

€ 6.00

?

13064004
ref: ?
Includes items 2 - 6

KICKSTARTER PEDAL ASSEMBLY

€ 246.50

2

92015024
ref: 2

KICK PEDAL NUT

€ 9.00

3

92022089
ref: 3

KICK PEDAL WASHER

€ 3.00

4

92081060
ref: 4

KICK PEDAL LEVER SPRING

€ 4.50

5

13060011
ref: 5

KICK PEDAL LEVER

€ 44.00

7

13066011
ref: 7
FOR M/NO. W1M 4000 A

SHAFT-KICK

€ 74.00

7

13066010
ref: 7
FOR M/NO. W2M 0001 A

SHAFT-KICKSTARTER

€ 74.00

8

92028061
ref: 8
L=19 M/M

KICKSTARTER SHAFT BUSHING,LH

€ 13.00

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

11

113N1035
ref: 11

BOLT-HEX HEAD,10X35

€ 5.00

12

92054003
ref: 12

OIL SEAL VC22345

€ 10.00

13

92028062
ref: 13
L=44 M/M

KICKSTARTER SHAFT BUSHING,RH

€ 33.00

14

92081032
ref: 14

SPRING,KICKSTARTER

€ 16.50

15

315B1600
ref: 15

NUT-HEX-FINE,16MM

€ 2.50

16

92026040
ref: 16

MAIN SHAFT THRUST WASHER

€ 19.00

17

92028049
ref: 17

RATCHET GEAR BUSHING

€ 39.00

18

92081030
ref: 18

RATCHET GEAR SPRING

€ 11.00

19

13079002
ref: 19
FOR M/NO. W1M 4000 A

GEAR-RATCHET

€ 28.50

19

13079003
ref: 19
FOR M/NO. W2M 0001 A

GEAR-RATCHET

€ 15.00

20

13078002
ref: 20

RATCHET

€ 59.50
