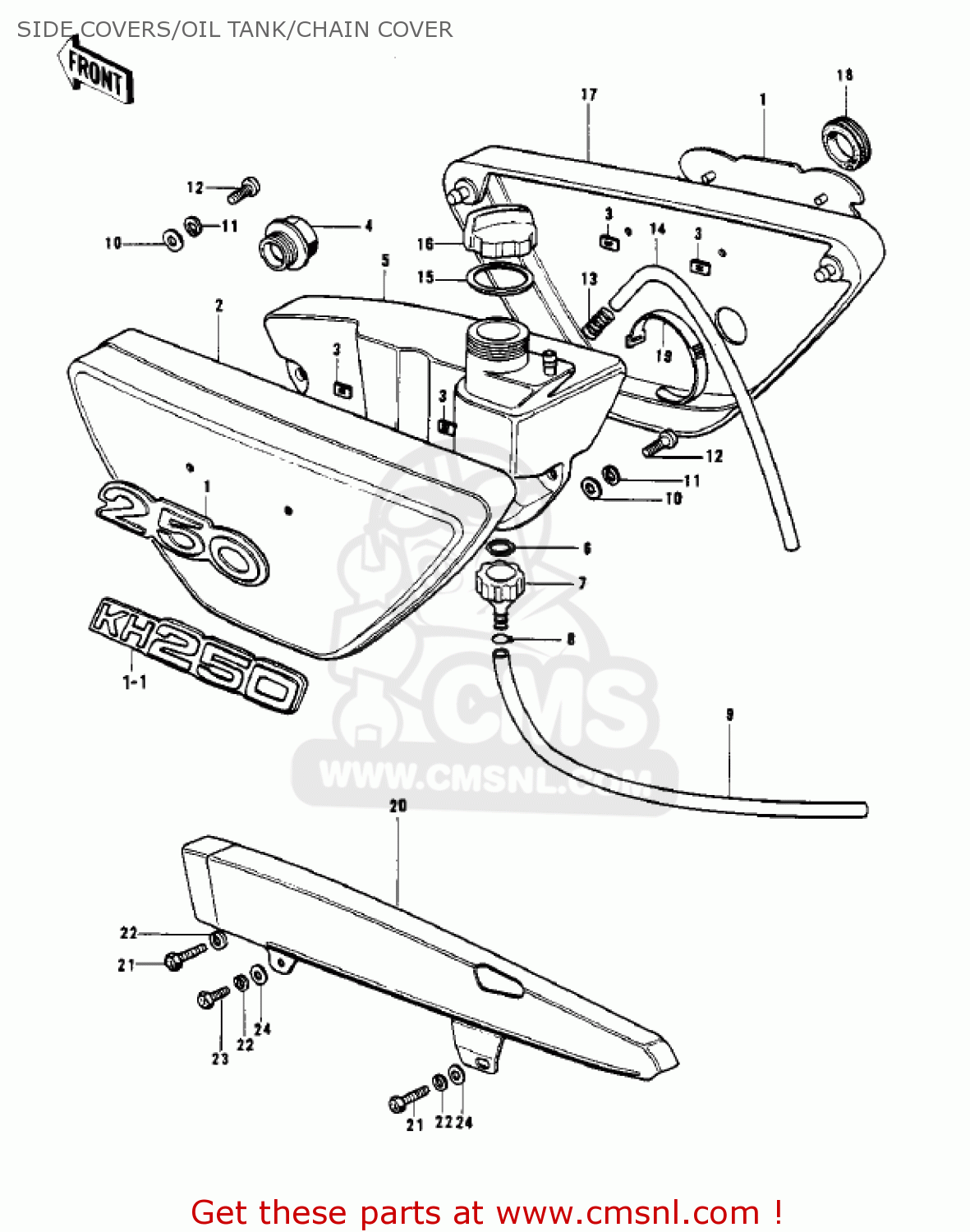

SIDE COVERS/OIL TANK/CHAIN COVER

ref

part #

description

quantity

1

56018163
ref: 1
S1-B

EMBLEM,SIDE COVER

€ 8.50

1

56018192
ref: 1
S1-C

EMBLEM,OIL TANK

€ 9.50

1-1

56018211
ref: 1-1
KH250-A5

MARK,SIDE COVER

€ 35.50

2

360010431Z
ref: 2
S1-B

COVER,L.H SIDE C.GREN

€ 50.00

2

360010432L
ref: 2
S1-C

COVER,L.H SIDE,BLUE

€ 40.00

2

360010433R
ref: 2
KH250-A5

COVER,L.H SIDE,C.RED

€ 49.00

3

92018005
ref: 3

NUT,PUSH,3MM

€ 2.00

4

52015005
ref: 4

GAUGE-OIL LEVEL

€ 6.50

5

52001040
ref: 5

TANK,OIL

€ 27.50

6

670B2015
ref: 6

O RING,15MM

€ 1.00

7

52020001
ref: 7

ELEMENT-OIL FILTER

€ 15.00

8

92037010
ref: 8

CLAMP-FUEL PIPE

€ 2.50

9

92059072
ref: 9

TUBE,4.5X9X545

€ 22.00

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

112B0614
ref: 12

BOLT-UPSET 6X14

€ 2.50

13

92037141
ref: 13
S1-C,KH250-A5

CLAMP,OIL TANK BREATH

€ 3.50

14

700Q05600
ref: 14
S1-B

TUBE-VINYL,5X600

€ 1.50

14

700Q05720
ref: 14
S1-C,KH250-A5

TUBE-VINYL,5X720

€ 1.50

15

92065085
ref: 15

GASKET,OIL TANK CAP (NAS)

€ 3.50

16

52003019
ref: 16

CAP-TANK,OIL

€ 7.00

17

360070371Z
ref: 17
S1-B

COVER,R.H SIDE C.GREN

€ 67.50

17

360070372L
ref: 17
S1-C

COVER,R.H SIDE,BLUE

€ 57.00

17

360070373R
ref: 17
KH250-A5

COVER,R.H SIDE,C.RED

€ 60.50

18

92071065
ref: 18

GROMMET,SIDE COVER,RH

€ 3.50

19

92072031
ref: 19
S1-C,KH250-A5

BAND,MIDDLE

€ 3.00

20

3601405021
ref: 20

COVER,CHAIN F.BLACK

€ 67.50

21

92001121
ref: 21

BOLT,HEX HEAD,6X14

€ 2.50

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

92001137
ref: 23

BOLT,HEX HEAD,6M/M

€ 4.00

24

92022193
ref: 24

WASHER,6.5X20X1.6,WHI

€ 3.50
