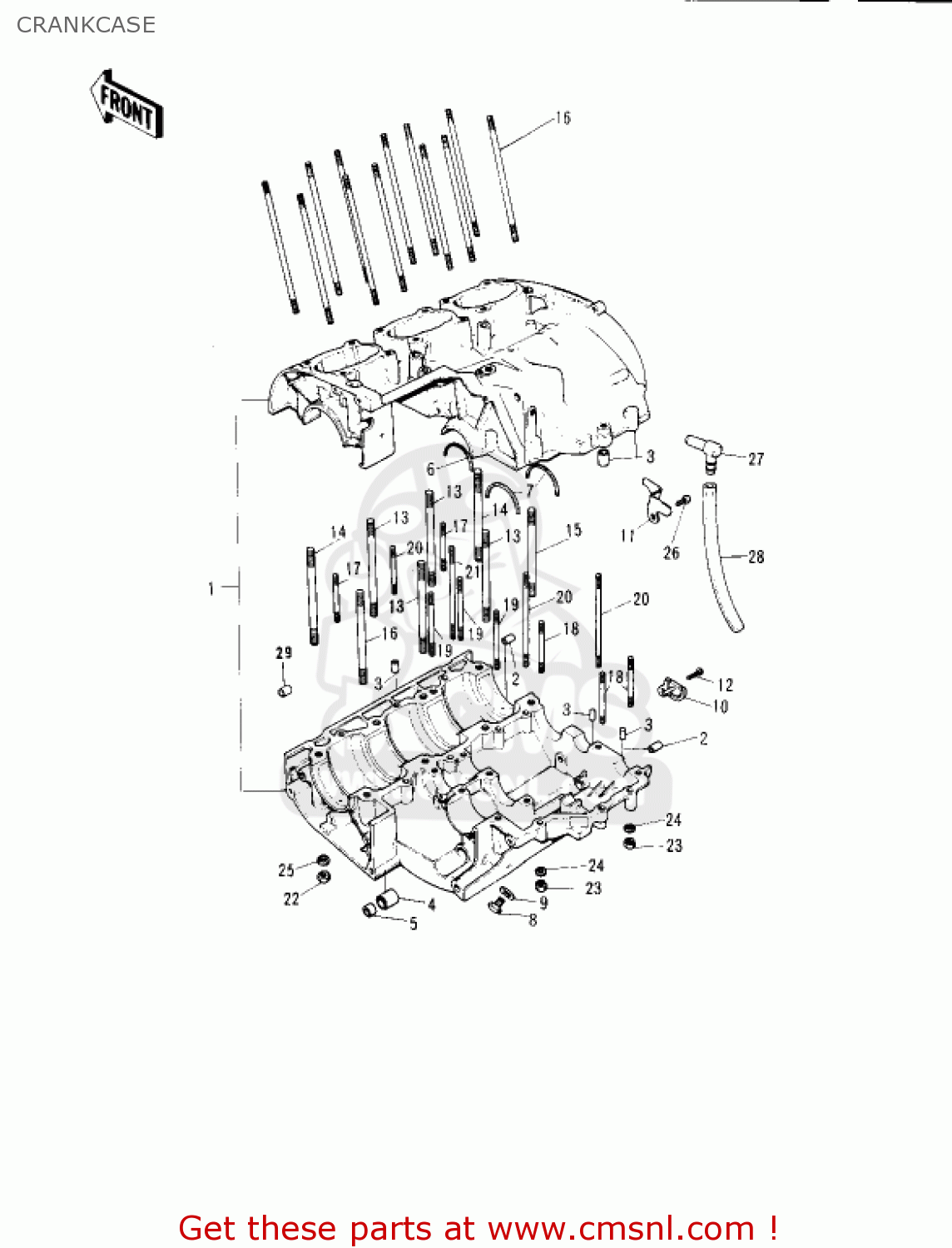

CRANKCASE

ref

part #

description

quantity

1

14001049
ref: 1
S1-A/B

CRANKCASE SET

€ 381.00

1

14001058
ref: 1
S1-C,KH250-A5

CRANKCASE SET

€ 842.50

2

920431037
ref: 2

PIN,DOWEL,10X8.2X14

€ 0.50

3

92042016
ref: 3

PIN,DOWEL,6X16

€ 3.50

4

92028071
ref: 4

BUSHING,12X20X20

€ 54.00

5

92049004
ref: 5

OIL SEAL SB12205

€ 6.00

6

14013013
ref: 6

RING-POSITION,T=1.90

€ 7.50

7

14013004
ref: 7

RING-BEARING SETTING

€ 7.00

8

92067001
ref: 8

PLUG-OIL DRAIN

€ 3.00

9

92065058
ref: 9

GASKET, 10,5X16X1 (NAS)

€ 2.50

10

14015001
ref: 10

RECEIVER-OIL

€ 3.50

11

14015003
ref: 11

RECEIVER-OIL

€ 2.00

12

221B0616
ref: 12

SCREW-CNTSNK HD,6X16

€ 0.50

13

172G1050
ref: 13
S1-A/B

STUD,10X50

€ 1.50

13

172G1055
ref: 13
S1-C,KH250-A5

STUD,10X55

€ 4.00

14

172G1070
ref: 14

STUD,10X70

€ 6.00

15

172G1080
ref: 15

STUD,10X80

€ 6.00

16

172G08115
ref: 16

STUD,8X115

€ 8.00

17

172G0622
ref: 17

STUD,6X22

€ 1.00

18

172G0635
ref: 18

STUD,6X35

€ 3.00

19

172G0650
ref: 19

STUD,6X50

€ 5.50

20

172G0650
ref: 20

STUD,6X50

€ 5.50

21

172G0665
ref: 21

STUD,6X65

€ 1.00

22

317B1000
ref: 22

NUT,10MM

€ 0.50

23

311B0600
ref: 23

NUT,6MM

€ 0.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

461F1000
ref: 25

WASHER-SPRING,10MM

€ 0.50

26

220B0610
ref: 26

SCREW-PAN HEAD,6X10

€ 2.00

27

14069003
ref: 27

BREATHER

€ 7.00

28

92059061
ref: 28

PIPE-BREATHER

€ 3.00

29

92042007
ref: 29
S1-C,KH250-A5

PIN-DOWEL

€ 4.00
