ENGINE COVERS
S1B MACH I 1974 USA CANADA

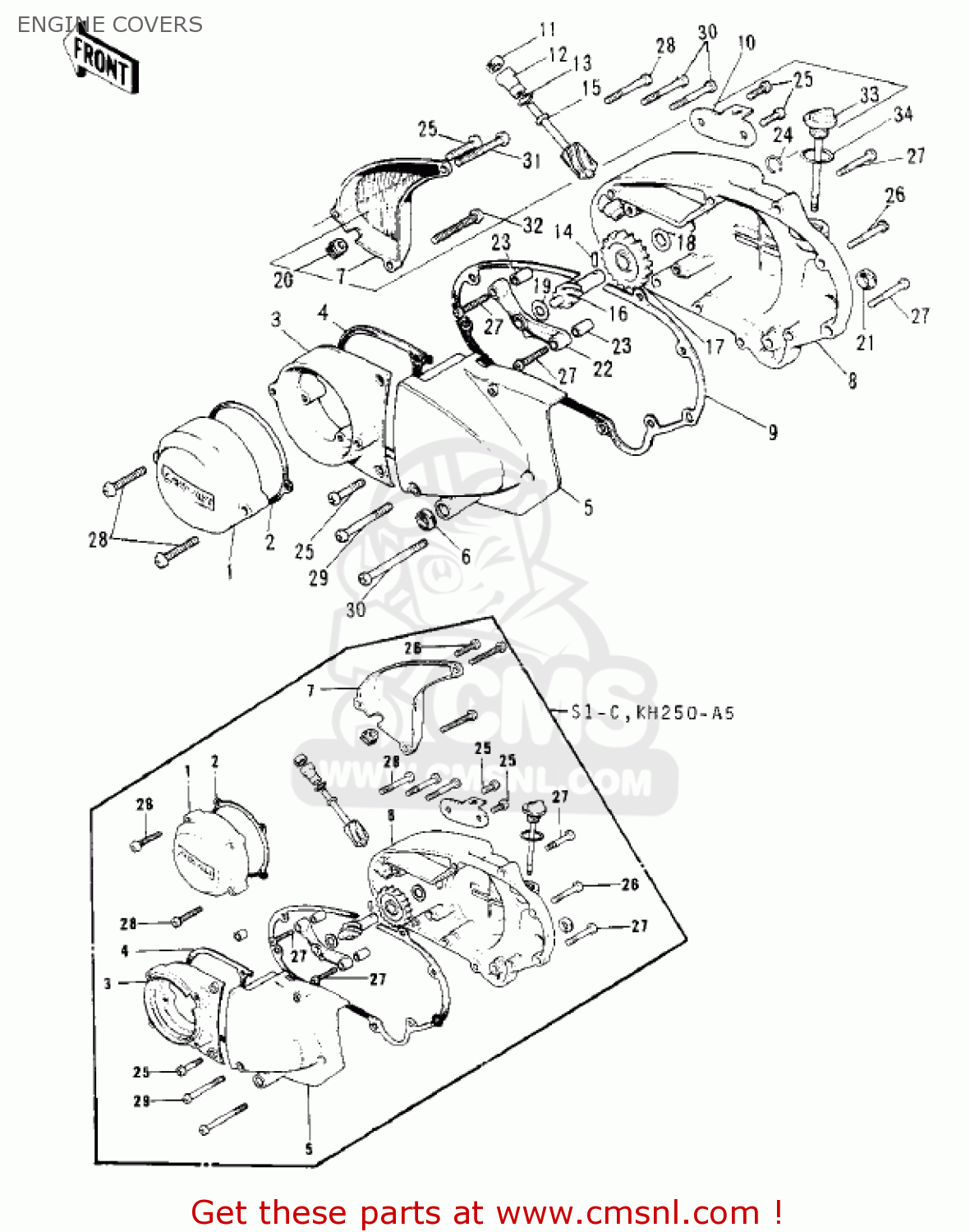

Engine covers diagram S1B MACH I 1974 USA CANADA
ENGINE COVERS S1B MACH I 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
1402701680
ref: 1
S1-A/B
CAP,BREAKER POINT,BUF
€ 77.00
1
140311030
ref: 1
S1-C,KH250-A5
COVER,GENERATOR,BUFF
€ 71.00
1
140311030
ref: 1
S1-C,KH250-A5
COVER,GENERATOR,BUFF
€ 71.00
2
14050005
ref: 2
S1-A/B
GASKET-POINT CAP (MCA)
€ 21.00
2
14050009
ref: 2
S1-C,KH250-A5
GASKET,BRK POINT CAP (MCA)
€ 10.00
3
1403108680
ref: 3
S1-A
COVER,L.H ENGINE,BUFF
€ 68.00
3
1403108680
ref: 3
S1-B
COVER,L.H ENGINE,BUFF
€ 68.00
3
1403108980
ref: 3
S1-C,KH250-A5
COVER,L.H ENG,BUFF
€ 175.00
4
14045022
ref: 4
GASKET,L.H ENG COVER (MCA)
€ 15.00
5
1402602280
ref: 5
S1-A/B
COVER,CHAIN CASE,BUFF
€ 93.00
5
1402602280
ref: 5
S1-C,KH250-A5
COVER,CHAIN CASE,BUFF
€ 93.00
6
920491249
ref: 6
S1-A/B
SEAL-OIL
€ 6.50
7
1403003080
ref: 7
COVER-CARBURETOR
€ 107.00
8
140321018
ref: 8
S1-A/B
COVER,R.H ENGINE
€ 100.00
8
140321018
ref: 8
S1-C,KH250-A5
COVER,R.H ENGINE
€ 100.00
8
140321018
ref: 8
COVER,R.H ENGINE
€ 100.00
9
14046019
ref: 9
GASKET-R.H ENGINE COV (MCA)
€ 23.50
10
14044006
ref: 10
HOLDER
€ 8.50
11
92054004
ref: 11
OIL SEAL
€ 14.50
12
92028075
ref: 12
BUSH
€ 14.50
13
92055025
ref: 13
'O' RING
€ 3.00
14
92042035
ref: 14
PIN,DOWEL,2.5X12.8
€ 2.50
15
13226005
ref: 15
SHAFT-TACHOMETER GEAR
€ 27.50
16
13224008
ref: 16
GEAR-TACHOMETER
€ 38.00
17
16085017
ref: 17
GEAR-OIL PUMP
€ 16.00
18
92026025
ref: 18
WASHER-THRUST
€ 7.00
19
92026026
ref: 19
WASHER-THRUST
€ 5.50
20
14038030
ref: 20
BOOT,ENGINE COVER,RH
€ 4.50
21
92049002
ref: 21
OIL SEAL SB16244
€ 6.00
22
14018005
ref: 22
HOLDER-TACHOMETER GR
€ 35.50
23
92042007
ref: 23
PIN-DOWEL
€ 4.00
24
92036017
ref: 24
CIRCLIP
€ 2.00
25
220B0620
ref: 25
S1-A/B
SCREW-PAN HEAD,6X20
€ 2.50
25
220B0620
ref: 25
S1-C,KH250-A5
SCREW-PAN HEAD,6X20
€ 2.50
26
220B0625
ref: 26
S1-A/B
SCREW-PAN HEAD,6X25
€ 1.50
26
220B0625
ref: 26
S1-C,KH250-A5
SCREW-PAN HEAD,6X25
€ 1.50
27
220B0630
ref: 27
S1-A/B
SCREW-PAN HEAD,6X30
€ 2.50
27
220B0630
ref: 27
S1-C,KH250-A5
SCREW-PAN HEAD,6X30
€ 2.50
28
220B0635
ref: 28
S1-A/B
SCREW-PAN HEAD,6X35
€ 1.00
28
220B0635
ref: 28
S1-C,KH250-A5
SCREW-PAN HEAD,6X35
€ 1.00
29
220B0645
ref: 29
SCREW-PAN HEAD,6X45
€ 2.50
30
220B0655
ref: 30
SCREW-PAN HEAD,6X55
€ 2.50
31
220B0690
ref: 31
SCREW-PAN HEAD,6X90
€ 3.50
32
220B06100
ref: 32
SCREW-PAN HEAD,6X100
€ 3.00
33
16115017
ref: 33
PLUG-OIL FILLER
€ 12.00
34
670B2020
ref: 34
O RING,20MM
€ 1.00
