IGNITION/GENERATOR/REGULATOR
S1B MACH I 1974 USA CANADA

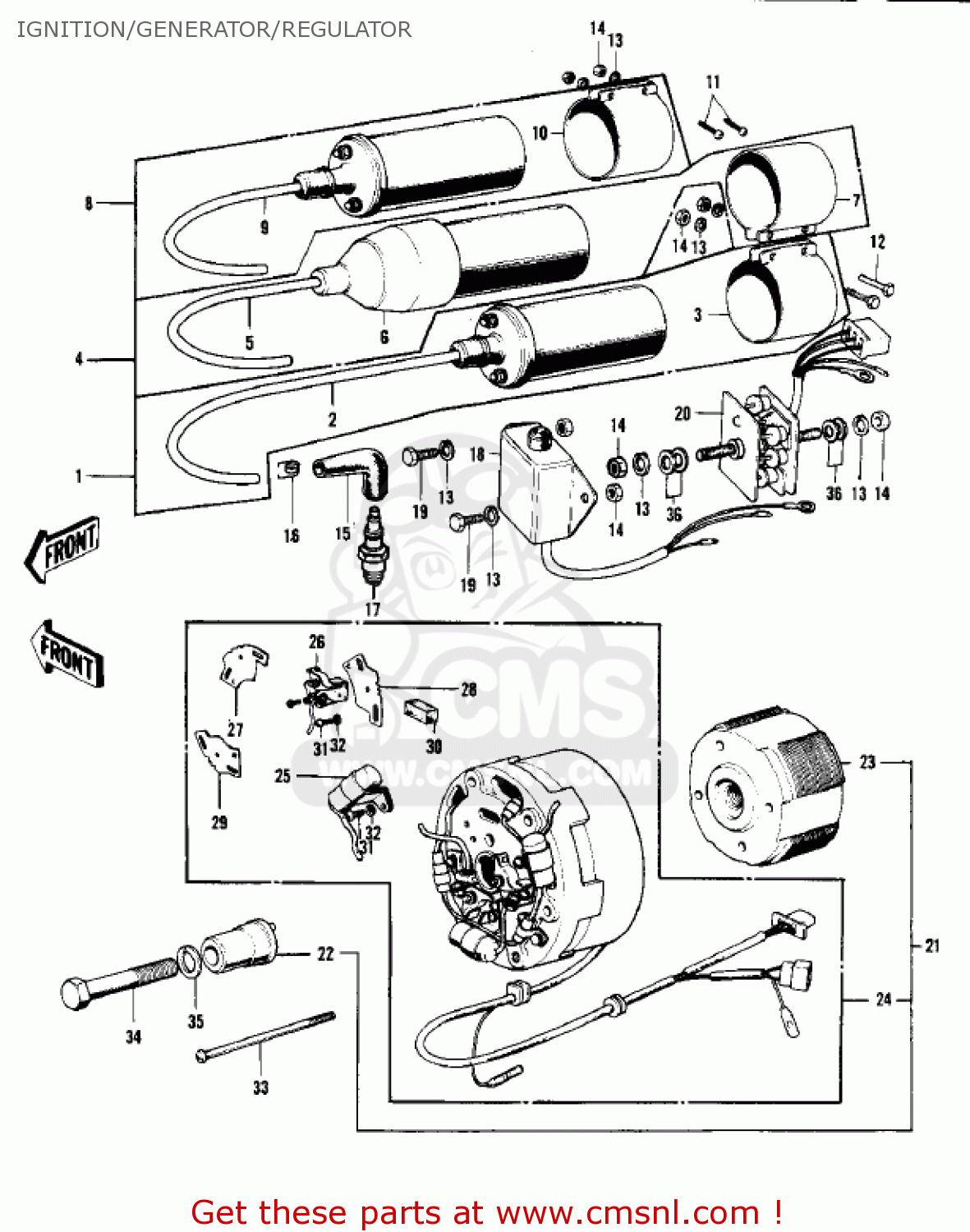

Ignition/generator/regulator diagram S1B MACH I 1974 USA CANADA
IGNITION/GENERATOR/REGULATOR S1B MACH I 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
21121051
ref: 1
COIL-IGNITION,L.H
€ 48.00
2
21133020
ref: 2
CORD-HIGH TENSION,L.H
€ 6.50
3
21126004
ref: 3
BAND-IGNITION COIL
€ 12.00
4
21121052
ref: 4
COIL-IGNITION,CENTER
€ 57.00
5
21133021
ref: 5
CORD-HIGH TENSION,CNT
€ 8.00
6
92073018
ref: 6
RUBBER CAP,IGN COIL
€ 11.50
7
21126004
ref: 7
BAND-IGNITION COIL
€ 12.00
8
21121053
ref: 8
COIL-IGNITION,R.H
€ 50.00
9
21133022
ref: 9
CORD-HIGH TENSION,R.H
€ 5.50
10
21126004
ref: 10
BAND-IGNITION COIL
€ 12.00
11
220B0640
ref: 11
SCREW-PAN HEAD,6X40
€ 2.00
11
112G0640
ref: 11
BOLT-UPSET,6X40
€ 2.50
12
112G0620
ref: 12
BOLT 6X20
€ 1.00
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
311B0600
ref: 14
NUT,6MM
€ 0.50
15
21130009
ref: 15
CAP-SPARK PLUG
€ 15.00
16
92101001
ref: 16
SPRING-SPARK PLUG CAP
€ 1.50
17
92070011A
ref: 17
S1-A/B/C
SPARK PLUG,B9HCS,B9HCS,B9HS,B9HS1
€ 1.50
17
B9HSA
ref: 17
KH250-A5
SPARK PLUG,B9HS
€ 2.50
18
21066020
ref: 18
REGULATOR-VOLTAGE
€ 270.50
19
112G0612
ref: 19
BOLT-UPSET
€ 2.50
20
21061011
ref: 20
S1-A/B
RECTIFIER
€ 113.00
20
21061029
ref: 20
S1-C
RECTIFIER
€ 241.50
20
21061029
ref: 20
KH250-A5
RECTIFIER
€ 241.50
21
21001022
ref: 21
ALTERNATOR
€ 622.50
22
21014008
ref: 22
CAM-BREAKER
€ 108.50
23
21007020
ref: 23
ROTOR
€ 187.00
24
21003016
ref: 24
STATOR ASSY
€ 465.50
25
21013026
ref: 25
CONDENSER
€ 29.50
26
21008019
ref: 26
BREAKER-CONTACT
€ 37.00
27
21156003
ref: 27
L MARK
PLATE-CNTCT BRKER,L.H
€ 18.00
28
21156004
ref: 28
C MARK
PLATE-CNTCT BRKER,CNT
€ 19.00
29
21156005
ref: 29
R MARK
PLATE-CNTCT BRKER,R.H
€ 18.00
30
21019011
ref: 30
FELT-OIL
€ 3.00
31
220B0408
ref: 31
SCREW-PAN-CROS
€ 0.50
32
461F0400
ref: 32
WASHER-SPRING,4MM
€ 0.50
33
220B0555A
ref: 33
SCREW-PAN HEAD,5X55
€ 2.00
34
114B0870
ref: 34
BOLT-HEX HEAD,8X70
€ 3.00
35
461F0800
ref: 35
WASHER-SPRING,8MM
€ 0.50
36
411B0600
ref: 36
WASHER-PLAIN,6MM
€ 0.50
