REAR HUB/BRAKE/CHAIN
S1B MACH I 1974 USA CANADA

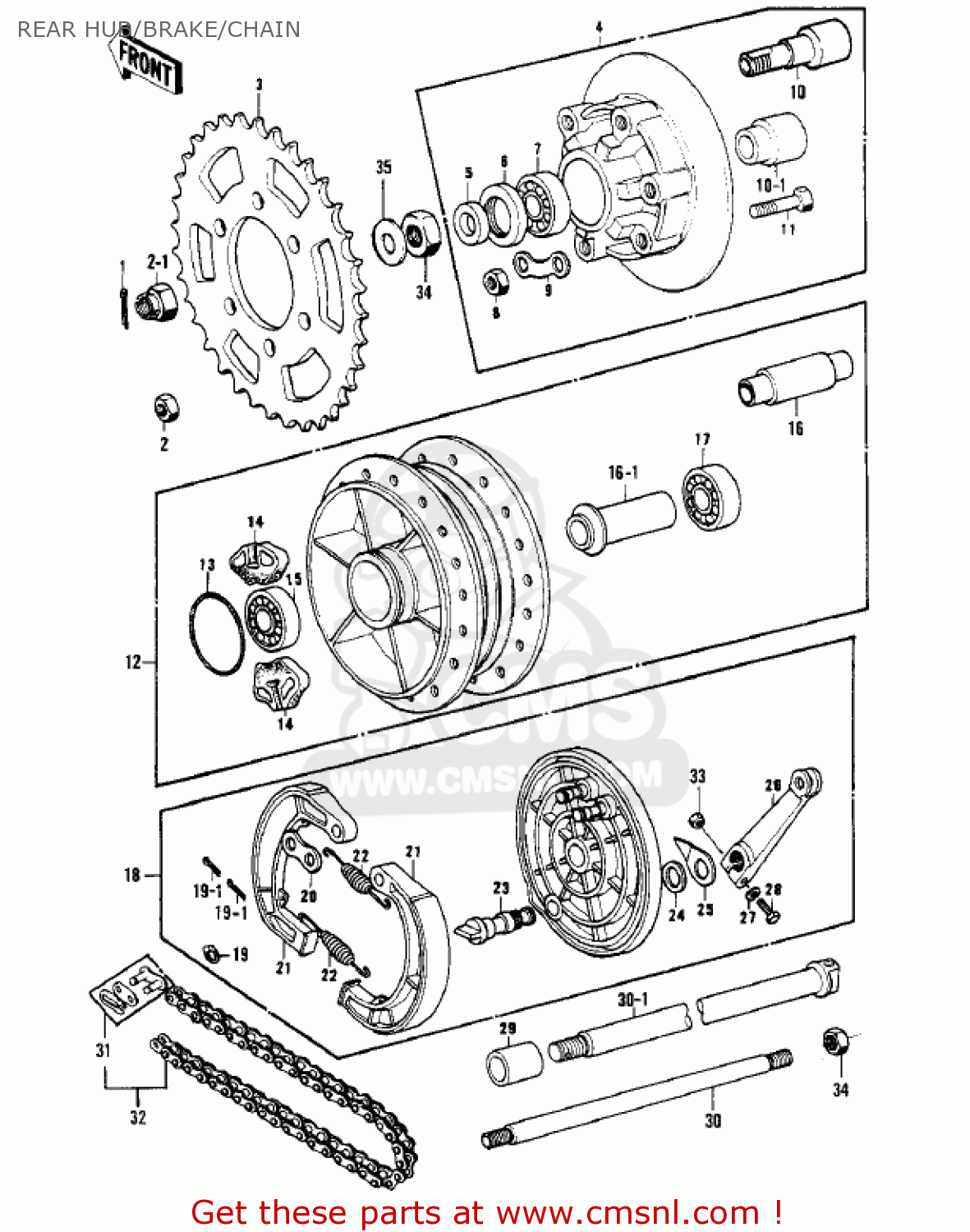

Rear hub/brake/chain diagram S1B MACH I 1974 USA CANADA
REAR HUB/BRAKE/CHAIN S1B MACH I 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
S1-B/C,KH250-A5
PIN-COTTER,4.0X35
€ 1.00
2
314B1600
ref: 2
S1-A
NUT,16MM
€ 1.50
2-1
92015055
ref: 2-1
S1-B/C,KH250-A5
NUT,16MM
€ 8.00
3
42041115
ref: 3
STD
REAR SPROCKET 48T
€ 79.00
3
42041103
ref: 3
REAR SPROCKET 46T
€ 37.50
4
42008012
ref: 4
S1-A
COUPLING ASSY-RR HUB
€ 143.00
4
42008020
ref: 4
S1-B/C,KH250-A5
COUPLING ASSY,RR BRK
€ 213.00
5
42037006
ref: 5
S1-A
COLLER-RR AXLE SLEEVE
€ 17.00
5
42037024
ref: 5
S1-B/C,KH250-A5
COLLAR,COUPLING
€ 15.50
6
92052006
ref: 6
OIL SEAL WTC35527
€ 6.50
7
601B6205
ref: 7
BEARING-BALL,#6205C3
€ 14.00
8
314B1000
ref: 8
NUT,10MM
€ 0.50
9
92088005
ref: 9
WASHER,SPROCKET LOCK
€ 4.00
10
42036006
ref: 10
S1-A
SLEEVE-REAR AXLE
€ 18.00
10-1
42036019
ref: 10-1
S1-B/C,KH250-A5
SLEEVE,COUPLING
€ 32.50
11
92003087
ref: 11
BOLT-RR SPRCKT 10X49
€ 4.00
12
42005009
ref: 12
S1-A/B/C
DRUM ASSY-REAR BRAKE
€ 331.00
12
4200504480
ref: 12
KH250-A5
DRUM ASY,RR BRK,BUFF
€ 447.00
13
671B2560
ref: 13
O RING,60MM
€ 1.50
14
42014008
ref: 14
DAMPER,RR HUB SHOCK
€ 24.50
15
601B6205
ref: 15
S1-A/B/C
BEARING-BALL,#6205C3
€ 14.00
15
601B6303
ref: 15
KH250-A5
BEARING-BALL,#6303C3
€ 24.00
16
42010008
ref: 16
S1-A/B/C
SPACER-RR HUB BEARING
€ 4.50
16-1
42010027
ref: 16-1
KH250-A5
SPACER,RR HUB BEARNG
€ 14.50
17
601B6205Z
ref: 17
S1-A/B/C
BALL BEARING,#6205ZC3
€ 24.00
17
601B6303Z
ref: 17
KH250-A5
BEARING-BALL,#6303ZC3
€ 17.50
18
4200600780
ref: 18
S1-A
PANEL ASY-RR BK,BUFF
€ 190.50
18
4200606080
ref: 18
S1-B/C
PANEL ASSY,REAR BRAKE
€ 163.50
18
4200606080
ref: 18
KH250-A5
PANEL ASSY,REAR BRAKE
€ 163.50
19
480J1400
ref: 19
S1-A/B
CIRCLIP-TYPE-C,14MM
€ 3.00
19-1
550D2025
ref: 19-1
S1-C,KH250-A5
PIN-COTTER,2.0X25
€ 2.00
20
41045007
ref: 20
S1-A/B
WASHER,BRAKE SHOE
€ 4.00
20
41045007
ref: 20
S1-C,KH250-A5
WASHER,BRAKE SHOE
€ 4.00
21
42019003
ref: 21
SHOE-REAR BRAKE (MCA)
€ 24.50
22
41049003
ref: 22
SPRING-BRAKE SHOE
€ 2.50
23
42046015
ref: 23
UNAVAILABLE IN PRICE BOOK
€ 0.00
24
41051001
ref: 24
DUST SHIELD-BRAKE CAM
€ 2.50
25
41085009
ref: 25
INDICATOR,FRONT BRAKE
€ 7.50
26
42029037
ref: 26
LEVER,REAR BRAKE CAM
€ 27.50
27
410B0600
ref: 27
WASHER-PLAIN-SMALL,6M
€ 0.50
28
112G0640
ref: 28
S1-A/B
BOLT-UPSET,6X40
€ 2.50
28
112G0625
ref: 28
S1-C,KH250-A5
BOLT-UPSET,6X25
€ 4.00
29
42032008
ref: 29
S1-A
COLLAR-REAR HUB R.H
€ 13.50
29
42032049
ref: 29
S1-B/C,KH250-A5
COLLAR,REAR AXLE
€ 6.50
30
42031033
ref: 30
S1-A
AXLE-REAR
€ 50.00
30-1
42031047
ref: 30-1
S1-B/C,KH250-A5
AXLE,REAR
€ 39.00
31
92058006
ref: 31
JOINT-DRIVE CHAIN
€ 4.00
32
92057028
ref: 32
S1-A
CHAIN ASSY,DRIVE,102L
€ 35.00
32
92057084
ref: 32
S1-B/C,KH250-A5
CHAIN ASSY,DRIVE,108L
€ 48.00
33
311B0600
ref: 33
S1-A/B
NUT,6MM
€ 0.50
34
314B1600
ref: 34
S1-A
NUT,16MM
€ 1.50
35
42046009
ref: 35
S1-A
WASHER-SLEEVE
€ 5.00
36
42045006
ref: 36
S1-A
NUT-SLEEVE
€ 7.50
