GEAR CHANGE MECHANISM
S1B MACH I 1974 USA CANADA

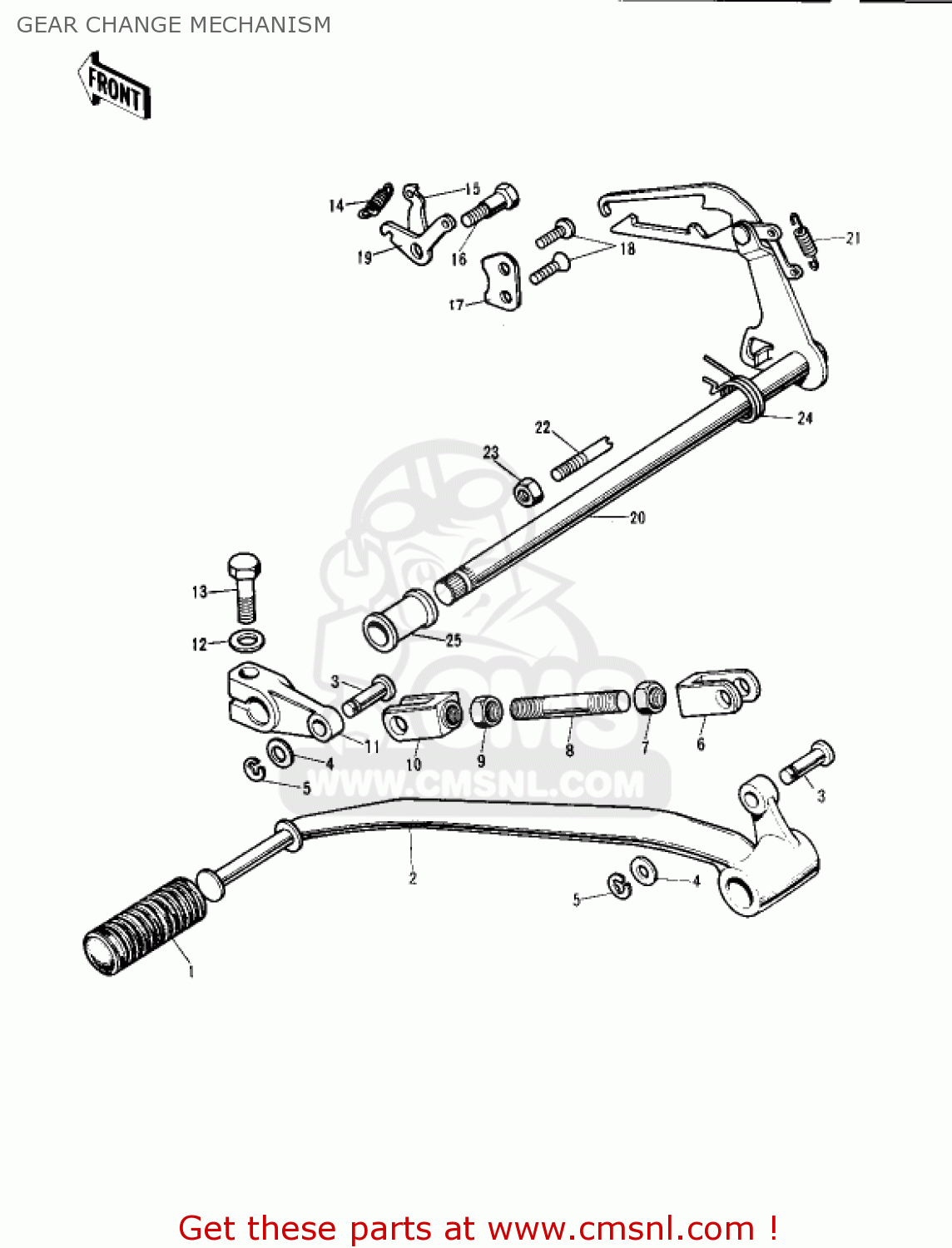

Gear change mechanism diagram S1B MACH I 1974 USA CANADA
GEAR CHANGE MECHANISM S1B MACH I 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13157004
ref: 1
RUBBER-CHANGE PEDAL
€ 4.00
2
13242009
ref: 2
GEAR CHANGE PEDAL ASSEMBLY
€ 27.50
3
92043069
ref: 3
PIN,8X15.4
€ 7.00
4
920221028
ref: 4
WASHER,8.5X13X1
€ 2.50
5
482K5000
ref: 5
CIRCLIP,5MM
€ 2.00
6
13159008
ref: 6
CONNECTOR,B
€ 51.50
7
92017010
ref: 7
NUT,8MM
€ 3.50
8
92003074
ref: 8
ROD
€ 16.00
9
318N0800
ref: 9
NUT,8MM
€ 2.50
10
13159007
ref: 10
CONNECTOR,A
€ 14.00
11
13158007
ref: 11
LEVER-GEAR CHANGE
€ 50.50
12
461F0800
ref: 12
WASHER-SPRING,8MM
€ 0.50
13
921501488
ref: 13
S1-A/B
BOLT
€ 5.50
13
115G0825
ref: 13
S1-C,KH250-A5
BOLT-HEX,HEAD,8X25
€ 3.00
14
92081091
ref: 14
SPRING-COIL
€ 3.50
15
13170005
ref: 15
PLATE,CHANGE DRUM LEV
€ 7.00
16
92011023
ref: 16
SCREW-PAN HEAD
€ 2.50
17
13169007
ref: 17
PLATE-DRUM LEV POSTON
€ 9.00
18
221B0616
ref: 18
SCREW-CNTSNK HD,6X16
€ 0.50
19
13236002
ref: 19
LEVER-COMP,CHNG RETRN
€ 13.00
20
13161036
ref: 20
LEVER ASSY,GEAR CHNGE
€ 55.50
21
921441720
ref: 21
SPRING,CHANGE LEVER
€ 3.00
22
920011401
ref: 22
BOLT,RETURN SPRING
€ 3.00
23
312B0800
ref: 23
NUT,8MM
€ 0.50
24
920811129
ref: 24
SPRING,TENTION
€ 6.50
25
13171004
ref: 25
DUST SHIELD-CHNG SHT
€ 6.50
