CARBURETORS
S1B MACH I 1974 USA CANADA

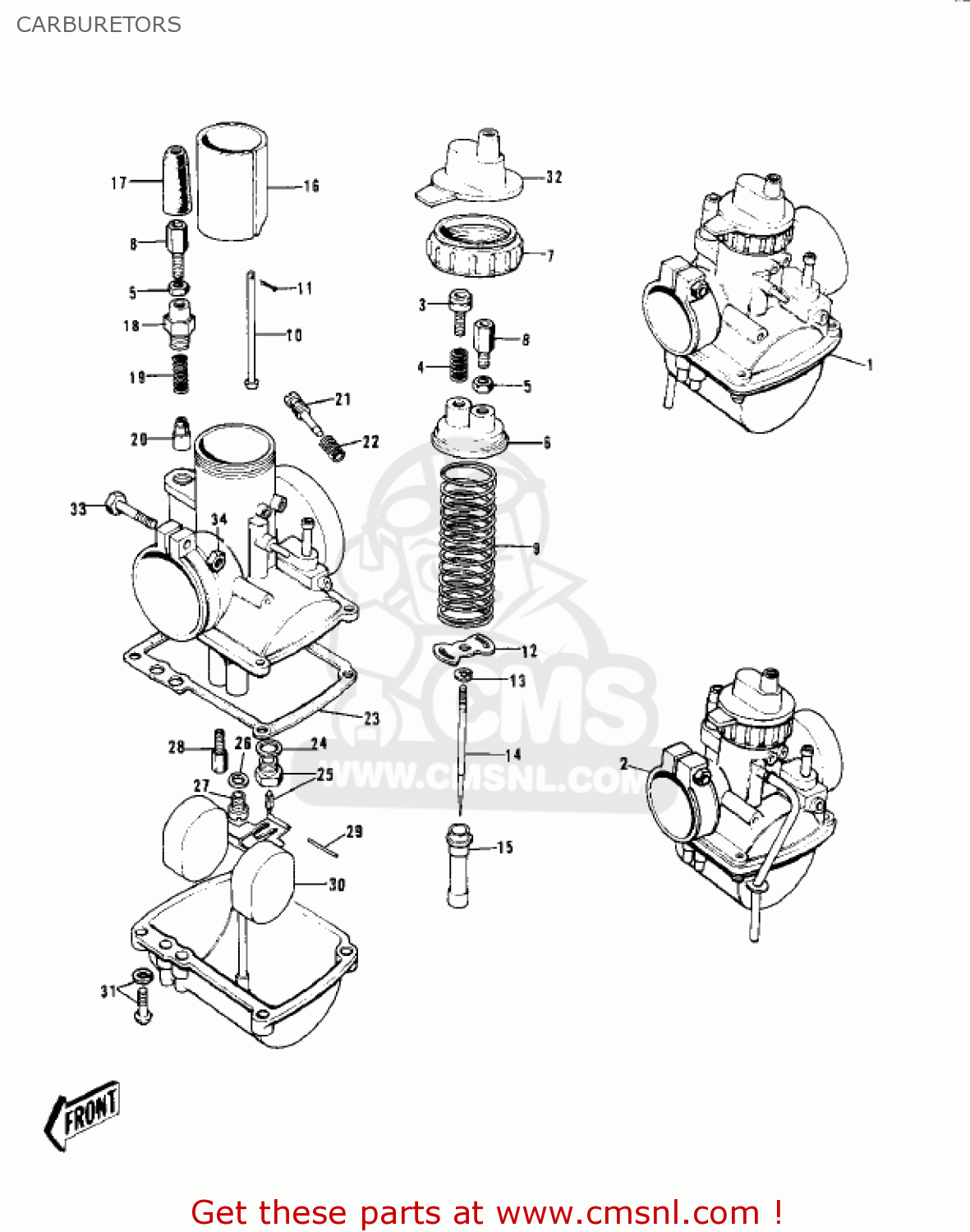

Carburetors diagram S1B MACH I 1974 USA CANADA
CARBURETORS S1B MACH I 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001177
ref: 1
S1-A/B
CARBURETOR ASSY,L.H
€ 262.00
1
16001235
ref: 1
S1-C,KH250-A5
CARBURETOR ASSY,L.H
€ 482.50
2
16001178
ref: 2
S1-A/B
CARBURETOR ASY,R.H&CN
€ 170.50
2
16001236
ref: 2
S1-C,KH250-A5
CARBURETOR ASY,R.H-C
€ 424.50
3
16021016
ref: 3
SCREW-THROTTLE STOP
€ 15.50
4
16022005
ref: 4
SPRING-THR STOP SCREW
€ 5.50
5
16003004
ref: 5
NUT-CABLE ADJUST LOCK
€ 4.50
6
16005005
ref: 6
TOP-CHAMBER,MIXING
€ 12.50
7
16004019
ref: 7
CAP-MIXING CHAMBER
€ 8.50
8
16002002
ref: 8
ADJUSTER-CABLE,STARTE
€ 8.00
9
16006019
ref: 9
SPRING-THROTTLE VALVE
€ 12.50
10
16024012
ref: 10
ROD,THROTTLE VALVE ST
€ 5.50
11
550D1210
ref: 11
PIN-COTTER,1.2X10
€ 1.50
12
16007002
ref: 12
SEAT-SPRING,THROTTLE
€ 8.50
13
16008010
ref: 13
CLAMP,E-TYPE
€ 5.00
14
16009057
ref: 14
JET NEEDLE,4EJ9
€ 20.50
15
16017066
ref: 15
NEEDLE JET,0-2
€ 25.00
16
16025054
ref: 16
VALVE-THROTTLE,CA2.5
€ 67.00
17
16036005
ref: 17
CAP-CABLE ADJUST RUBB
€ 7.50
18
16012004
ref: 18
CAP-STARTER PLUNGER
€ 7.50
19
16013003
ref: 19
SPRING-STARTER PLUNG
€ 4.00
20
16016002
ref: 20
PLUNGER,STARTER
€ 20.00
21
16014006
ref: 21
SCREW-PILOT AIR
€ 9.00
22
16022007
ref: 22
SPRING-THR STOP SCREW
€ 5.50
23
16019012
ref: 23
GASKET-FLOAT CHAMBER (NAS)
€ 13.00
24
16029002
ref: 24
WASHER-VALVE SEAT
€ 2.50
25
16030001
ref: 25
VALVE-FLOAT,#2.0
€ 40.50
26
16034001
ref: 26
WASHER-MAIN JET
€ 2.50
27
92063109
ref: 27
STD
JET-MAIN,#75R
€ 10.50
27
920631012
ref: 27
JET-MAIN,#70R
€ 8.00
27
92063108
ref: 27
JET-MAIN,#72.5R
€ 9.00
27
920631032
ref: 27
JET-MAIN,#A77.5R
€ 10.00
27
920631030
ref: 27
JET-MAIN,#A80R
€ 11.00
28
92064021
ref: 28
PILOT JET #20 ISO
€ 12.00
29
16032003
ref: 29
FLOAT PIN
€ 4.00
30
16031015
ref: 30
FLOAT
€ 40.50
31
16033012
ref: 31
SCREW-FLOAT CHAMBER
€ 1.00
32
16033012
ref: 32
SCREW-FLOAT CHAMBER
€ 1.00
32
490061021
ref: 32
BOOT,CARBURETOR
€ 9.50
33
16010004
ref: 33
SCREW-CLAMP
€ 3.50
34
311B0600
ref: 34
NUT,6MM
€ 0.50
