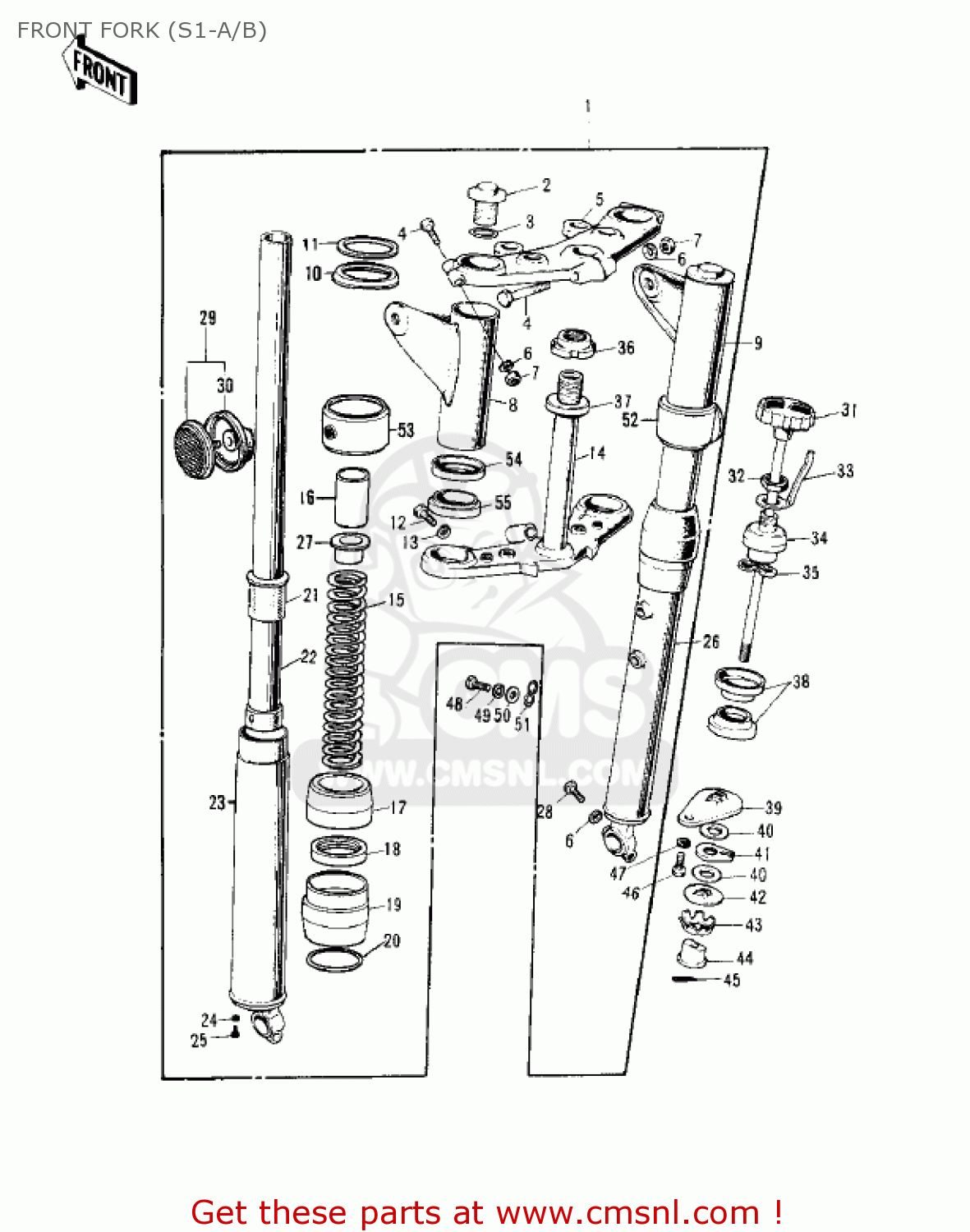

FRONT FORK (S1-A/B)

ref

part #

description

quantity

1

4400110421
ref: 1

FRONT FORK ASSY

€ 496.50

2

44041037
ref: 2

BOLT-FORK FITTING

€ 30.50

3

44046015
ref: 3

RING-O,FORK TOP

€ 4.50

4

44041038
ref: 4

BOLT-HEX HEAD,8X55

€ 5.50

5

44039052
ref: 5

HEAD,STEERING STEM

€ 97.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

311B0800
ref: 7

NUT,8MM

€ 0.50

8

4403305421
ref: 8

COVER,L.H FORK,BLACK

€ 42.00

9

4403405421
ref: 9

COVER,R.H FORK,BLACK

€ 48.50

10

44043047
ref: 10

WASHER,FORK COVER

€ 8.00

11

44045039
ref: 11

GASKET,FORK COVER (NAS)

€ 3.50

12

920011252
ref: 12

BOLT,HEX HEAD,10X35

€ 3.50

13

461F1000
ref: 13

WASHER-SPRING,10MM

€ 0.50

14

44037059
ref: 14

STEM,STEERING

€ 109.00

15

44026038
ref: 15

SPRING-FORK

€ 24.00

16

44028022
ref: 16

SPACER-FORK SPRG GIDE

€ 3.00

17

44010017
ref: 17

DUST SHIELD-FORK

€ 14.00

18

44009020
ref: 18

OIL SEAL,FORK

€ 38.00

19

44007015
ref: 19

NUT-FORK OUTER TUBE

€ 40.50

20

44046016
ref: 20

'O' RING-OUTER TUBE

€ 4.00

21

44015011
ref: 21

GUIDE-FORK INNER TUBE

€ 16.50

22

44013031
ref: 22

TUBE-FORK INNER

€ 162.00

23

44005039
ref: 23

TUBE-L.H FORK

€ 110.00

24

44045002
ref: 24

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

25

220B0408
ref: 25

SCREW-PAN-CROS

€ 0.50

26

44006037
ref: 26

TUBE-R.H FORK

€ 214.00

27

44029019
ref: 27

GUIDE-FORK SPRING

€ 6.00

28

44041017
ref: 28

BOLT-FRNT AXLE PINCH

€ 3.00

29

28001029
ref: 29

REFLECTOR,REFLEX,FRNT

€ 20.00

30

28016002
ref: 30

DAMPER RUBBER-REFLEX

€ 5.50

31

46101007
ref: 31

KNOB-STEERING DAMPER

€ 10.50

32

315N1200A
ref: 32

NUT,12MM

€ 3.50

33

46126001
ref: 33

SPRING-STRG DAMP KNOB

€ 3.50

34

92090020
ref: 34

BOLT-STEERING STEM

€ 27.00

35

46100002
ref: 35

WASHER-WAVE

€ 7.00

36

92090007
ref: 36

NUT-STEERING STEM LCK

€ 8.00

37

46098016
ref: 37

CAP,STEERING STEM

€ 4.00

38

92047006
ref: 38

CONE-STRNG STEM

€ 11.00

39

46106007
ref: 39

PLATE-STRG DAMP STEEL

€ 1.50

40

46104005
ref: 40

PLATE-STRG DAMP FRCTN

€ 2.50

41

46105005
ref: 41

PLATE,STRG DAMP ANCH

€ 8.50

42

46106008
ref: 42

PLATE-STRG DAMP STEEL

€ 1.50

43

46124006
ref: 43

SPRING-STEERING DAMP

€ 9.00

44

46125005
ref: 44

NUT-STRG DAMPER GUIDE

€ 23.00

45

550D1615
ref: 45

PIN-COTTER,1.6X15

€ 1.50

46

114G0812
ref: 46

BOLT-SMALL,8X12

€ 2.00

47

461F0800
ref: 47

WASHER-SPRING,8MM

€ 0.50

48

112G0612
ref: 48

BOLT-UPSET

€ 2.50

49

461F0600
ref: 49

WASHER-SPRING,6MM

€ 0.50

50

410B0600
ref: 50

WASHER-PLAIN-SMALL,6M

€ 0.50

51

92037046
ref: 51

CLAMP,CABLE

€ 3.00

52

44064011
ref: 52

GUIDE,R.H FORK OUTER

€ 24.50

53

44064012
ref: 53

GUIDE,L.H FORK OUTER

€ 31.50

54

44032005
ref: 54

CAP-FORK COVER

€ 7.00

55

44045039
ref: 55

GASKET,FORK COVER (NAS)

€ 3.50
