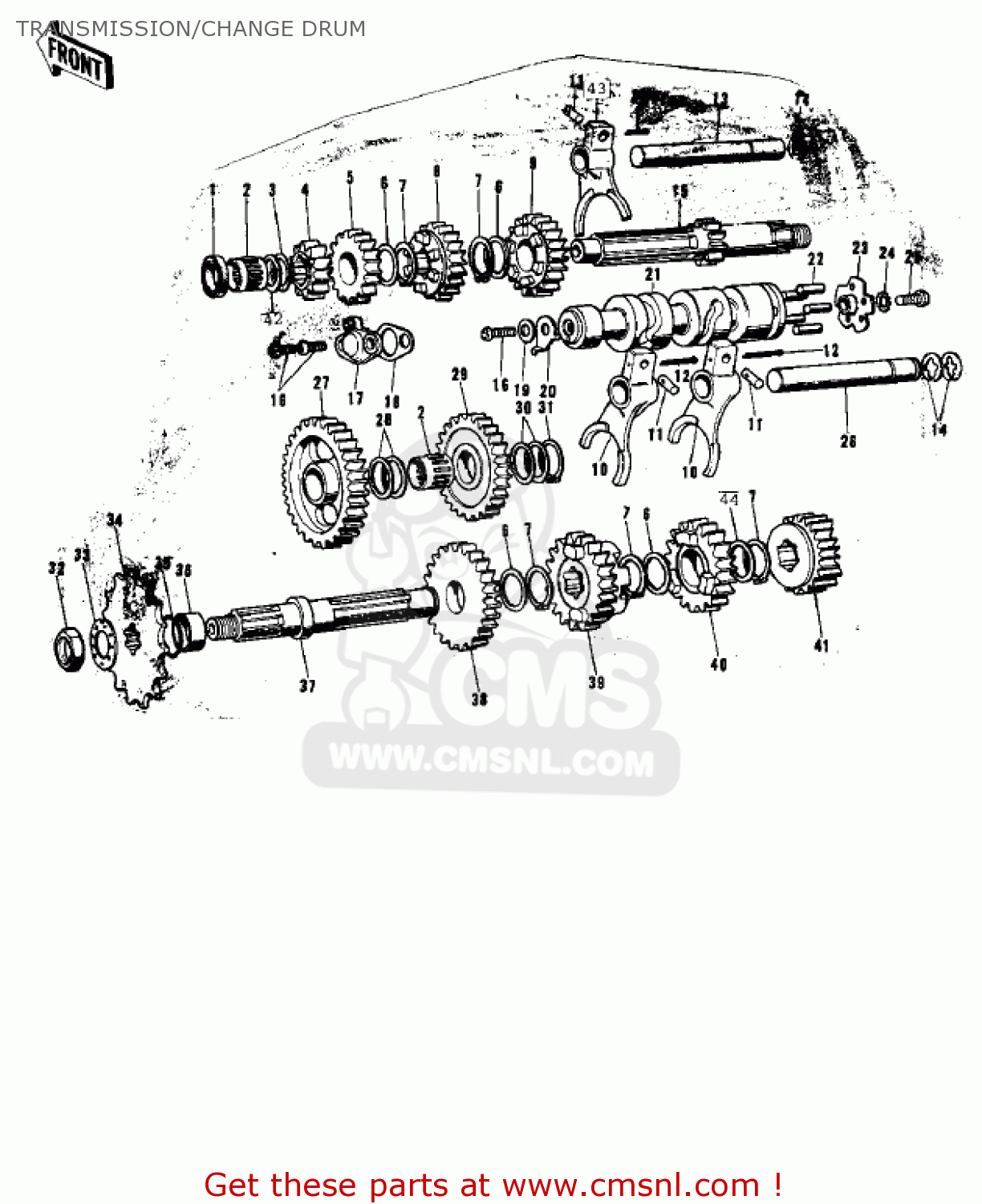

TRANSMISSION/CHANGE DRUM

ref

part #

description

quantity

1

92050034
ref: 1

OIL SEAL-CLTH PSH ROD

€ 8.50

2

92046025
ref: 2

BEARING,#7E-HMK2015

€ 16.00

3

92022113
ref: 3

WASHER,20.5X30X1

€ 6.00

4

13130021
ref: 4
14T

2ND GEAR-DRIVE SHAFT

€ 39.50

5

13134005
ref: 5
20T

4TH GEAR-DRIVE SHAFT

€ 33.50

6

92022161
ref: 6

WASHER-THRUST,25MM

€ 7.00

7

92033026
ref: 7

CIRCLIP

€ 6.00

8

13132020
ref: 8
18T

3RD GEAR-DRIVE SHAFT

€ 68.50

9

13136047
ref: 9
28T

TOP GEAR,DRIVE SHAFT

€ 49.50

10

13140051
ref: 10

SELECTOR FORK

€ 95.50

11

92043005
ref: 11

PIN,DOWEL,8X15

€ 4.50

12

550D3018
ref: 12

PIN COTTER 3.0X18

€ 0.50

13

13209009
ref: 13
L=113 M/M

ROD-SHIFT

€ 4.00

14

482J0100
ref: 14

CIRCLIP-TYPE-E,10MM

€ 0.50

15

13127025
ref: 15

SHAFT-DRIVE

€ 89.00

16

220B0616
ref: 16

SCREW-PAN HEAD,6X16

€ 2.50

17

131511001
ref: 17

SWITCH-COMP,NEUTRAL

€ 9.50

18

13146002
ref: 18

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

19

410B0600
ref: 19

WASHER-PLAIN-SMALL,6M

€ 0.50

20

210071003
ref: 20

ROTOR,TOP & NEUTRAL

€ 4.50

21

13239006
ref: 21

DRUM ASSY-GEAR CHANG

€ 72.00

22

92042020
ref: 22

PIN-GEAR CHANGE DRUM

€ 3.00

23

13142010
ref: 23

PLATE-CHANGE DRUM PIN

€ 11.50

24

464H0600
ref: 24

WASHER-LOCK,6MM

€ 0.50

25

221B0620
ref: 25

SCREW-CNTSNK HD,6X20

€ 0.50

26

13209010
ref: 26
L=119 M/M

ROD-SHIFT

€ 6.50

27

13129042
ref: 27
27T

LOW GEAR-OUTPUT SHAFT

€ 88.00

28

92022112
ref: 28

WASHER,20.5X30X1,STEE

€ 6.00

29

13073005
ref: 29

IDLE GEAR-KICKSTARTER

€ 41.00

30

92022112
ref: 30
1.0T

WASHER,20.5X30X1,STEE

€ 6.00

30

92002144
ref: 30
0.5T

WASHER THRUST

€ 0.00

31

480J1900
ref: 31

CIRCLIP-TYPE-C,19MM

€ 1.00

32

92015019
ref: 32

NUT,18MM

€ 4.00

33

92024067
ref: 33

WASHER,LOCK

€ 2.00

33

92024067
ref: 33
F9C

WASHER,LOCK

€ 2.00

34

13144017
ref: 34
STD

SPROCKET-OUTPUT,14T

€ 35.50

34

13144043
ref: 34
OPTION

ENGINE SPROCKET,13T

€ 30.50

34

13144025
ref: 34
OPTION

ENGINE SPROCKET,15T

€ 23.00

35

92055035
ref: 35

O RING

€ 3.00

36

92027163
ref: 36

COLLAR,25X30X10.1

€ 13.00

36

92027163
ref: 36
F9C

COLLAR,25X30X10.1

€ 13.00

37

13128027
ref: 37

SHAFT-OUTPUT

€ 100.50

38

13131024
ref: 38
24T

2ND GEAR-OUTPUT SHAFT

€ 44.00

39

13135009
ref: 39
18T

4TH GEAR-OUTPUT SHAFT

€ 54.50

40

13133019
ref: 40
21T

3RD GEAR-OUTPUT SHAFT

€ 33.00

41

13137013
ref: 41
20T

TOP GEAR-OUTPUT SHAFT

€ 35.50

42

92022223
ref: 42

WASHER,20.5X30X1.4

€ 8.50

43

13140052
ref: 43

FORK-SELECTOR

€ 64.50

44

92024060
ref: 44

LOCK WASHER

€ 9.00
