ENGINE COVERS ('74-'75 F9-B/F9-C
F9 1972 USA CANADA

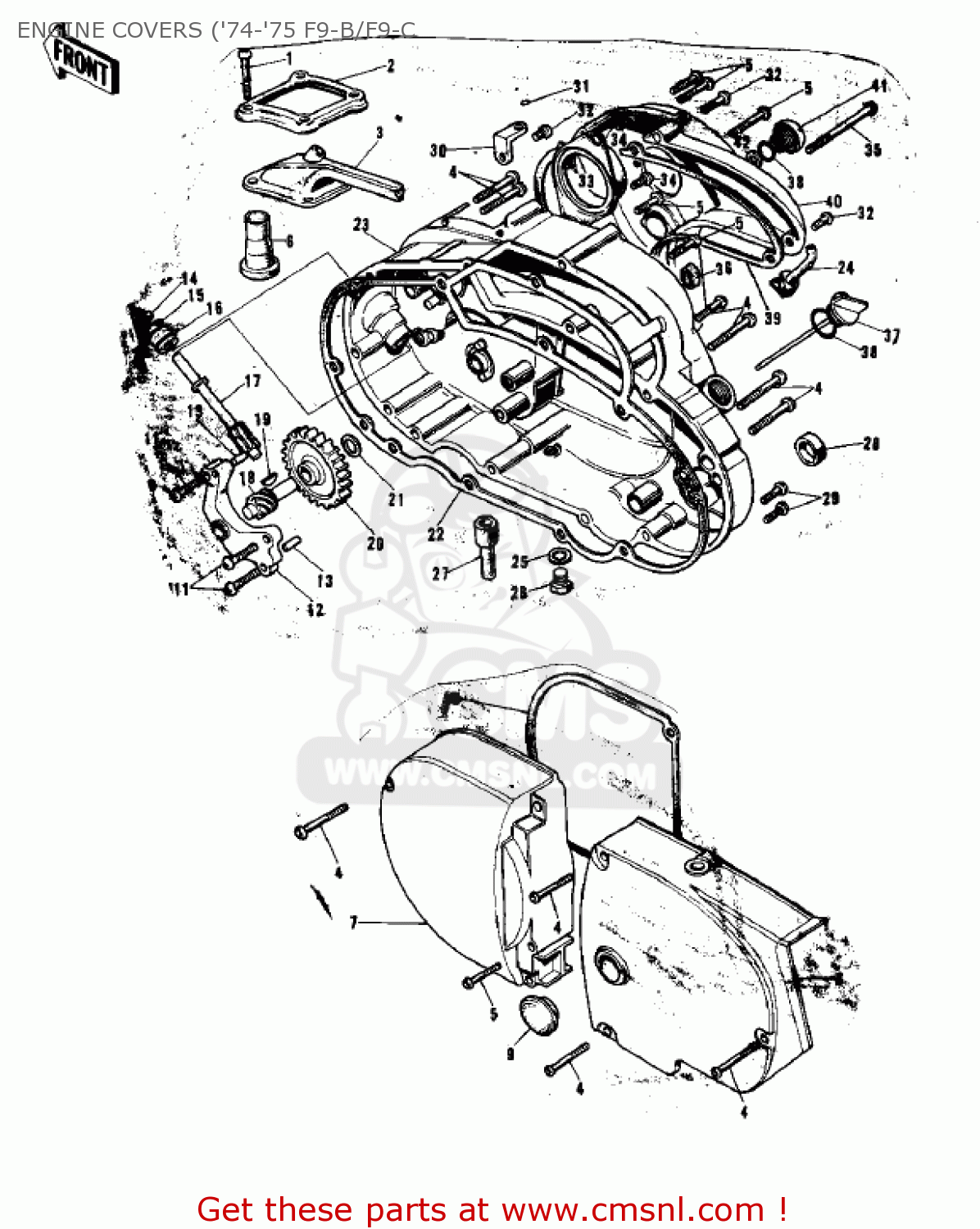

Engine covers ('74-'75 f9-b/f9-c diagram F9 1972 USA CANADA
ENGINE COVERS ('74-'75 F9-B/F9-C F9 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0512
ref: 1
SCREW-PAN-CROS
€ 0.50
2
14065006
ref: 2
CARBURETOR CAP HOLDER
€ 25.00
3
14038038
ref: 3
CARBURETOR CAP
€ 23.50
4
220B0655
ref: 4
SCREW-PAN HEAD,6X55
€ 2.50
5
220B0635
ref: 5
SCREW-PAN HEAD,6X35
€ 1.00
6
92074021
ref: 6
RUBBER PLUG-CARB CAP
€ 1.50
7
1403103880
ref: 7
ENGINE COVER,LH,BUFF
€ 212.00
8
14026005E8
ref: 8
CHAIN CASE COVER
€ 175.50
9
14040003
ref: 9
CAP-CLUTCH HOLE
€ 2.50
10
14045008
ref: 10
GASKET-L.H ENG COVER (MCA)
€ 7.00
11
220B0625
ref: 11
SCREW-PAN HEAD,6X25
€ 1.50
12
14018004
ref: 12
HOLDER-TACHOMETER GR
€ 12.50
13
610A0512
ref: 13
ROLLER,5X12
€ 3.00
14
92054004
ref: 14
OIL SEAL
€ 14.50
15
92055025
ref: 15
'O' RING
€ 3.00
16
92028075
ref: 16
BUSH
€ 14.50
17
13223004
ref: 17
GEAR-TACHOMETER
€ 20.50
18
13224006
ref: 18
PINION-TACHOMETER
€ 34.00
19
510A3100
ref: 19
KEY-WOODRUFF
€ 1.50
20
16085014
ref: 20
33T
GEAR-OIL PUMP
€ 12.50
21
92026025
ref: 21
WASHER-THRUST
€ 7.00
22
14046020
ref: 22
GASKET-R.H ENG COVER (MCA)
€ 8.00
23
1403209080
ref: 23
ENGINE COVER,RH,BUFF
€ 412.00
24
16135006
ref: 24
OIL PIPE GROMMET
€ 1.50
25
92065058
ref: 25
GASKET, 10,5X16X1 (NAS)
€ 2.50
26
92067001
ref: 26
PLUG-OIL DRAIN
€ 3.00
27
16116001
ref: 27
PLUG
€ 6.00
28
92049012
ref: 28
OIL SEAL SB20285
€ 8.50
29
220B0630
ref: 29
SCREW-PAN HEAD,6X30
€ 2.50
30
14044005
ref: 30
HOLDER-OIL PUMP CABLE
€ 3.00
31
92036017
ref: 31
CIRCLIP
€ 2.00
32
220B0620
ref: 32
SCREW-PAN HEAD,6X20
€ 2.50
33
16065010
ref: 33
HOLDER-CARBURETOR
€ 10.50
34
220B0612
ref: 34
SCREW-PAN HEAD,6X12
€ 1.00
35
220B0670
ref: 35
SCREW-PAN HEAD,6X70
€ 2.50
36
14064001
ref: 36
STOPPER-CARBURETOR
€ 1.00
37
16115017
ref: 37
PLUG-OIL FILLER
€ 12.00
38
670B2020
ref: 38
O RING,20MM
€ 1.00
39
14048002
ref: 39
GASKET-CARBURETOR COV (MCA)
€ 23.50
40
1403003480
ref: 40
CARBURETOR COVER,BUFF
€ 164.00
41
92067015
ref: 41
CARBURETOR COVER PLUG
€ 30.50
42
92094010
ref: 42
WASHER-RUBBER
€ 0.50
