METERS/IGNITION SWITCH
F9 1972 USA CANADA

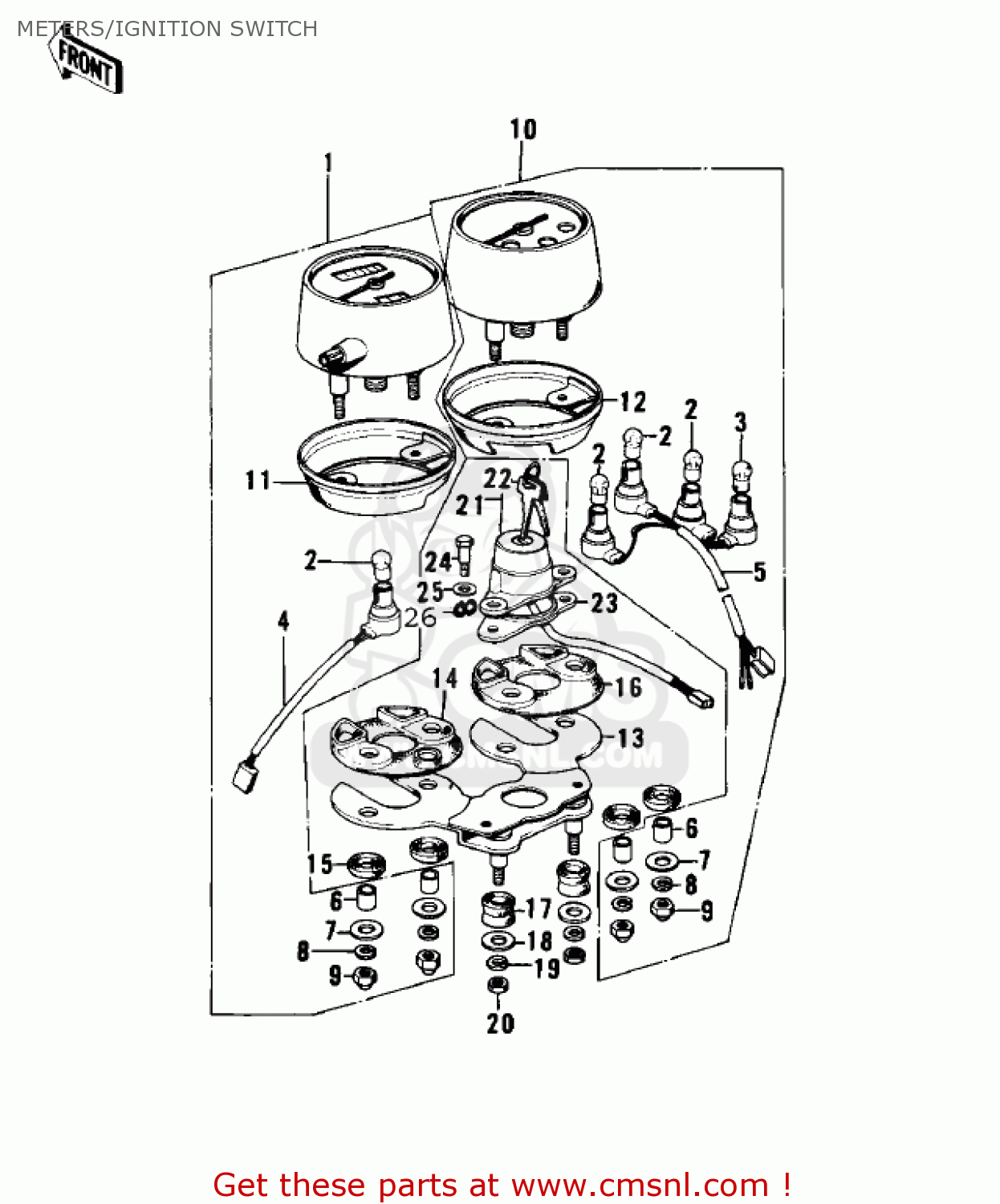

Meters/ignition switch diagram F9 1972 USA CANADA
METERS/IGNITION SWITCH F9 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
25005096
ref: 1
SPEEDOMETER ASSEMBLY,MPH
€ 311.50
2
92069024
ref: 2
BULB 6V 1.5W
€ 3.00
3
92069053
ref: 3
BULB 6V 3W
€ 3.00
4
25010015
ref: 4
SPEEDOMETER SOCKET
€ 23.50
5
25011039
ref: 5
TACHOMETER SOCKET
€ 79.00
6
25021004
ref: 6
COLLAR,5.5X7.5X12.2
€ 3.00
7
92022285
ref: 7
WASHER,5.2X18X1.2
€ 4.50
8
461F0500
ref: 8
WASHER-SPRING,5MM
€ 0.50
9
322N0500
ref: 9
NUT-CAP,5MM
€ 2.00
10
25016024
ref: 10
TACHOMETER ASSEMBLY
€ 262.50
11
25012017
ref: 11
COVER,SPEEDOMETER
€ 23.00
12
25012018
ref: 12
COVER,TACHOMETER
€ 22.50
13
25008032
ref: 13
METER BRACKET
€ 57.50
14
25019018
ref: 14
DAMPER,SPEEDOMETER
€ 7.00
15
25019019
ref: 15
DAMPER,METER
€ 4.50
16
25019020
ref: 16
DAMPER RUBBER,METER
€ 5.50
17
92075024
ref: 17
DAMPER
€ 2.50
18
92022125
ref: 18
WASHER,6.5X20X1.6
€ 1.00
18
92022237
ref: 18
F9C
WASHER-PLAIN
€ 2.50
19
461F0600
ref: 19
WASHER-SPRING,6MM
€ 0.50
20
311B0600
ref: 20
NUT,6MM
€ 0.50
21
27005068
ref: 21
SWITCH ASSY,IGNITION
€ 106.50
22
2700806311
ref: 22
KEY SET,#411
€ 14.00
22
2700806312
ref: 22
KEY SET,#412
€ 14.00
22
2700806313
ref: 22
KEY SET,#413
€ 14.00
22
2700806314
ref: 22
KEY SET,#414
€ 7.00
22
2700806315
ref: 22
KEY SET,#415
€ 14.00
22
2700806316
ref: 22
KEY SET,#416
€ 14.00
22
2700806317
ref: 22
KEY SET,#417
€ 14.00
22
2700806318
ref: 22
KEY SET,#418
€ 7.00
22
2700806319
ref: 22
KEY SET,#419
€ 14.00
22
2700806320
ref: 22
KEY SET,#420
€ 14.00
23
92075077
ref: 23
DAMPER RUBBER
€ 7.00
24
92007026
ref: 24
BOLT-HEX HEAD,6MM
€ 6.00
25
410B0800
ref: 25
WASHER-PLAIN-SMALL,8M
€ 0.50
26
25002022
ref: 26
UNAVAILABLE IN PRICE BOOK
€ 0.00
