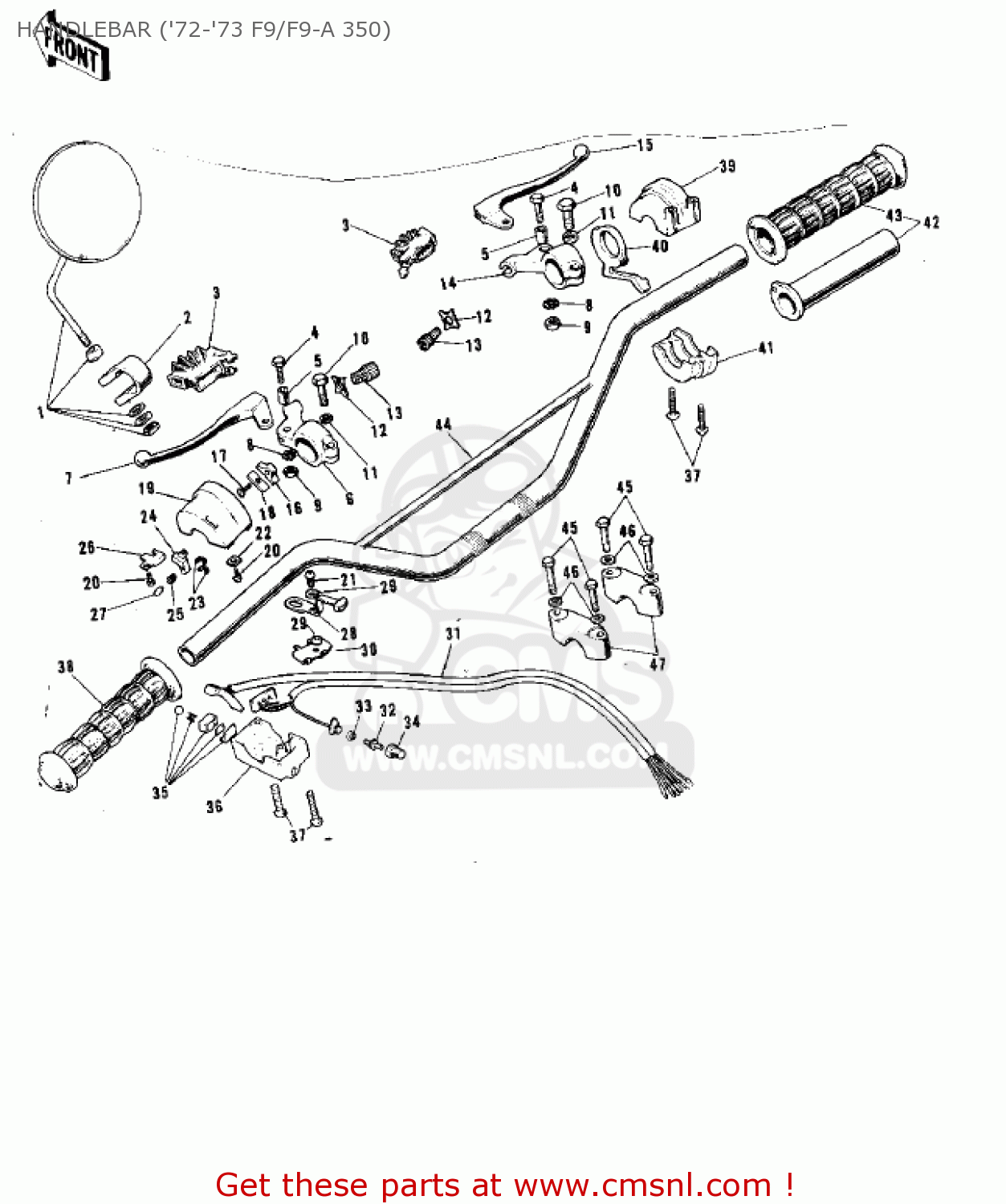

HANDLEBAR ('72-'73 F9/F9-A 350)

ref

part #

description

quantity

1

56001005
ref: 1

REAR VIEW MIRROR

€ 54.00

2

56006001
ref: 2

PLATE,MIRROR

€ 8.50

?

46076014
ref: ?
Includes items 3 - 1

LEVER ASSY-CLUTCH

€ 30.00

?

46076024
ref: ?
Includes items 3 - 1

CLUTCH LEVER ASSEMBLY

€ 66.00

3

46071001
ref: 3

DUST COVER

€ 9.00

4

92007020
ref: 4

BOLT-HEX HEAD,5X20

€ 2.50

5

46059011
ref: 5

COLLAR,LEVER

€ 3.50

6

46094010
ref: 6

HOLDER,CLUTCH LEVER

€ 31.50

6

46094010
ref: 6
F9A, ADC5

HOLDER,CLUTCH LEVER

€ 31.50

7

46092015
ref: 7

LEVER-GRIP,CLUTCH

€ 11.50

7

46092015
ref: 7
F9A, A2017-T4

LEVER-GRIP,CLUTCH

€ 11.50

8

464H0500
ref: 8

WASHER-LOCK,5MM

€ 0.50

9

312B0500
ref: 9

NUT-HEX,5MM

€ 0.50

10

112N0620
ref: 10

BOLT-UPSET

€ 1.00

11

410B0600
ref: 11

WASHER-PLAIN-SMALL,6M

€ 0.50

13

46055003
ref: 13

SCREW-CABLE ADJUST

€ 11.50

?

46021010
ref: ?
Includes items 3 - 6

LEVER ASSY-FRNT BRAKE

€ 35.50

?

46021016
ref: ?
Includes items 8 - 1

FRONT BRAKE LEVER ASSEMBLY

€ 66.00

14

46060006
ref: 14

HOLDER-FR BRAKE LEVER

€ 26.00

14

46060008
ref: 14
F9A, ADC5

HOLDER,FR BRAKE LEVER

€ 23.00

15

46058004
ref: 15

LEVER-GRIP,FRONT BRAK

€ 24.00

15

46058004
ref: 15
F9A, A2017-T4

LEVER-GRIP,FRONT BRAK

€ 24.00

?

46091004
ref: ?
Includes items 16 -

CASE ASSY-L.H

€ 88.00

?

46091016
ref: ?
Includes items 16 -

CASE ASSEMBLY,LH

€ 113.50

16

46044011
ref: 16

KNOB-L.H SWITCH

€ 6.00

17

221B0308A
ref: 17

SCREW-CNTSNK HD,3X8

€ 2.50

18

46031003
ref: 18

SPRING-L.H SW KNOB

€ 1.50

19

46086013
ref: 19

CASE-L.H SWITCH UPPER

€ 9.50

20

220B0305A
ref: 20

SCREW-PAN HEAD,3X5

€ 1.00

21

220B0308
ref: 21

SCREW-PAN-CROS

€ 0.50

22

46085013
ref: 22

HOLDER-L.H SW UPPER,A

€ 1.50

23

46080002
ref: 23

PLATE-L.H SW CONTACT

€ 1.50

24

46089003
ref: 24

SWITCH-L.H

€ 2.50

25

46031004
ref: 25

SPRING-L.H SWITCH

€ 1.50

26

46085014
ref: 26

HOLDER-L.H SW LOWER,B

€ 1.00

27

46079002
ref: 27

CONTACT-L.H SWITCH

€ 1.50

28

46044006
ref: 28

KNOB-SWITCH

€ 2.50

29

92095010
ref: 29

WASHER

€ 2.50

30

46085015
ref: 30

HOLDER-L.H SW LOWER

€ 1.00

31

46082017
ref: 31

WIRING HARNESS-L.H SW

€ 12.50

31

46082026
ref: 31
F9A

SWITCH WIRING HARNESS,LH

€ 62.50

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

46089004
ref: 35

SLIDE BLOCK AY-L.H SW

€ 6.50

36

46077015
ref: 36

CASE-L.H SWITCH LOWER

€ 9.50

37

220B0522
ref: 37

SCREW-PAN-CROS

€ 0.50

38

46075017
ref: 38

GRIP,LH

€ 15.50

?

46018019
ref: ?
Includes items 37 an

CASE ASSY-R.H

€ 67.50

39

46041005
ref: 39

CASE-R.H UPPER

€ 59.50

40

46096006
ref: 40

LEVER-STARTER

€ 29.00

41

46023005
ref: 41

CASE-R.H LOWER

€ 13.00

42

46019018
ref: 42

GRIP ASSY-THROTTLE

€ 13.50

43

46061012
ref: 43

GRIP,RUBBER,RH

€ 18.50

44

46004016
ref: 44

HANDLEBAR

€ 69.00

45

920011405
ref: 45

BOLT,8X38

€ 10.00

46

461F0800
ref: 46

WASHER-SPRING,8MM

€ 0.50

47

46012008
ref: 47

HOLDER-HANDLE,UPP

€ 23.00
