FUEL TANK (F9)
F9 1972 USA CANADA

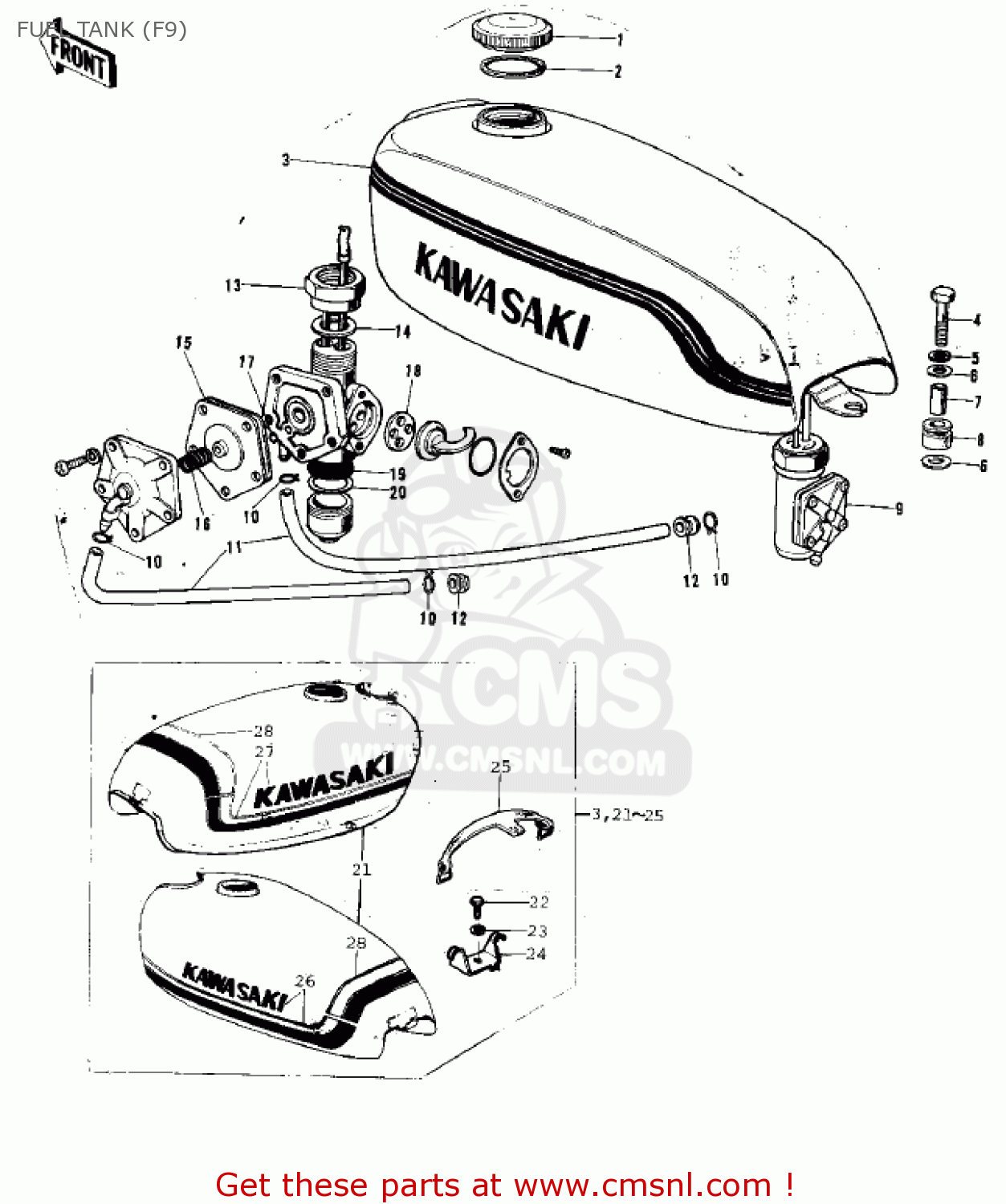

Fuel tank (f9) diagram F9 1972 USA CANADA
FUEL TANK (F9) F9 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
51049008
ref: 1
CAP-FUEL TANK
€ 32.50
2
51059007
ref: 2
GASKET-FUEL TANK CAP (NAS)
€ 3.00
3
5100105570
ref: 3
TANK-FUEL
€ 210.00
?
5100201090
ref: ?
Includes item 3 and
TANK,FUEL,L.GREEN
€ 210.00
4
920011577
ref: 4
N/R FOR 51002-010-90
BOLT,FLANGED,8X35
€ 2.50
5
461F0800
ref: 5
N/R FOR 51002-010-90
WASHER-SPRING,8MM
€ 0.50
6
92022035
ref: 6
N/R FOR 51002-010-90
WASHER-FUEL TANK FIT
€ 2.50
7
92027034
ref: 7
N/R FOR 51002-010-90
SPACER-FUEL TANK REAR
€ 3.50
8
92075030
ref: 8
N/R FOR 51002-010-90
DAMPER,TANK,RR
€ 2.00
9
51023048
ref: 9
COCK ASSY-FUEL
€ 103.00
10
92037010
ref: 10
CLAMP-FUEL PIPE
€ 2.50
11
92059072
ref: 11
L=345M/M
TUBE,4.5X9X545
€ 22.00
12
92071038
ref: 12
GROMMET,PIPE
€ 2.50
13
51035008
ref: 13
NUT-FUEL COCK JOINT
€ 5.50
14
92065066
ref: 14
FUEL COCK JOINT GASKET
€ 17.00
15
51069002
ref: 15
DIAPHRAGM ASSY
€ 31.00
16
92081072
ref: 16
DIAPHRAGM SPRING
€ 6.50
17
92065052
ref: 17
GASKET (NAS)
€ 7.00
18
92065065
ref: 18
FUEL COCK LEVER GASKET
€ 9.50
19
51038006
ref: 19
FUEL STRAINER
€ 31.50
20
51037009
ref: 20
FUEL COCK CUP GASKET
€ 8.00
21
5100107890
ref: 21
FUEL TANK,LIME GREEN
€ 510.00
22
115G0818
ref: 22
BOLT SMALL-UPSET
€ 2.50
23
461F0800
ref: 23
WASHER-SPRING,8MM
€ 0.50
24
32052046
ref: 24
FUEL TANK BRACKET
€ 6.50
25
92072049
ref: 25
BAND,FUEL TANK
€ 6.50
26
56013050
ref: 26
TRANSFER TYPE
FUEL TANK DECAL,LH
€ 36.50
27
56014040
ref: 27
TRANSFER TYPE
FUEL TANK DECAL,RH
€ 36.50
28
56027120
ref: 28
TRANSFER TYPE
FUEL TANK DECAL,TOP
€ 23.50
