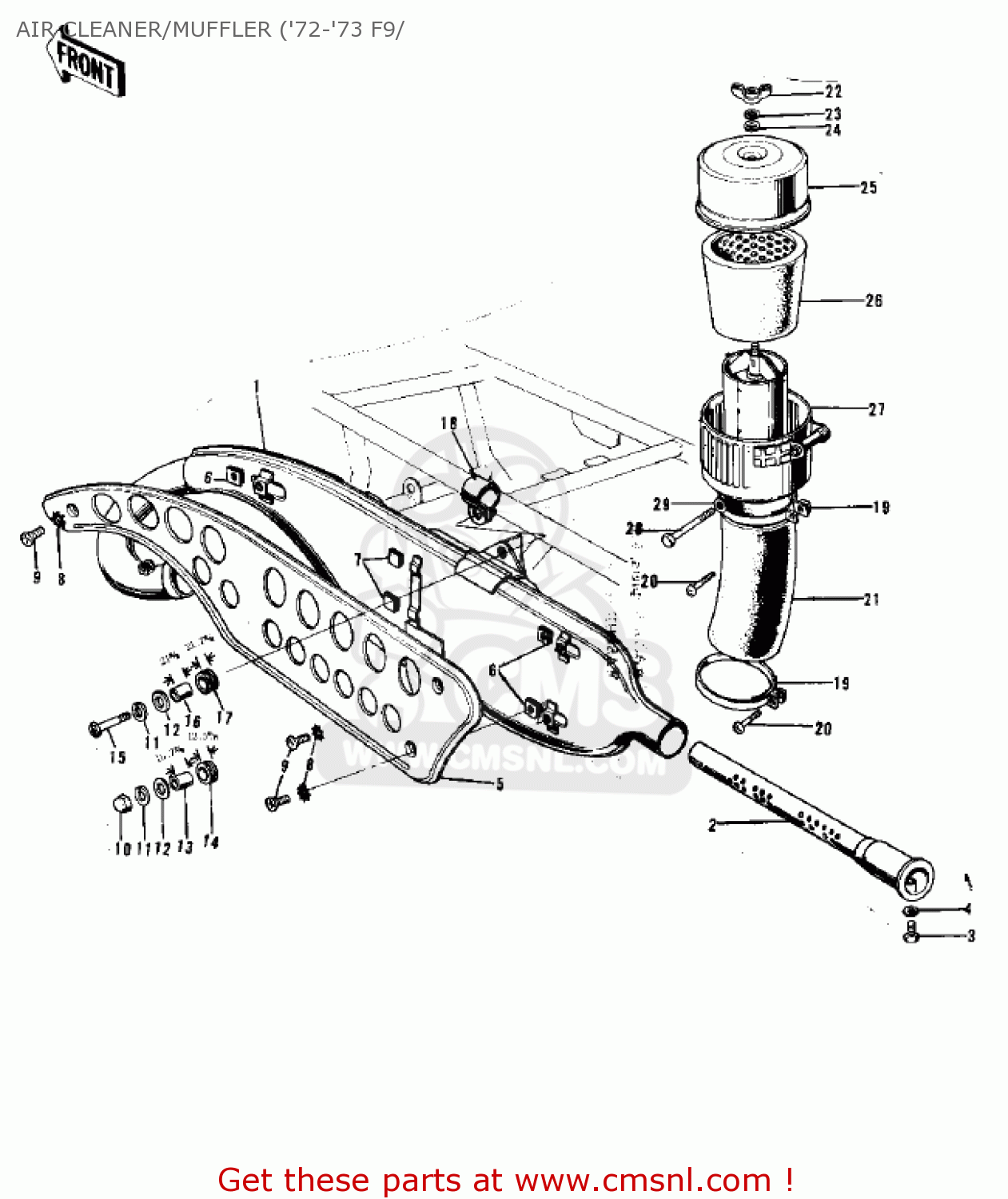

AIR CLEANER/MUFFLER ('72-'73 F9/

ref

part #

description

quantity

?

1800110721
ref: ?
Includes items 1 - 4

MUFFLER ASSY,F.BLACK

€ 155.50

2

18033052
ref: 2

BAFFLE TUBE

€ 49.00

3

112G0612
ref: 3

BOLT-UPSET

€ 2.50

3

112G0612
ref: 3

BOLT-UPSET

€ 2.50

4

463H0600
ref: 4

WASHER-LOCK,6MM

€ 0.50

5

18064006
ref: 5

COVER-MUFFLER

€ 18.00

6

18065009
ref: 6

INSULATOR,HEAT

€ 3.00

7

18065007
ref: 7

INSULATOR,HEAT

€ 3.00

8

463H0600
ref: 8

WASHER-LOCK,6MM

€ 0.50

9

220E0612
ref: 9

SCREW-PAN HEAD,6X12

€ 3.00

10

92020007
ref: 10

NUT,CAP,8MM

€ 3.50

11

461F0800
ref: 11

WASHER-SPRING,8MM

€ 0.50

12

92022035
ref: 12

WASHER-FUEL TANK FIT

€ 2.50

13

92027102
ref: 13

COLLAR

€ 1.00

14

18063005
ref: 14

DAMPER,MUFFLER

€ 3.00

15

220B0840
ref: 15

SCREW-PAN HEAD,8X40

€ 1.50

16

92027146
ref: 16

COLLAR

€ 1.50

17

18063007
ref: 17

DAMPER RUBBER

€ 1.00

18

32069039
ref: 18

BRACKET,UPPER MUFFLE

€ 4.50

18

32069039
ref: 18
F9A

BRACKET,UPPER MUFFLE

€ 4.50

19

92037129
ref: 19

CLAMP,AIR FILTER,ID=7

€ 8.50

20

220B0630
ref: 20

SCREW-PAN HEAD,6X30

€ 2.50

21

11026002
ref: 21

CONNECTOR

€ 6.50

?

11010049
ref: ?
Includes items 22 -

AIR CLEANER ASSY

€ 37.00

?

1101006321
ref: ?
Includes items 22 -

AIR CLEANER ASSEMBLY,FLAT BLACK

€ 0.00

22

92015030
ref: 22

NUT-WING,6MM

€ 1.50

23

461F0600
ref: 23

WASHER-SPRING,6MM

€ 0.50

24

411B0600
ref: 24

WASHER-PLAIN,6MM

€ 0.50

25

1101202321
ref: 25

AIR CLEANER CAP,FLAT BLACK

€ 36.50

25

1101202321
ref: 25
F9A

AIR CLEANER CAP,FLAT BLACK

€ 36.50

26

11013031
ref: 26

ELEMEMT-AIR CLEANER

€ 14.50

28

920011456
ref: 28

BOLT,6X55

€ 3.00

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

AIR CLEANER/MUFFLER ('72-'73 F9/

all assemblies
