CARBURETOR ('72-'73 F9/F9-A 350)
F9 1972 USA CANADA

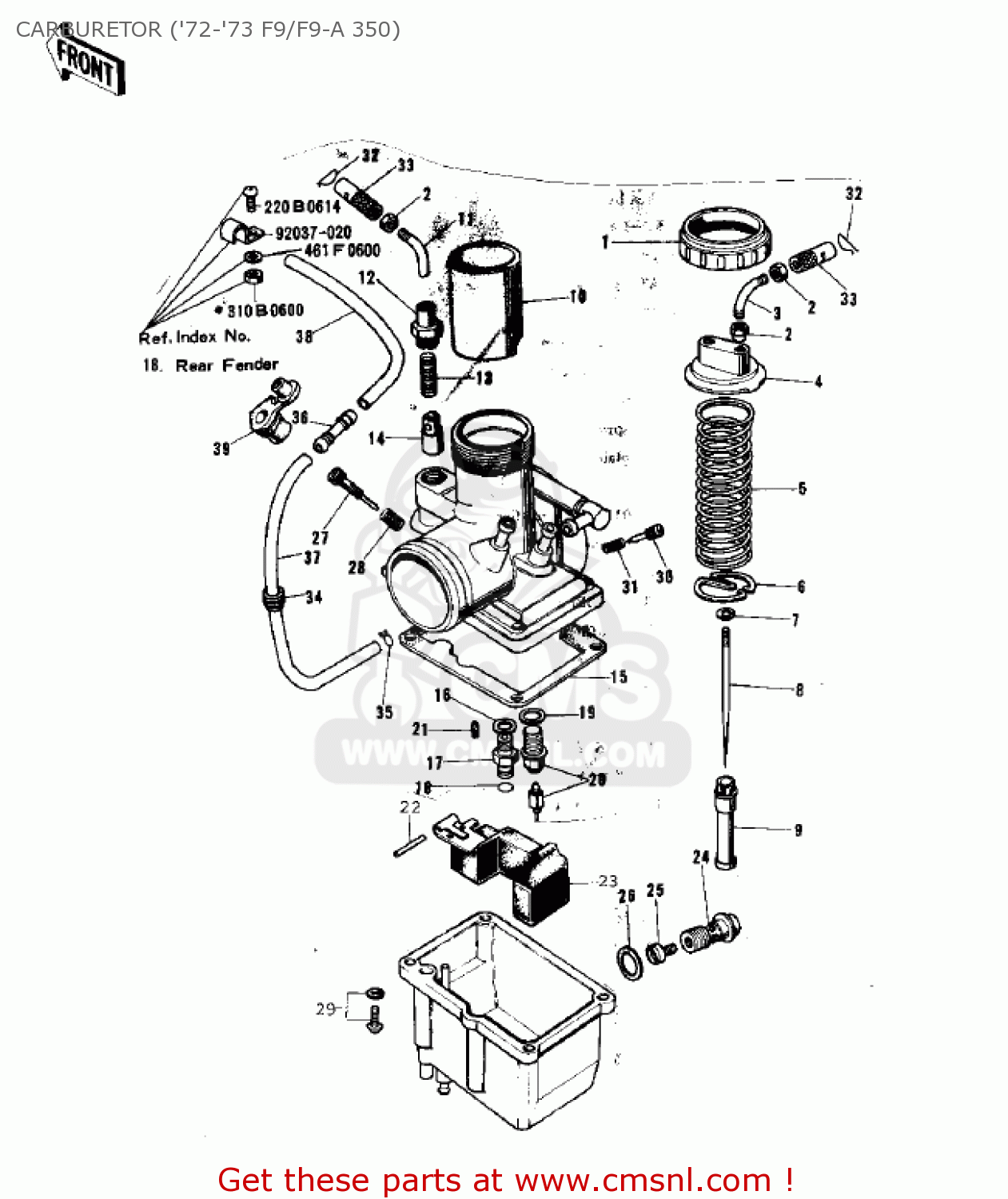

Carburetor ('72-'73 f9/f9-a 350) diagram F9 1972 USA CANADA
CARBURETOR ('72-'73 F9/F9-A 350) F9 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
?
16001140
ref: ?
Includes items 1 - 3
CARBURETOR ASSY
€ 111.50
?
16001161
ref: ?
Includes items 1 - 3
CARBURETOR ASSEMBLY
€ 361.00
1
16004006
ref: 1
CAP-MIXING CHAMBER
€ 14.00
2
16003004
ref: 2
NUT-CABLE ADJUST LOCK
€ 4.50
3
16077001
ref: 3
GUIDE,CABLE
€ 6.50
4
16005016
ref: 4
TOP-MIXING CHAMBER
€ 8.00
5
16006007
ref: 5
SPRING-THROTTLE VALVE
€ 4.00
6
16007007
ref: 6
SPRING SEAT-THRTL VLV
€ 7.50
7
16008010
ref: 7
CLAMP,E-TYPE
€ 5.00
8
16009048
ref: 8
JET NEEDLE 5EJ13
€ 19.50
9
16017057
ref: 9
NEEDLE JET,O-6
€ 26.00
10
16025045
ref: 10
VALVE-THROTTLE CA1.5
€ 21.00
11
16025052
ref: 11
THROTTLE VALVE,CA2.0
€ 101.50
12
16012013
ref: 12
CAP-STARTER PLUNGER
€ 3.00
13
16013003
ref: 13
SPRING-STARTER PLUNG
€ 4.00
14
16016002
ref: 14
PLUNGER,STARTER
€ 20.00
15
16019017
ref: 15
GASKET-FLOAT CHAMBER (MCA)
€ 4.00
16
16034001
ref: 16
WASHER-MAIN JET
€ 2.50
17
16065008
ref: 17
HOLDER,JET NEEDLE
€ 12.00
18
92055044
ref: 18
'O' RING
€ 7.00
19
16029004
ref: 19
WASHER-FLOAT VLV SEAT
€ 2.50
20
16030005
ref: 20
VALVE-FLOAT,2.5
€ 43.00
21
92064034
ref: 21
PILOT JET #10
€ 7.50
21
92064046
ref: 21
F9A
JET,PILOT,#17.5
€ 18.50
22
16032006
ref: 22
PIN,FLOAT
€ 4.00
23
16031022
ref: 23
FLOAT
€ 13.00
24
92001097
ref: 24
BOLT-BANJO
€ 15.50
25
92063078
ref: 25
STD
MAIN JET,#120R
€ 11.50
25
92063076
ref: 25
STD
MAIN JET,#115R
€ 5.50
25
92063077
ref: 25
STD
JET-MAIN,#117.5R
€ 10.00
25
920631101
ref: 25
STD
JET-MAIN,#A122.5
€ 9.50
25
92063055
ref: 25
STD
MAIN JET,#125R
€ 9.50
26
16034005
ref: 26
WASHER,BANJO BOLT (MCA)
€ 3.00
27
16021014
ref: 27
SCREW-THROTTLE STOP
€ 4.50
28
16022005
ref: 28
SPRING-THR STOP SCREW
€ 5.50
29
223B0414
ref: 29
SCREW PAN-WS-CROS
€ 2.50
30
16014011
ref: 30
SCREW-PILOT AIR ADJST
€ 2.50
31
16022007
ref: 31
SPRING-THR STOP SCREW
€ 5.50
32
92036018
ref: 32
CIRCLIP
€ 2.50
33
16002007
ref: 33
ADJUSTER-CABLE,THROTT
€ 7.50
34
92071038
ref: 34
GROMMET,PIPE
€ 2.50
35
92037010
ref: 35
CLAMP-FUEL PIPE
€ 2.50
36
92005003
ref: 36
NIPPLE
€ 2.00
37
92059065
ref: 37
PIPE
€ 22.00
38
92059002
ref: 38
PIPE-OIL TANK
€ 22.00
