MUFFLER(S)

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

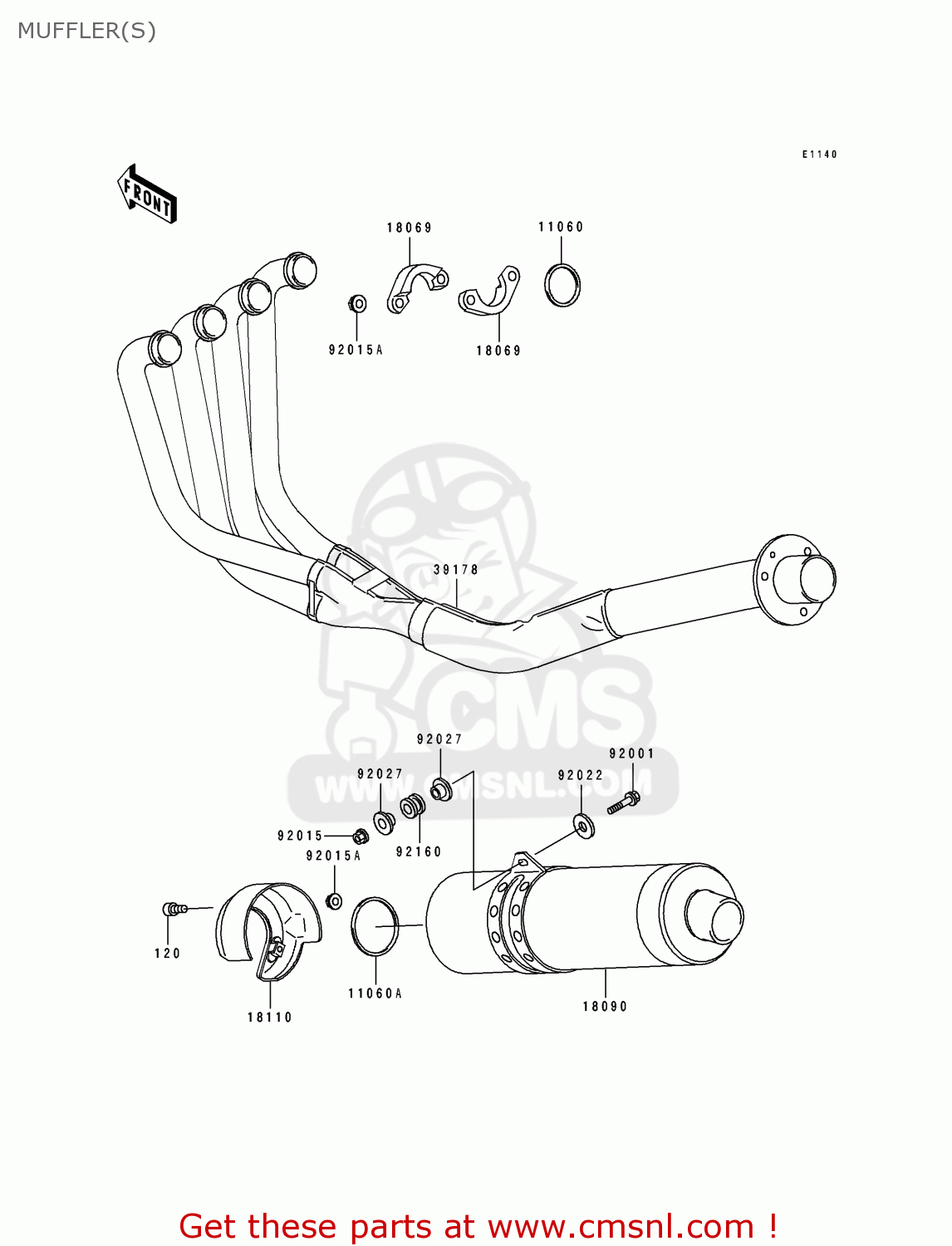

Muffler(s) diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

prices are in EUR

ref

part #

description

quantity

120

120P0610
ref: 120

BOLT-SOCKET,6X10

€ 1.00

11060

110601103
ref: 11060

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11060A

110601213
ref: 11060A

GASKET,MUFFLER CONNEC (NAS)

€ 14.00

18069

180691072
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.00

18090

180901225
ref: 18090

BODY-COMP-MUFFLER

€ 451.00

18110

181101056
ref: 18110

BODY END-MUFFLER

€ 22.50

39178

391781215
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 947.50

92001

920011910
ref: 92001

BOLT,FLANGED,8X35

€ 4.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151380
ref: 92015A

NUT,LOCK,8MM

€ 3.00

92022

920223730
ref: 92022

WASHER,8.5X19X1.2

€ 2.50

92027

920271653
ref: 92027

COLLAR,FLNG,8.8X10.6

€ 7.00

92160

921601116
ref: 92160

DAMPER

€ 3.50
