IGNITION SWITCH

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

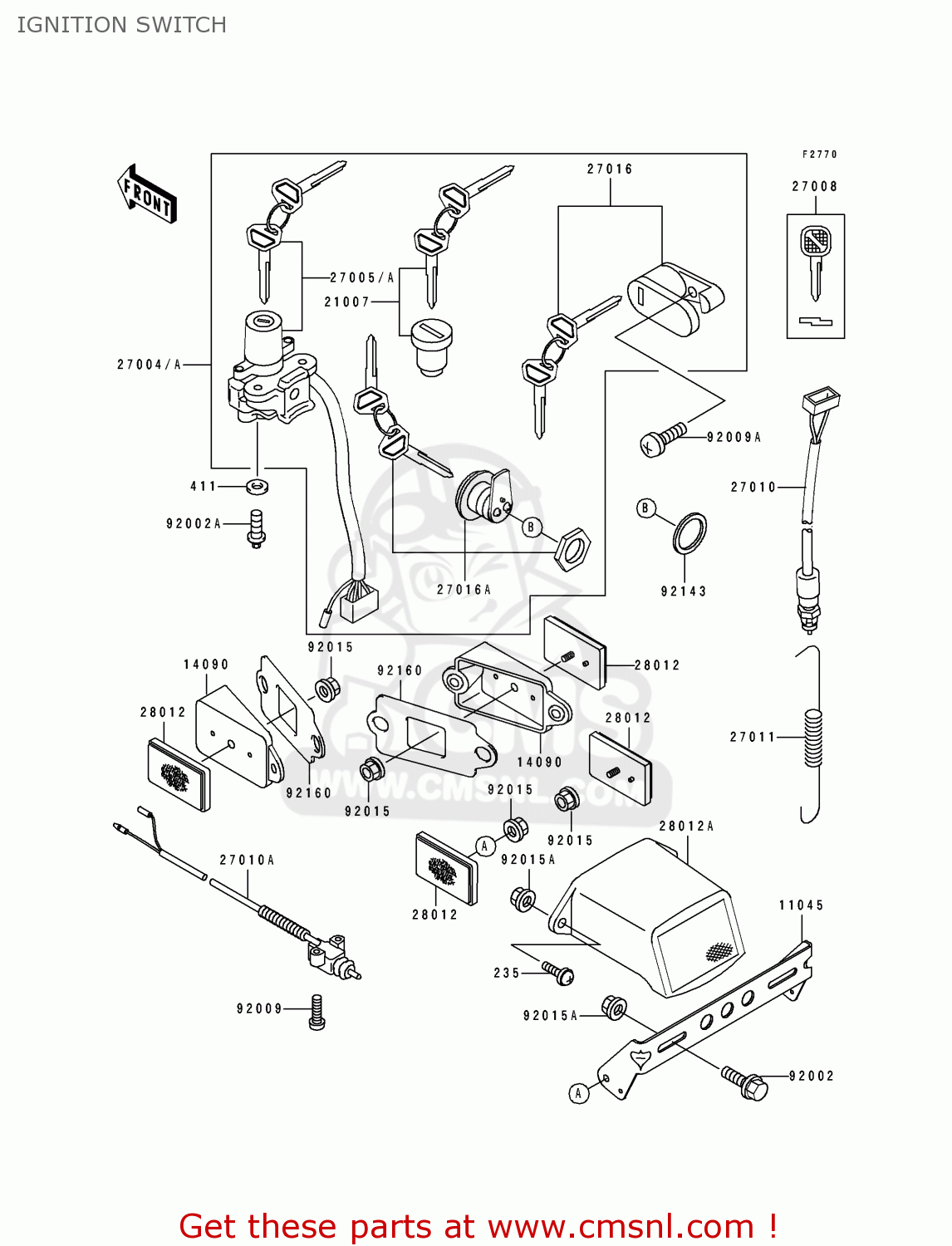

Ignition switch diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

IGNITION SWITCH ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
IGNITION SWITCH ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
IGNITION SWITCH ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
235C0620
€ 1.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
11045
110451621
ref: 11045
AR
BRACKET,REFLECTOR,RR
€ 14.00
14090
140901264
ref: 14090
AR
COVER,REFLECTOR
140901264
€ 5.50
21007
210075035
ref: 21007
ROTOR,LOCK,TANK CAP
210075035
€ 42.00
27004A
270045477
ref: 27004A
SWITCH-ASSY
€ 274.50
27005
270051179
ref: 27005
SWITCH-ASSY-IGNITION
270051179
€ 293.50
27008
270081170
ref: 27008
KEY-LOCK,BLANK
270081170
€ 12.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101223
ref: 27010A
SWITCH,SIDE STAND
270101223
€ 48.00
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270165197
ref: 27016
LOCK-ASSY,HELMET
€ 58.00
27016A
270165198
ref: 27016A
LOCK-ASSY,PAD
€ 54.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091459
ref: 92009
SCREW
920091459
€ 2.50
92009A
920091540
ref: 92009A
SCREW,5X12
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92015A
920151367
ref: 92015A
EUFGFRITUK
NUT,FLANGED,6MM
920151367
€ 0.50
92143
921431489
ref: 92143
COLLAR,22.2X28X2
€ 3.00
92160
921601395
ref: 92160
AR
DAMPER,REFLECTOR
921601395
€ 3.50
