FUEL TANK(ZX750-M2)

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

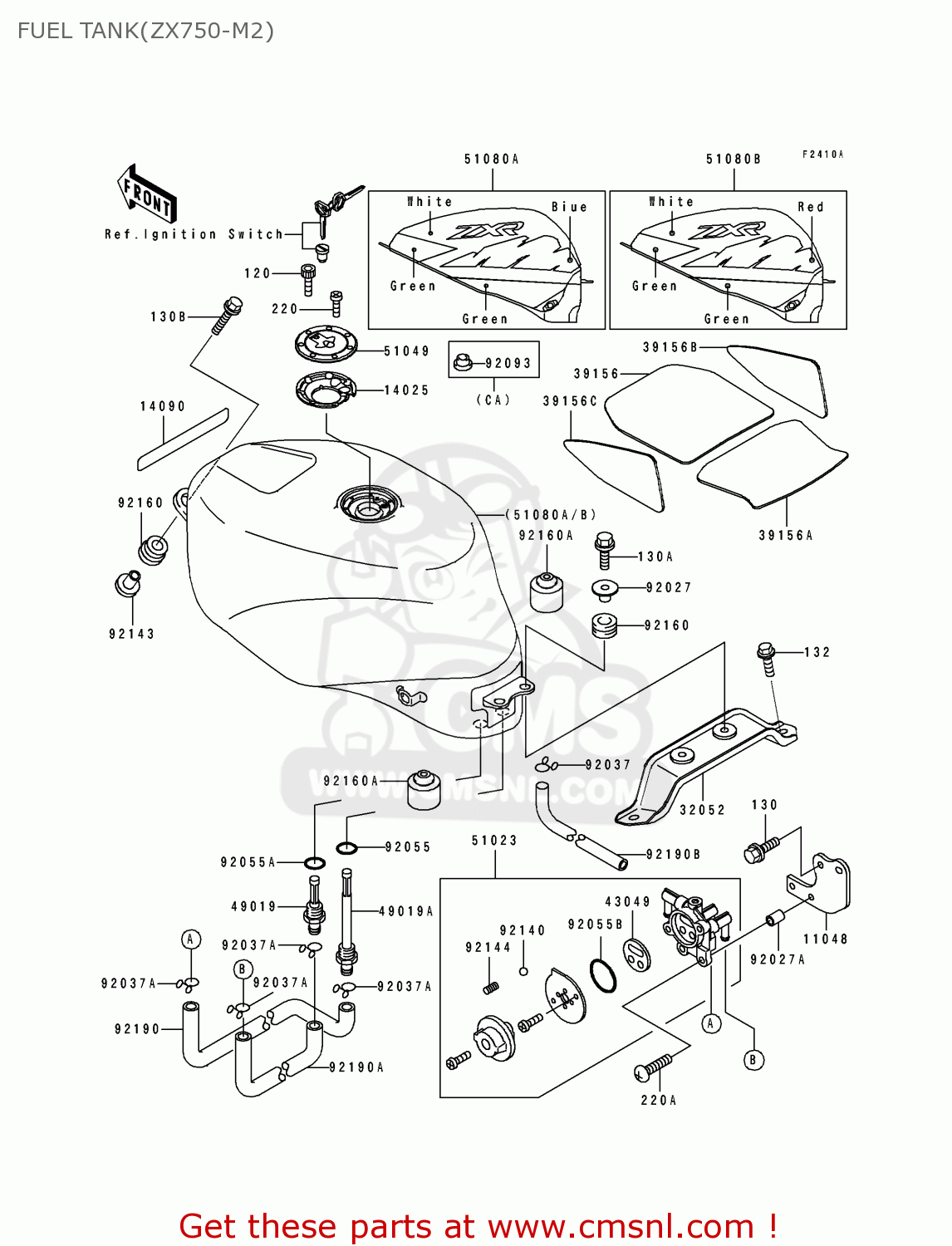

Fuel tank(zx750-m2) diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

FUEL TANK(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
FUEL TANK(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
FUEL TANK(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0630
ref: 130A
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
130B
130J0645
ref: 130B
BOLT-FLANGED,6X45,BLA
130J0645
€ 3.00
132
132J0820
ref: 132
BOLT-FLANGED-SMALL
132J0820
€ 2.50
11048
110481150
ref: 11048
BRACKET,FUEL TAP
€ 8.00
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
14090
140901338
ref: 14090
COVER,FUEL TANK
€ 3.50
32052
320521367
ref: 32052
BRACKET-TANK,RR
320521367
€ 23.50
39156
391561312
ref: 39156
PAD,FUEL TANK,FR
391561312
€ 13.50
39156A
391561313
ref: 39156A
PAD,FUEL TANK,RR
391561313
€ 12.00
39156B
391561314
ref: 39156B
PAD,FUEL TANK,SIDE,RH
391561314
€ 9.00
39156C
391561315
ref: 39156C
PAD,FUEL TANK,SIDE,LH
391561315
€ 9.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
430491066
€ 5.00
49019
490191070
ref: 49019
FILTER-FUEL
490191070
€ 15.00
49019A
490191074
ref: 49019A
FILTER-FUEL,ON
490191074
€ 15.50
51023
510231203
ref: 51023
TAP-ASSY,FUEL
510231203
€ 70.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
51080A
510805057CK
ref: 51080A
AREUUK
TANK-COMP-FUEL,GREEN/
€ 2,395.50
51080B
510805071CK
ref: 51080B
AREUFGFRIT
TANK-COMP-FUEL,GREEN/
€ 2,395.50
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
92027A
920271966
ref: 92027A
COLLAR,6.8X10X14
920271966
€ 3.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371972
ref: 92037A
CLAMP,TUBE
920371972
€ 2.50
92055
920551386
ref: 92055
RING-O,ID=9.5
920551386
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
920551387
€ 2.50
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
920551419
€ 3.00
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
921401051
€ 3.00
92143
921431515
ref: 92143
COLLAR
921431515
€ 13.50
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
921441212
€ 2.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601513
ref: 92160A
DAMPER
921601513
€ 4.50
92190
921901349
ref: 92190
TUBE,FUEL,ON
921901349
€ 12.50
92190A
921901350
ref: 92190A
TUBE,FUEL,RES
921901350
€ 11.50
92190B
921901453
ref: 92190B
TUBE,DRAIN
921901453
€ 14.50
220
220C0508
ref: 220
SCREW-PAN-CROS
220C0508
€ 1.00
220A
220C0625
ref: 220A
SCREW-PAN-CROS,6X25,B
220C0625
€ 2.50
