AIR CLEANER

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

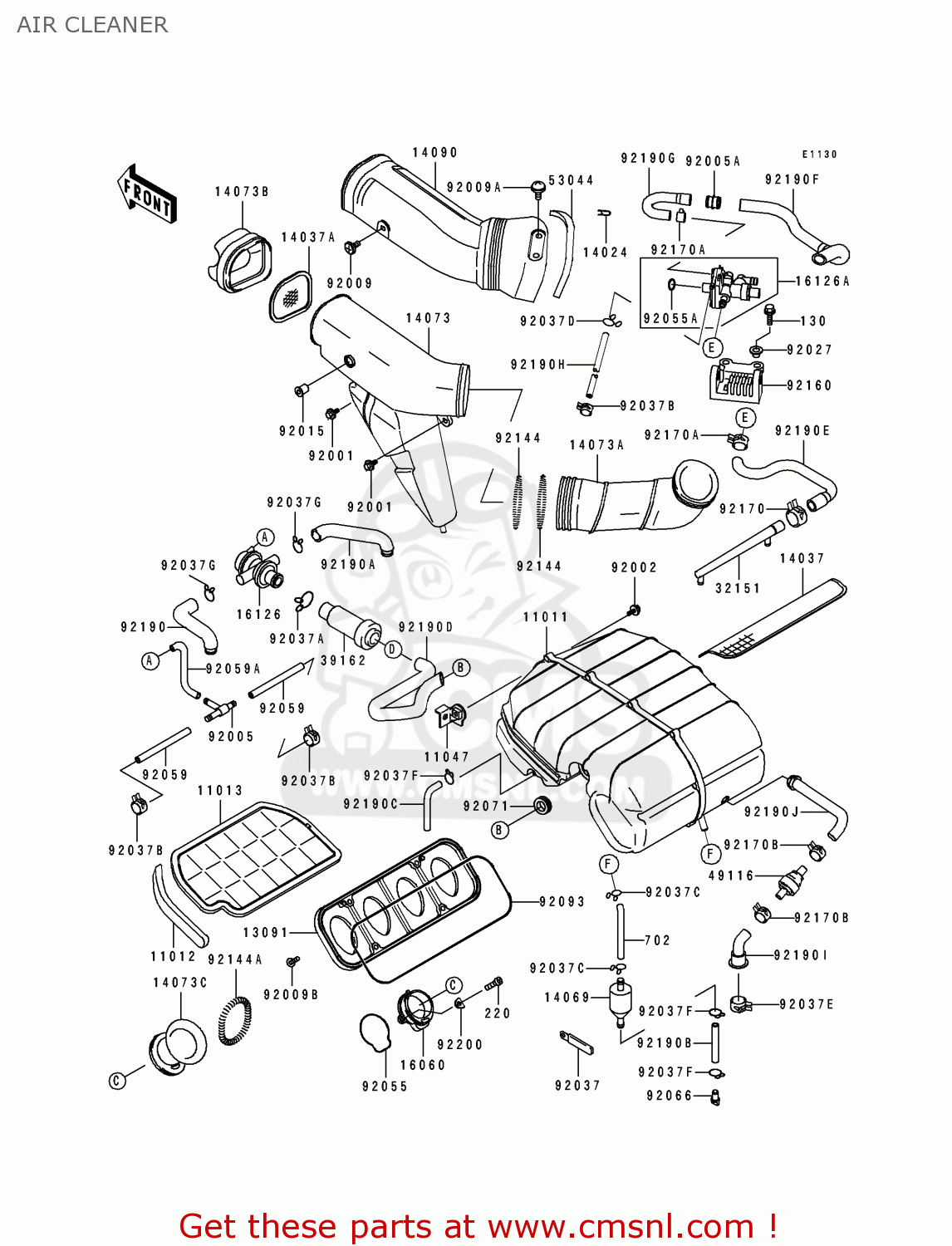

Air cleaner diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

AIR CLEANER ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
AIR CLEANER ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
AIR CLEANER ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
11011
110111391
ref: 11011
CASE-AIR FILTER
€ 134.50
11012
110121828
ref: 11012
CAP,AIR FILTER ELEMEN
€ 8.50
11013
110131224
ref: 11013
ELEMENT-AIR FILTER
110131224
€ 30.00
11047
110471968
ref: 11047
BRACKET,AIR FILTER
€ 4.00
13091
130911813
ref: 13091
HOLDER,AIR FILTER
130911813
€ 44.50
14024
140241730
ref: 14024
COVER,TRIM END
140241730
€ 3.00
14037
140371161
ref: 14037
SCREEN,AIR FILTER
140371161
€ 13.50
14037A
140371162
ref: 14037A
SCREEN,AIR DUCT
€ 5.50
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731540
ref: 14073
DUCT,AIR INTAKE,CNT
140731540
€ 46.00
14073A
140731541
ref: 14073A
DUCT,AIR INTAKE,RR
140731541
€ 50.50
14073B
140731543
ref: 14073B
DUCT,AIR INTAKE,FR
140731543
€ 19.00
14073C
140731579
ref: 14073C
DUCT
140731579
€ 20.50
14090
140901250
ref: 14090
COVER,AIR DUCT
140901250
€ 19.00
16060
160601069
ref: 16060
PIPE-INTAKE
160601069
€ 17.00
16126
161261104
ref: 16126
VALVE,AIR SWITCH
161261104
€ 176.00
16126A
161261272
ref: 16126A
VALVE,CANISTER
161261272
€ 47.00
32151
321511317
ref: 32151
PIPE
321511317
€ 17.00
39162
391621003
ref: 39162
SILENCER-INTAKE
391621003
€ 59.00
49116
491161116
ref: 49116
VALVE-ASSY
491161116
€ 12.50
53044
530441265
ref: 53044
TRIM,AIR DUCT COVER
530441265
€ 8.00
92001
920011950
ref: 92001
BOLT,6X16
920011950
€ 2.50
92002
920021136
ref: 92002
BOLT,6X16
920021136
€ 3.00
92005
920051017
ref: 92005
FITTING,TUBE
920051017
€ 6.50
92005A
920051247
ref: 92005A
FITTING
920051247
€ 4.00
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92009A
920091402
ref: 92009A
SCREW,6X10
920091402
€ 1.50
92009B
920091640
ref: 92009B
SCREW,TAPPING,6X25
920091640
€ 3.00
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92027
920271767
ref: 92027
COLLAR
920271767
€ 3.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371076
ref: 92037A
CLAMP,TUBE
920371076
€ 4.00
92037B
920371461
ref: 92037B
CLAMP,TUBE
920371461
€ 1.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
92037147
€ 4.50
92037D
920371712
ref: 92037D
CLAMP
920371712
€ 3.00
92037E
920371730
ref: 92037E
CLAMP
920371730
€ 4.50
92037F
920371972
ref: 92037F
CLAMP,TUBE
920371972
€ 2.50
92037G
92037213
ref: 92037G
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551492
ref: 92055
RING-O
920551492
€ 3.50
92055A
920551524
ref: 92055A
RING-O
920551524
€ 2.50
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
702
702A07360
ref: 702
TUBE-RUBBER
€ 6.50
92059
920591230
ref: 92059
TUBE,FUEL,4X9X140
920591230
€ 12.50
92059A
920591690
ref: 92059A
TUBE,4X9X705,WHITE
€ 7.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92093
920931320
ref: 92093
SEAL,AIR FILTER
€ 7.50
92144
921441563
ref: 92144
SPRING,DUCT
921441563
€ 6.50
92144A
921441564
ref: 92144A
SPRING
921441564
€ 8.50
92160
921601241
ref: 92160
DAMPER,VALVE
921601241
€ 13.50
92170
921701060
ref: 92170
CLAMP
921701060
€ 6.00
92170A
921701185
ref: 92170A
CLAMP
€ 5.00
92170B
921701434
ref: 92170B
CLAMP,BRAKE HOSE
€ 8.50
92190
921901197
ref: 92190
TUBE,HEAD-AIR SWITCH,
921901197
€ 13.50
92190A
921901198
ref: 92190A
TUBE,HEAD-AIR SWITCH,
921901198
€ 13.50
92190B
921901201
ref: 92190B
TUBE,7X12X160
€ 8.50
92190C
921901243
ref: 92190C
TUBE,BREATHER
€ 7.00
92190D
921901329
ref: 92190D
TUBE,AIR VALVE,L=347
€ 13.50
92190E
921901336
ref: 92190E
TUBE,CARBURETOR,L=260
€ 10.00
92190F
921901373
ref: 92190F
TUBE,CARBURETOR,L=309
€ 13.50
92190G
921901384
ref: 92190G
TUBE,VALVE,L=134
€ 6.00
92190H
921901405
ref: 92190H
TUBE,L=550
€ 10.50
92190I
921901482
ref: 92190I
TUBE,BREATHER
921901482
€ 10.00
92190J
921901483
ref: 92190J
TUBE
921901483
€ 10.00
92200
922001058
ref: 92200
WASHER,DUCT
922001058
€ 3.00
