FRONT HUB

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

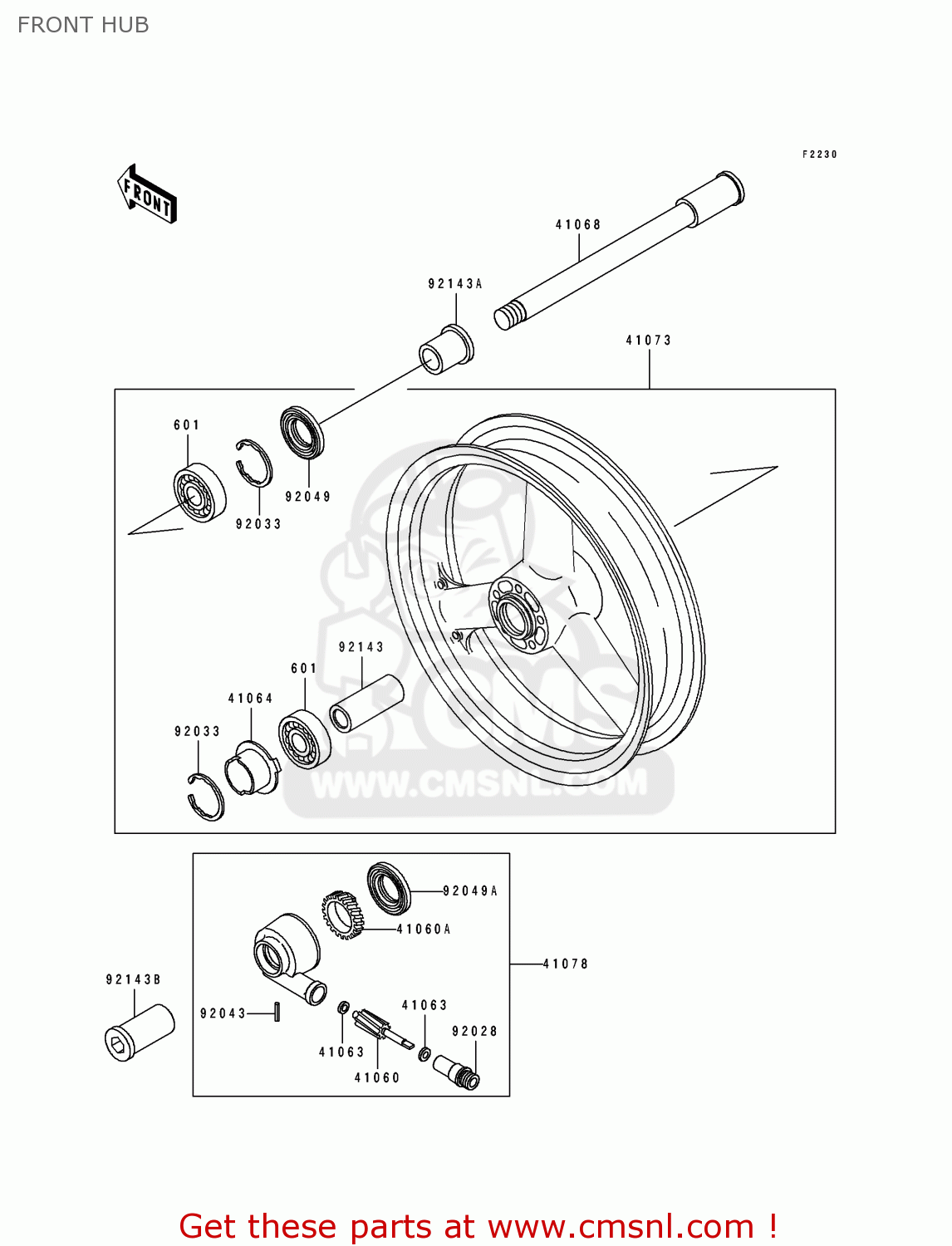

Front hub diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

FRONT HUB ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
FRONT HUB ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
FRONT HUB ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
601
601B6005UU
ref: 601
BEARING-BALL,#6005UU
601B6005UU
€ 26.00
41060
410601140
ref: 41060
GEAR-METER SCREW,9T
410601140
€ 20.50
41060A
410601141
ref: 41060A
GEAR-METER SCREW,24T
410601141
€ 25.50
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
41063001
€ 3.00
41064
410641055
ref: 41064
RECEIVER-SPEEDOMETER
410641055
€ 10.00
41068
410681327
ref: 41068
AXLE,FR
410681327
€ 61.50
41073
410731496CJ
ref: 41073
WHEEL-ASSY,FR,L.GREEN
410731496CJ
€ 684.50
41078
410781082
ref: 41078
CASE-ASSY-METER GEAR
410781082
€ 105.50
92028
920281634
ref: 92028
BUSHING,METER GEAR CA
920281634
€ 11.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92043
920431454
ref: 92043
PIN,SPRING,3X18
920431454
€ 2.50
92049
920491377
ref: 92049
SEAL-OIL,BJN 32 47 5
920491377
€ 9.50
92049A
920491378
ref: 92049A
SEAL-OIL,BJN-C2 35 52
920491378
€ 9.00
92143
921431476
ref: 92143
COLLAR,FR HUB,L=94
€ 22.50
92143A
921431477
ref: 92143A
COLLAR,FR AXLE,RH,L=1
921431477
€ 22.00
92143B
921431478
ref: 92143B
COLLAR,FR AXLE,LH,L=4
921431478
€ 32.50
