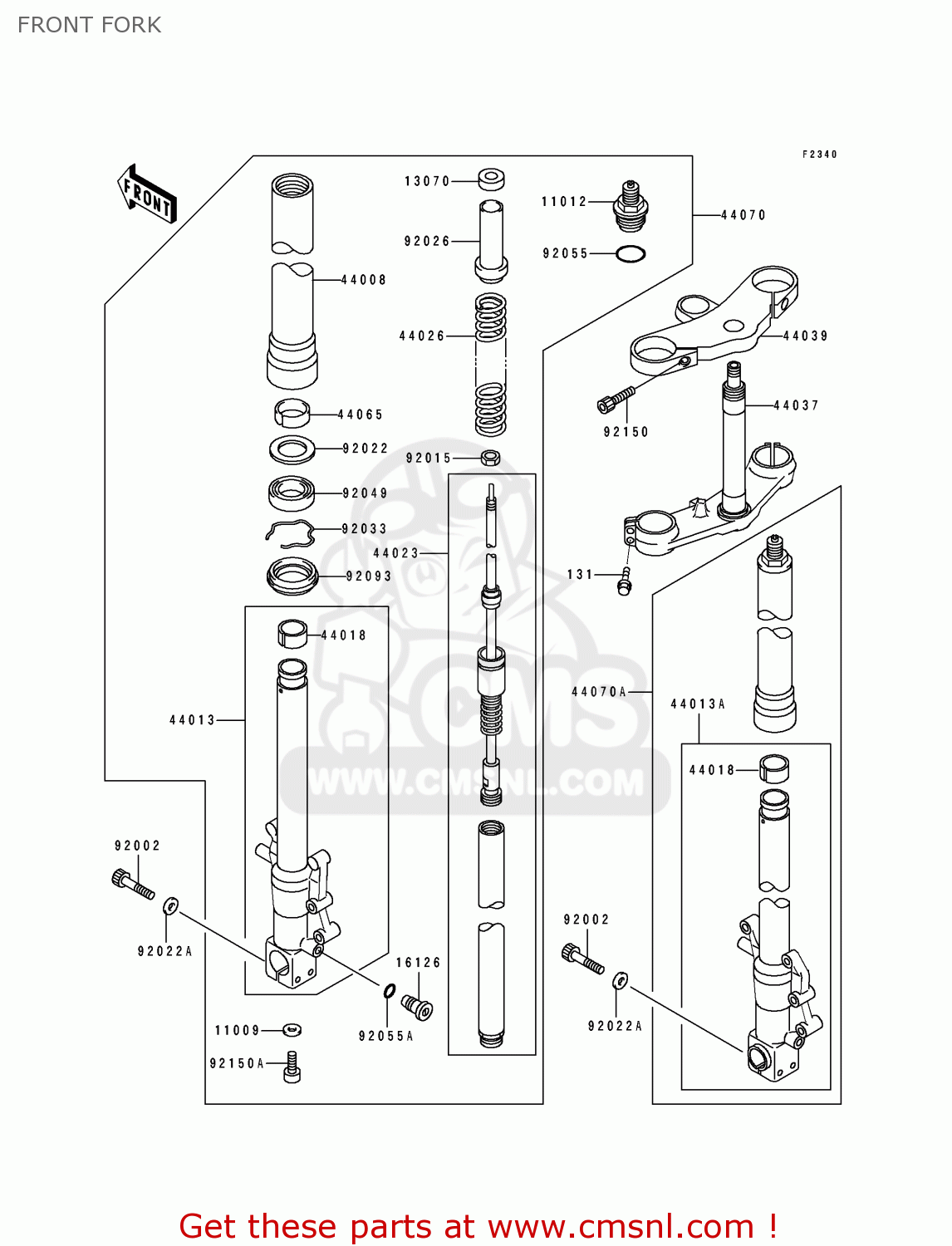

FRONT FORK

ref

part #

description

quantity

131

131G0840
ref: 131

BOLT, 8 X 40

€ 5.50

11009

110091127
ref: 11009

GASKET,FORK CYLID BOL (NAS)

€ 3.00

11012

110121791
ref: 11012

CAP,FORK TOP

€ 133.50

13070

130701236
ref: 13070

GUIDE,FORK

€ 6.00

16126

161261261
ref: 16126

VALVE,FORK

€ 91.00

44008

440081017JS
ref: 44008

PIPE-FORK OUTER,BROWN

€ 690.00

44013

440131356KF
ref: 44013

PIPE-FORK INNER,LH,SI

€ 308.00

44013A

440131357KF
ref: 44013A

PIPE-FORK INNER,RH,SI

€ 296.50

44018

440181054
ref: 44018

PISTON-FORK

€ 33.00

44023

440231079
ref: 44023

CYLINDER-COMP-FORK

€ 167.50

44026

440261500
ref: 44026

SPRING-FRONT FORK

€ 57.50

44037

440371295
ref: 44037

HOLDER-FORK UNDER

€ 452.50

44039

440391234
ref: 44039

HOLDER-FORK UPPER

€ 218.50

44065

440651096
ref: 44065

BUSHING-FRONT FORK,FO

€ 17.50

44070

440701130KF
ref: 44070

DAMPER-ASSY,FORK,LH,S

€ 1,325.00

44070A

440701131KF
ref: 44070A

DAMPER-ASSY,FORK,RH,S

€ 1,325.00

92002

920021847
ref: 92002

BOLT,SOCKET,8X45

€ 3.00

92015

920151795
ref: 92015

NUT

€ 3.50

92022

920221298
ref: 92022

WASHER,FORK OUTER TUB

€ 5.50

92022A

920221598
ref: 92022A

WASHER

€ 4.50

92026

920261410
ref: 92026

SPACER,FORK

€ 10.00

92033

920331036
ref: 92033

CIRCLIP

€ 4.00

92049

920491356
ref: 92049

SEAL-OIL

€ 13.00

92055

920551115
ref: 92055

RING-0,HOSE ASSY

€ 6.50

92055A

920551201
ref: 92055A

RING-O,AND

€ 1.00

92093

920931359
ref: 92093

SEAL,FORK OUTER TUBE

€ 14.00

92150

921501172
ref: 92150

BOLT,SOCKET,8X25

€ 1.50

92150A

921501398
ref: 92150A

BOLT,12X22

€ 5.50
