Genuine ZX Kawasaki Parts delivered quickly!

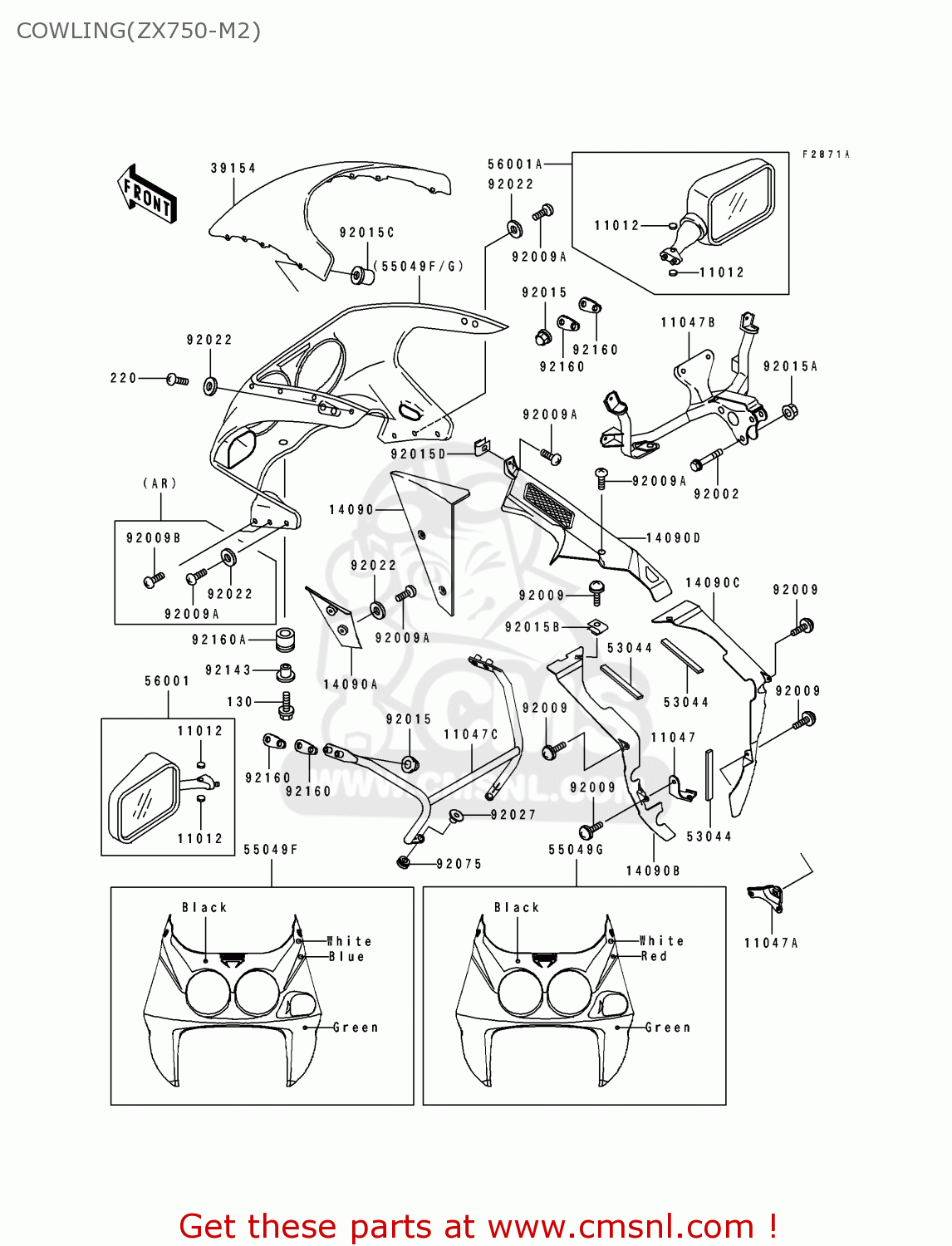

COWLING(ZX750-M2)

ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

Cowling(zx750-m2) diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

COWLING(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
COWLING(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
COWLING(ZX750-M2) ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
11012
110121818
ref: 11012
CAP,MIRROR
110121818
€ 2.00
11047
110471856
ref: 11047
BRACKET,INNER COWLING
110471856
€ 4.50
11047A
110471857
ref: 11047A
BRACKET,INNER COWLING
110471857
€ 6.00
11047B
110471860
ref: 11047B
BRACKET,UPP COWLING
110471860
€ 210.00
11047C
110471861
ref: 11047C
BRACKET,MIRROR
110471861
€ 98.50
14090
140901236
ref: 14090
COVER,RADIATOR,RH
140901236
€ 16.00
14090A
140901237
ref: 14090A
COVER,RADIATOR,LH
140901237
€ 8.00
14090B
140901265
ref: 14090B
COVER,INNER COWLING,L
140901265
€ 37.00
14090C
140901266
ref: 14090C
COVER,INNER COWLING,R
140901266
€ 39.00
14090D
140901267
ref: 14090D
COVER,INNER COWLING,F
140901267
€ 52.00
39154
391541120
ref: 39154
WINDSHIELD
€ 172.00
53044
530441248
ref: 53044
TRIM,L=150
530441248
€ 5.50
55049F
550495285CK
ref: 55049F
AREUUK
COWLING.,UPP,GREEN/WH
€ 743.00
55049G
550495286CK
ref: 55049G
AREUFGFRIT
COWLING.,UPP,GREEN/WH
€ 631.00
56001
5600113766F
ref: 56001
MIRROR-ASSY,LH,P.WHIT
5600113766F
€ 80.00
56001A
5600113776F
ref: 56001A
MIRROR-ASSY,RH,P.WHIT
5600113776F
€ 80.00
92002
920021198
ref: 92002
BOLT,8X35
920021198
€ 3.00
92009
920091555
ref: 92009
SCREW
920091555
€ 2.50
92009A
920091654
ref: 92009A
AR
SCREW
920091654
€ 0.50
92009A
920091654
ref: 92009A
EUFGFRITUK
SCREW
920091654
€ 0.50
92009B
920091656
ref: 92009B
AR
SCREW
920091656
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015B
920151602
ref: 92015B
NUT,6MM
920151602
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
920151757A
€ 5.00
92015D
920151798
ref: 92015D
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
AR
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022
920221521
ref: 92022
EUFGFRITUK
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
220
220C0516
ref: 220
SCREW-PAN-CROS
220C0516
€ 0.50
92075
92075277
ref: 92075
DAMPER
92075277
€ 1.00
92143
921431026
ref: 92143
COLLAR
921431026
€ 4.00
92160
921601089
ref: 92160
DAMPER,MIRROR
921601089
€ 4.50
92160A
921601141
ref: 92160A
DAMPER
921601141
€ 3.00
