Genuine ZX Kawasaki Parts delivered quickly!
home
CLUTCH
ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT

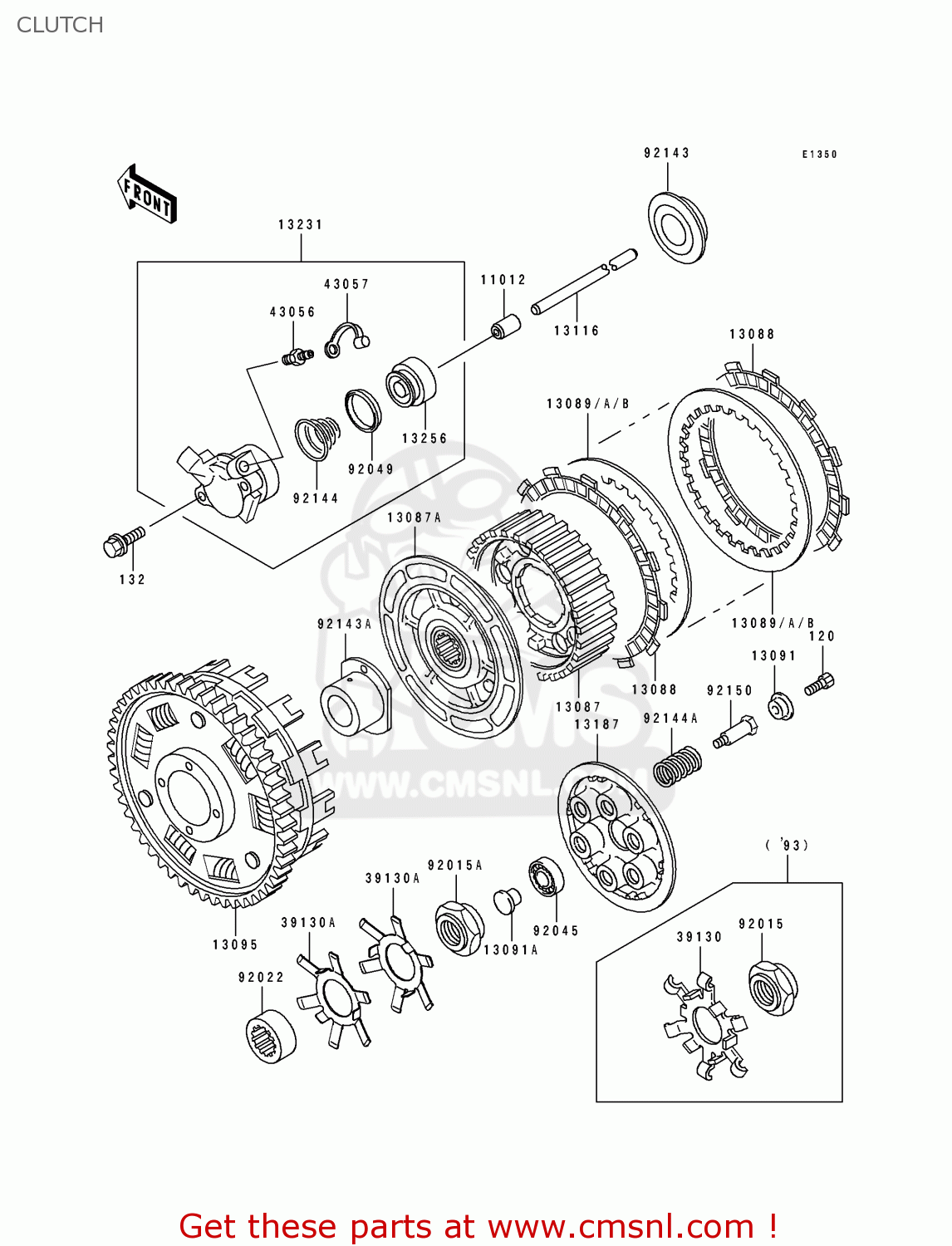

Clutch diagram ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
CLUTCH ZX750M2 ZXR750R 1994 EUROPE UK FR AR FG IT
×
prices are in EUR
ref
part #
description
quantity
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
11012
110121569
ref: 11012
CAP,PUSHROD
€ 5.50
13087
130871130
ref: 13087
HUB-CLUTCH
€ 177.00
13087A
130871132
ref: 13087A
HUB-CLUTCH
€ 145.50
13088
130881087
ref: 13088
PLATE-FRICTION (NAS)
€ 18.50
13089
13089026
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13089A
130891004
ref: 13089A
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13089B
130891067
ref: 13089B
PLATE-CLUTCH,T=2.6 (NAS)
€ 7.00
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13091A
130911085
ref: 13091A
HOLDER,CLUTCH PUSH RO
€ 6.50
13095
130951262
ref: 13095
HOUSING-COMP-CLUTCH
€ 394.00
13116
131161141
ref: 13116
ROD-PUSH
€ 28.00
13187
131871067
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 56.50
13231
132311065
ref: 13231
RELEASE-ASSY-CLUTCH
€ 125.00
13256
132561052
ref: 13256
PISTON
€ 43.50
39130A
391301071
ref: 39130A
SPRING-LEAF
€ 7.50
43056
430561052
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
92015A
920151929
ref: 92015A
NUT
€ 17.50
92022
920221782
ref: 92022
WASHER,TOOTHED,21.7X3
€ 14.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92143
921431468
ref: 92143
COLLAR
€ 41.50
92143A
921431638
ref: 92143A
COLLAR
€ 50.50
92144
921441084
ref: 92144
SPRING,CLUTCH RELEASE
€ 5.50
92144A
921441630
ref: 92144A
SPRING,CLUTCH
€ 7.50
92150
921501477
ref: 92150
BOLT,CLUTCH
€ 5.50
