TURN SIGNALS

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

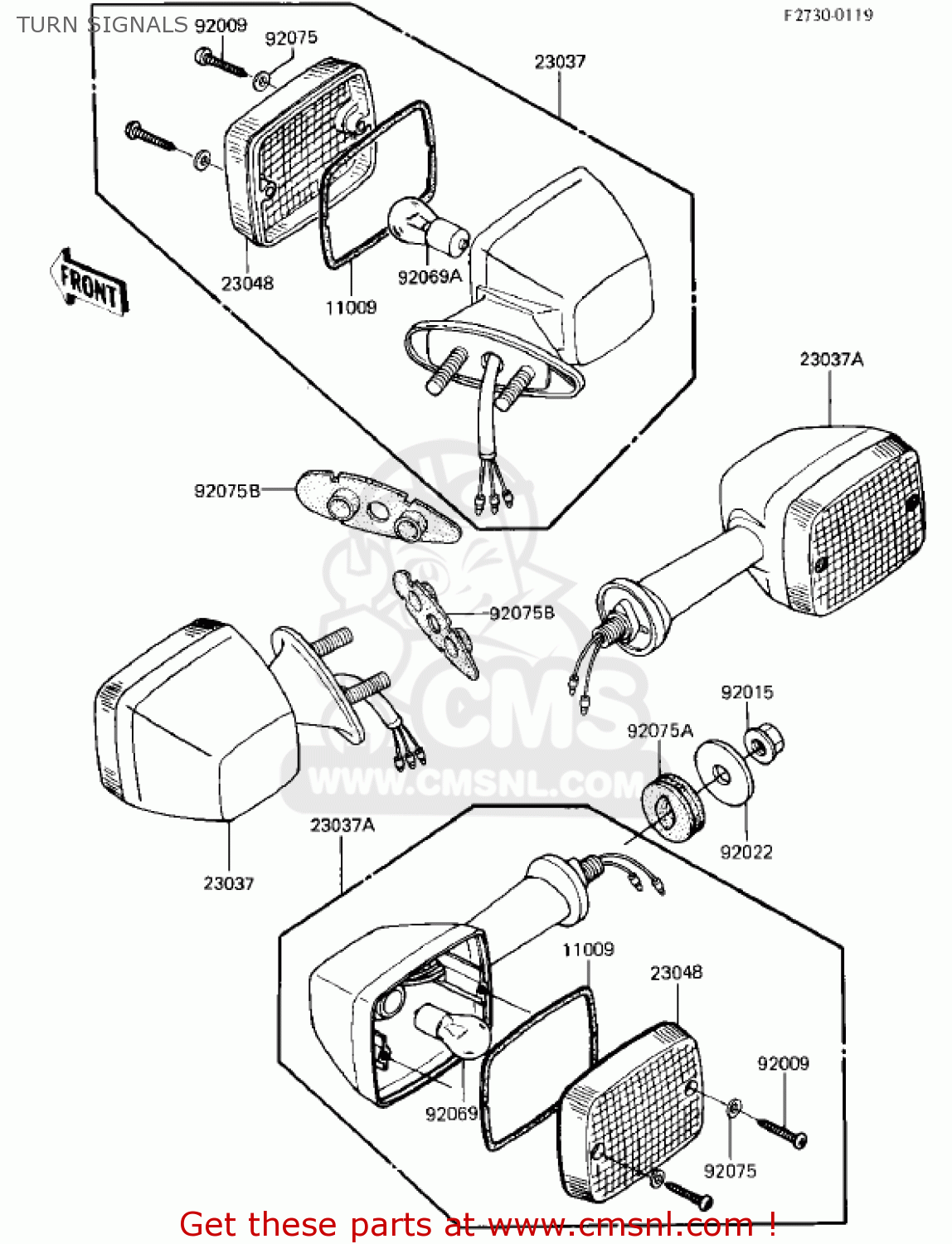

Turn signals diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091150
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 3.50

23037

230371150
ref: 23037

LAMP-ASSY-SIGNAL

€ 58.00

23037A

230371151
ref: 23037A

LAMP-ASSY-SIGNAL,RR

€ 52.00

23048

230481019
ref: 23048

LENS-SIGNAL LAMP,7460

€ 14.00

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92022

920221246
ref: 92022

WASHER,10.5X37X1.6

€ 3.50

92069

92069055
ref: 92069

BULB 12V 32CP

€ 4.50

92069A

92069060
ref: 92069A

BULB.12V 23/8W

€ 5.00

92075

23058002
ref: 92075

WASHER,PLAIN,4MM

€ 2.00

92075A

920751391
ref: 92075A

DAMPER,SIGNAL LAMP

€ 8.00

92075B

920751506
ref: 92075B

DAMPER,SIGNAL LAMP,FR

€ 6.50
