THROTTLE ASSY (ZX750-E1)

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

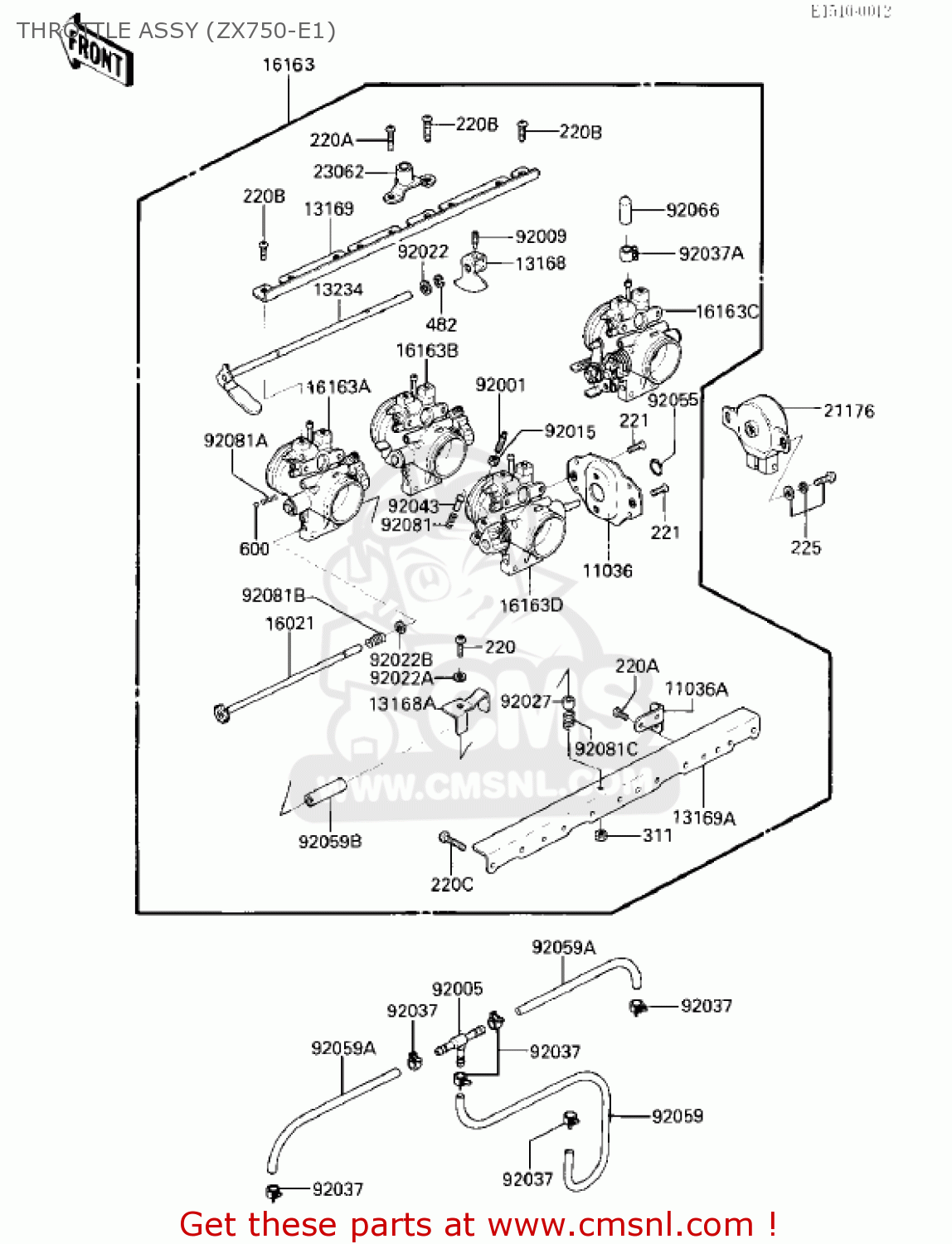

Throttle assy (zx750-e1) diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

THROTTLE ASSY (ZX750-E1) ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
THROTTLE ASSY (ZX750-E1) ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
THROTTLE ASSY (ZX750-E1) ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11036
110361481
ref: 11036
BRACKET-A,THROTTLE SE
€ 35.00
11036A
110361491
ref: 11036A
BRACKET-A,STAY LWR
€ 8.50
13168
131681118
ref: 13168
LEVER,FAST IDLE
131681118
€ 9.50
13168A
131681218
ref: 13168A
LEVER,IDLING LINK
€ 22.50
13169
131691521
ref: 13169
PLATE,THROTTLE STAY U
€ 22.00
13169A
131691727
ref: 13169A
PLATE,THROTTLE STAY
€ 36.50
13234
132341008
ref: 13234
SHAFT-COMP,FAST IDLE
132341008
€ 49.00
16021
160211044
ref: 16021
SCREW-THROTTLE STOP
160211044
€ 28.50
16163
161631053
ref: 16163
THROTTLE-ASSY
€ 565.50
16163A
161631059
ref: 16163A
THROTTLE-ASSY,LH,OUTS
161631059
€ 103.00
16163B
161631060
ref: 16163B
THROTTLE-ASSY,LH,INSI
161631060
€ 86.50
16163C
161631061
ref: 16163C
THROTTLE-ASSY,RH,INSI
161631061
€ 109.00
16163D
161631062
ref: 16163D
THROTTLE-ASSY,RH,OUTS
161631062
€ 67.00
21176
211761004
ref: 21176
SENSOR,THROTTLE
211761004
€ 460.00
23062
230621030
ref: 23062
BRACKET-COMP
230621030
€ 38.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
920011447
€ 6.50
92005
920051017
ref: 92005
FITTING,TUBE
920051017
€ 6.50
92009
920091147
ref: 92009
SCREW,FAST IDLE LEVER
€ 6.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
920151119
€ 3.50
92022
16039019
ref: 92022
WASHER-PLAIN
16039019
€ 3.00
92022A
16039038
ref: 92022A
WASHER,PLAIN
€ 3.00
92022B
920221361
ref: 92022B
WASHER,THROTTLE STOP
€ 1.50
92027
920271203
ref: 92027
COLLAR,STEPPED
920271203
€ 5.00
92037
920371461
ref: 92037
CLAMP,TUBE
920371461
€ 1.00
92037A
920371462
ref: 92037A
CLAMP
€ 1.00
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
920431079
€ 3.50
92055
920551226
ref: 92055
RING-O,THROTTLE SENSO
920551226
€ 5.50
92059
920591043
ref: 92059
TUBE,TUBE 4X9X290
€ 7.00
92059A
920591162
ref: 92059A
TUBE, VACUUM, LONG
920591162
€ 12.50
92059B
920591371
ref: 92059B
TUBE,ANTI-VIBRATION
€ 3.50
92066
92068006
ref: 92066
RUBBER PLUG
92068006
€ 2.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
920811260
€ 3.50
92081B
920811538
ref: 92081B
SPRING,THROTTLE STOP
€ 2.00
92081C
920811539
ref: 92081C
SPRING,IDLING LINK
€ 9.50
220
220B0418
ref: 220
SCREW-PAN-CROS,4X18
€ 3.00
220A
220C0506
ref: 220A
SCREW-PAN-CROS
€ 1.50
220B
220C0510
ref: 220B
SCREW-PAN-CROS
220C0510
€ 2.50
220C
220C0616
ref: 220C
SCREW-PAN-CROS,6X12,B
€ 2.50
221
221B0510
ref: 221
SCREW-CNTSNK HD,5X10
221B0510
€ 2.50
225
225B0510
ref: 225
SCREW-PAN-WSP-CROS
€ 0.50
311
311B0400
ref: 311
NUT-HEX,4MM
311B0400
€ 0.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
482L4000
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
600A0400
€ 2.00
