Genuine ZX Kawasaki Parts delivered quickly!


MUFFLERS/TURBOCHARGER

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

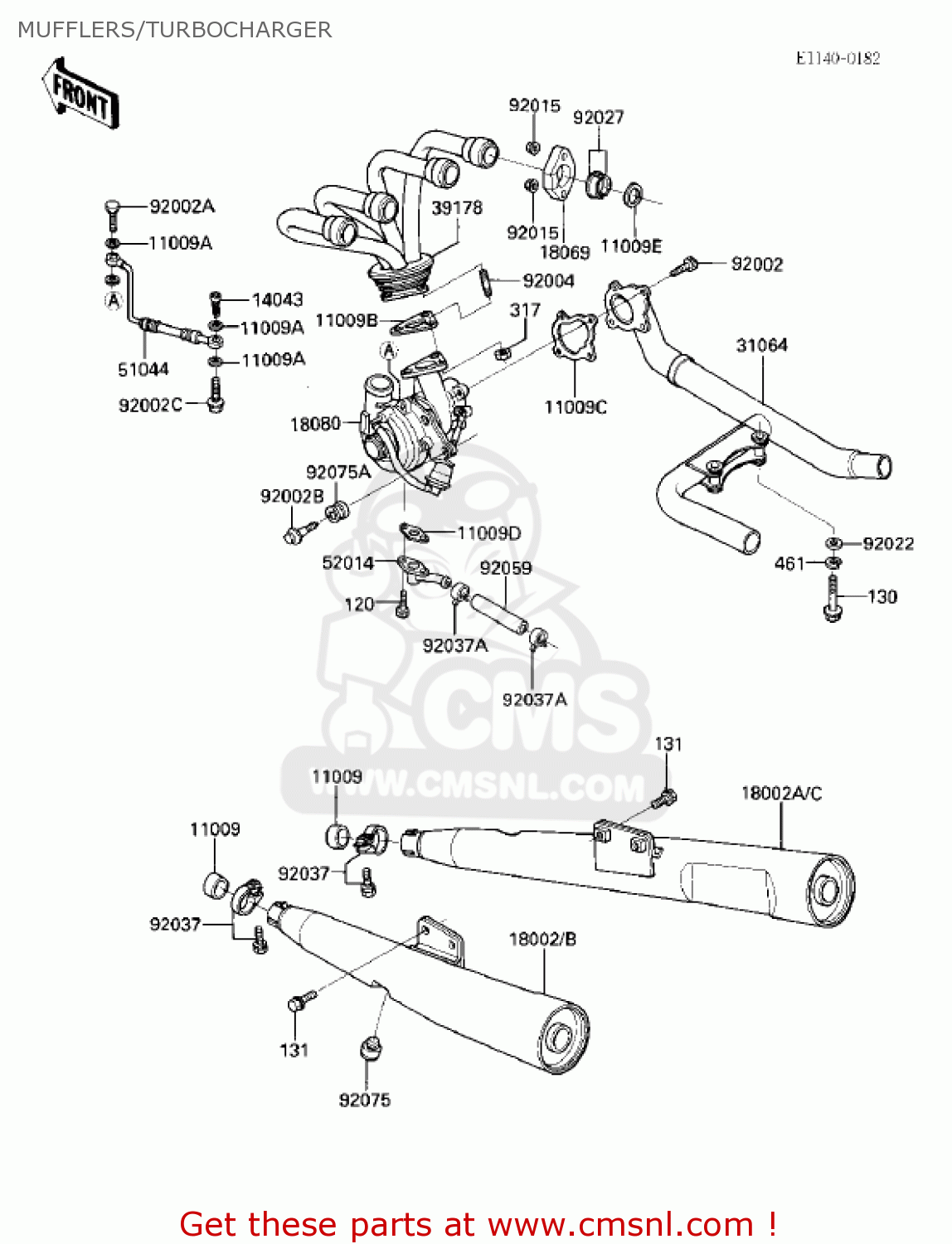

Mufflers/turbocharger diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

MUFFLERS/TURBOCHARGER ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
MUFFLERS/TURBOCHARGER ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
MUFFLERS/TURBOCHARGER ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110601068
ref: 11009
GASKET,MANIFOLD EXHAU (NAS)
110601068
€ 20.50
11009A
110091105
ref: 11009A
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009B
110091353
ref: 11009B
GASKET,EXHAUST MANIFO (NAS)
110091353
€ 4.50
11009C
110091354
ref: 11009C
GASKET,PIPE COMP (NAS)
110091354
€ 12.50
11009D
110091358
ref: 11009D
GASKET,ELBOW (MCA)
110091358
€ 3.00
11009E
110091408
ref: 11009E
GASKET,EXHAUST PIPE H (MCA)
110091408
€ 12.50
14043
140431052
ref: 14043
FILTER,OIL
140431052
€ 16.50
18002
180021508
ref: 18002
CA,US
MUFFLER BODY,COMPLETE,LH
€ 311.50
18002A
180021509
ref: 18002A
MUFFLER BODY,COMPLETE,RH
€ 264.50
18002B
180021510
ref: 18002B
BODY-COMP-MUFFLER,LH
€ 333.00
18002C
180021511
ref: 18002C
BODY-COMP-MUFFLER,RH
€ 333.00
18069
180691029
ref: 18069
HOLDER-EXHAUST PIPE,F
180691029
€ 15.00
18080
180801052
ref: 18080
TURBOCHARGER-ASSY
€ 2,779.00
31064
310641055
ref: 31064
PIPE-COMP
€ 260.50
39178
391781073
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 412.50
51044
510441051
ref: 51044
TUBE-ASSY
510441051
€ 70.50
52014
520141051
ref: 52014
ELBOW
€ 31.50
92002
920021146
ref: 92002
BOLT,SOCKET,8X16
€ 2.50
92002A
920021147
ref: 92002A
BOLT,BANJO,10X26
920021147
€ 6.00
92002B
920021148
ref: 92002B
BOLT
€ 6.00
92002C
920021172
ref: 92002C
BOLT,10X35
920021172
€ 7.00
92004
920041130
ref: 92004
STUD,8X18
€ 6.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
920151380
€ 3.00
92022
920221396
ref: 92022
WASHER,10.5X26X2.3,BL
920221396
€ 2.00
92027
920271456
ref: 92027
COLLAR,L=14.5,BLACK
920271456
€ 3.00
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
920371270
€ 13.50
92037A
920371460
ref: 92037A
CLAMP
920371460
€ 7.50
92059
920591360
ref: 92059
TUBE,15X22.4X95
920591360
€ 15.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
920751563
ref: 92075A
DAMPER
920751563
€ 3.50
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
130
130J0855
ref: 130
BOLT-FLANGED,8X55
€ 2.50
131
131J0825
ref: 131
BOLT-FLANGED,8X20,BLA
131J0825
€ 2.00
317
317R0800
ref: 317
NUT-HEX-SMALL
317R0800
€ 1.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
