TRANSMISSION

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

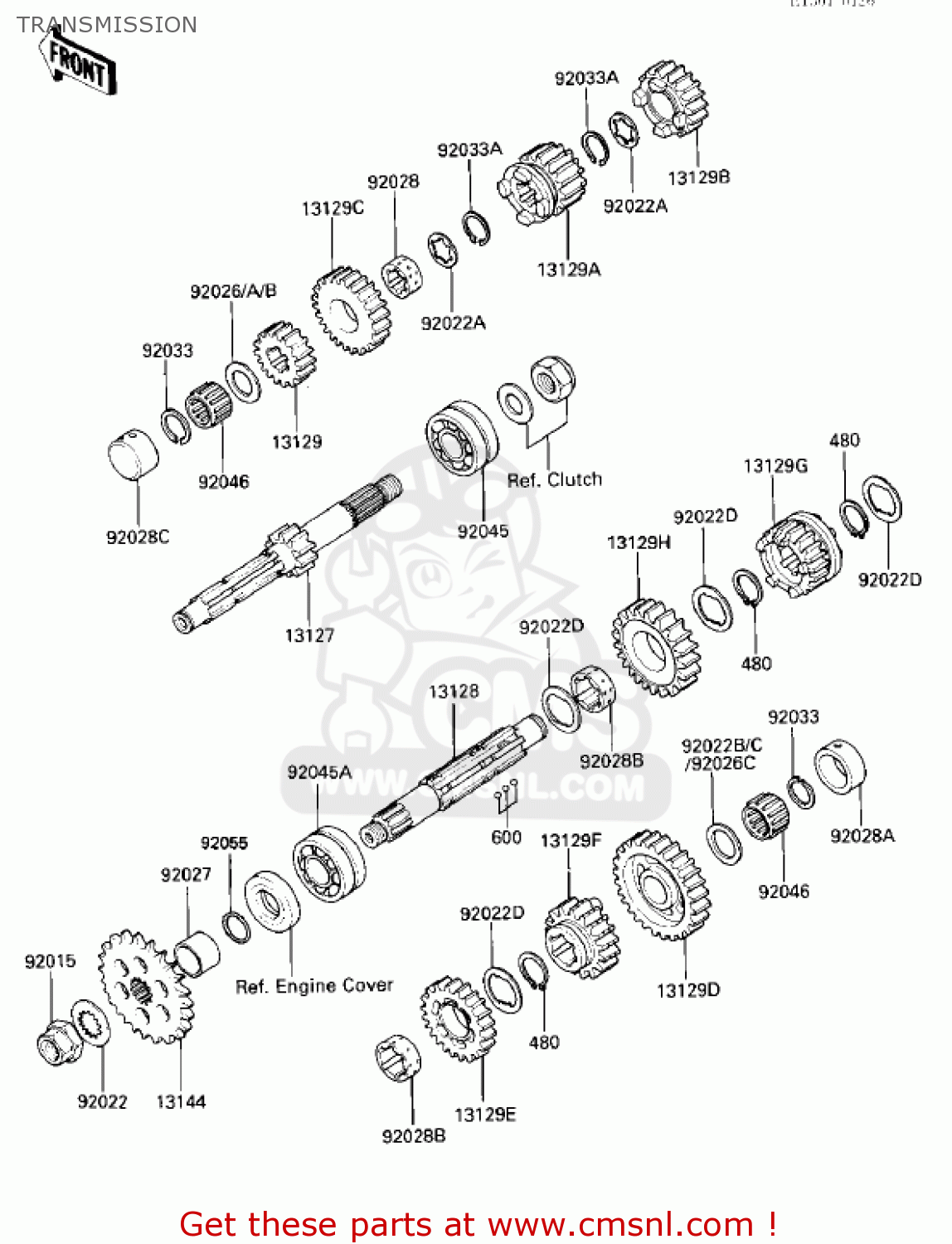

Transmission diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

TRANSMISSION ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
TRANSMISSION ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
TRANSMISSION ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13127
131271103
ref: 13127
SHAFT-TRANSMISSION IN
131271103
€ 130.00
13128
131281102
ref: 13128
SHAFT-TRANSMISSION OU
131281102
€ 113.00
13129
131291506
ref: 13129
GEAR,INPUT 2ND,17T
131291506
€ 26.00
13129A
131291507
ref: 13129A
GEAR,INPUT 3RD,22T
€ 105.00
13129B
131291508
ref: 13129B
GEAR,INPUT 4TH,22T
€ 84.00
13129C
131291509
ref: 13129C
GEAR,INPUT TOP,24T
€ 86.00
13129D
131291510
ref: 13129D
GEAR,OUTPUT LOW,32T
131291510
€ 48.50
13129E
131291512
ref: 13129E
GEAR,OUTPUT 3RD,28T
131291512
€ 30.50
13129F
131291513
ref: 13129F
GEAR,OUTPUT 4TH,23T
131291513
€ 46.50
13129G
131291514
ref: 13129G
GEAR,OUTPUT TOP,20T
131291514
€ 36.00
13129H
131291574
ref: 13129H
GEAR-OUTPUT 2ND,28T
€ 75.00
13144
131441102
ref: 13144
SPROCKET-OUTPUT,15T
131441102
€ 43.00
92015
920151254
ref: 92015
NUT,20MM
920151254
€ 10.50
92022
922001065
ref: 92022
WASHER
922001065
€ 4.50
92022A
920221139
ref: 92022A
WASHER,TOOTHED,28.3X3
920221139
€ 4.00
92022B
92022212
ref: 92022B
WASHER-PLAIN,22MM
92022212
€ 6.50
92022C
92022213
ref: 92022C
WASHER,22.3X35X1.2
92022213
€ 7.00
92022D
92024069
ref: 92022D
WASHER,TOOTHED,30.5X3
92024069
€ 3.50
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
920261224
€ 6.00
92026A
920261225
ref: 92026A
SPACER,22X35.5X2.4
920261225
€ 6.50
92026B
920261226
ref: 92026B
SPACER,22X35.5X1.8
920261226
€ 6.50
92026C
920261226
ref: 92026C
SPACER,22X35.5X1.8
920261226
€ 6.50
92027
920271665
ref: 92027
COLLAR,25X32X29.5
920271665
€ 42.00
92028
920281255
ref: 92028
BUSHING,INPUT TOP GEA
920281255
€ 27.00
92028A
920281256
ref: 92028A
BUSHING,30X38X16.6
920281256
€ 12.50
92028B
920281257
ref: 92028B
BUSHING,OUTPUT GEAR
920281257
€ 23.00
92028C
920281256
ref: 92028C
BUSHING,30X38X16.6
920281256
€ 12.50
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92045
920451101
ref: 92045
BEARING-BALL,N4-25BGS
920451101
€ 70.00
92045A
920451102
ref: 92045A
BEARING-BALL,V2-25BGS
€ 68.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
