Genuine ZX Kawasaki Parts delivered quickly!


FUEL INJECTION EQUIPMENT

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

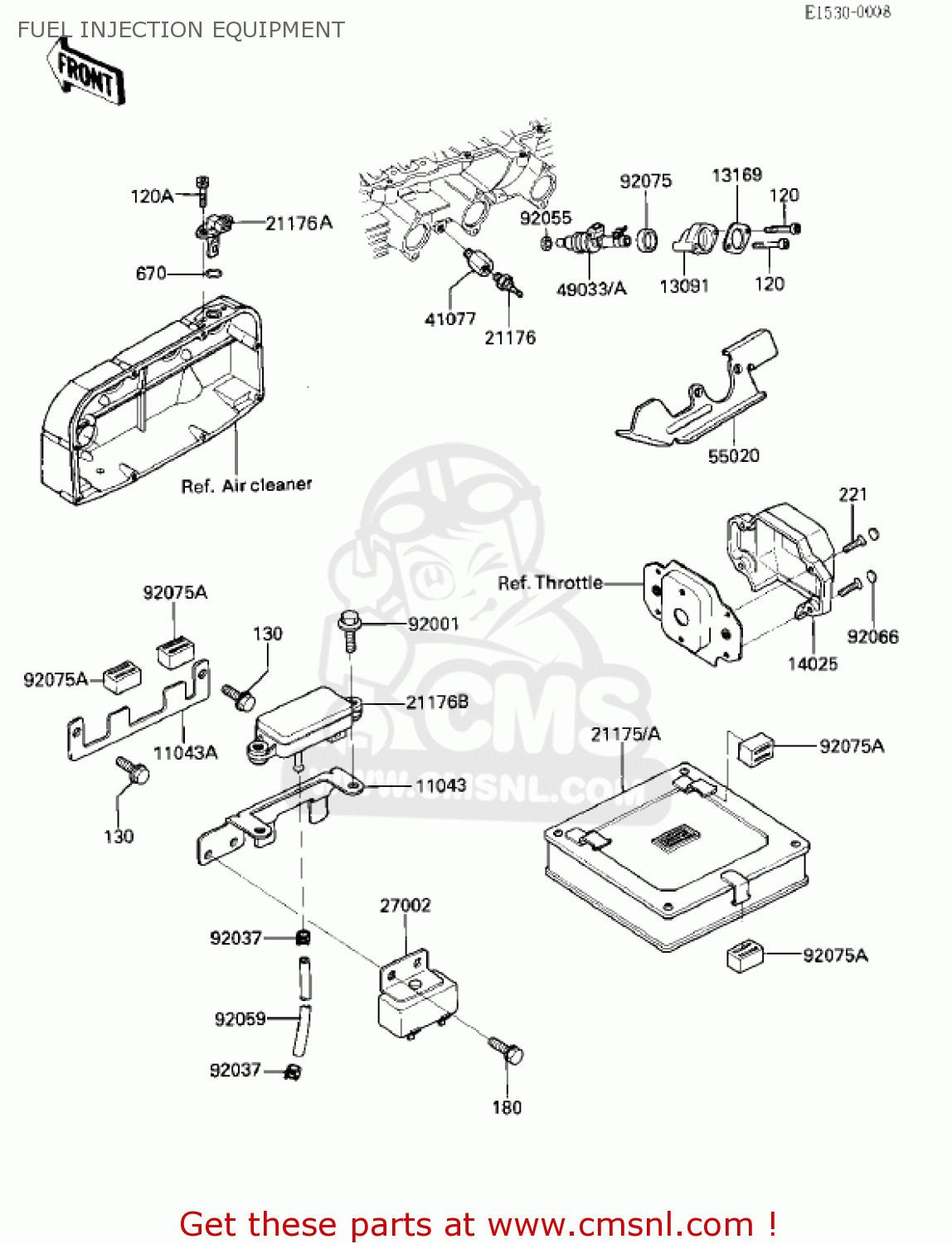

Fuel injection equipment diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

FUEL INJECTION EQUIPMENT ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
FUEL INJECTION EQUIPMENT ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
FUEL INJECTION EQUIPMENT ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11043
110431231
ref: 11043
BRACKET-B,SENSOR
€ 7.00
11043A
110431473
ref: 11043A
BRACKET,SENSOR
110431473
€ 4.50
13091
130911092
ref: 13091
HOLDER,FUEL INJECTOR
130911092
€ 9.50
13169
131691434
ref: 13169
PLATE,FUEL INJECTOR,B
131691434
€ 4.00
14025
140251753
ref: 14025
COVER,THROTTLE SENSOR
140251753
€ 17.50
21175
211751051
ref: 21175
CA,US
ELECTRONIC CONTROL UNIT
€ 1,231.00
21175A
211751053
ref: 21175A
CN
CONTROL UNIT-ELECTRON
211751053
€ 1,146.00
21176
211761002
ref: 21176
SENSOR-TEMPERATURE
211761002
€ 86.50
21176A
211761051
ref: 21176A
SENSOR,AIR TEMPERATUR
€ 211.50
21176B
211761052
ref: 21176B
SENSOR,PRESSURE
€ 364.50
27002
270021007
ref: 27002
RELAY-ASSY
270021007
€ 89.00
41077
410771004
ref: 41077
ADAPTER,SENSOR
410771004
€ 10.50
49033
490331052
ref: 49033
CA,US
NOZZLE-INJECTION
€ 311.00
49033A
490331053
ref: 49033A
CN
NOZZLE-INJECTION
€ 311.00
55020
550201185
ref: 55020
GUARD,FUEL INJECTOR
€ 8.50
92001
920011826
ref: 92001
BOLT,6X20
920011826
€ 2.50
92037
920371461
ref: 92037
CLAMP,TUBE
920371461
€ 1.00
92055
920551082
ref: 92055
RING-O,FUEL INJECT
920551082
€ 8.00
92059
920591365
ref: 92059
TUBE,4X9X80
€ 9.50
92066
920661107
ref: 92066
CA,US
PLUG,THROTTLE,SENSOR
€ 1.50
92075
920751240
ref: 92075
DAMPER,FUEL INJECT
920751240
€ 3.50
92075A
920751312
ref: 92075A
DAMPER,ELECTRONIC CON
920751312
€ 11.00
120
120S0540
ref: 120
BOLT-SOCKET
120S0540
€ 2.00
120A
120S0610
ref: 120A
BOLT-SOCKET
120S0610
€ 1.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
221
221C0310
ref: 221
SCREW-CSK-CROS
221C0310
€ 2.00
670
670B2012
ref: 670
O RING,12MM
670B2012
€ 1.00
