FRONT FORK

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

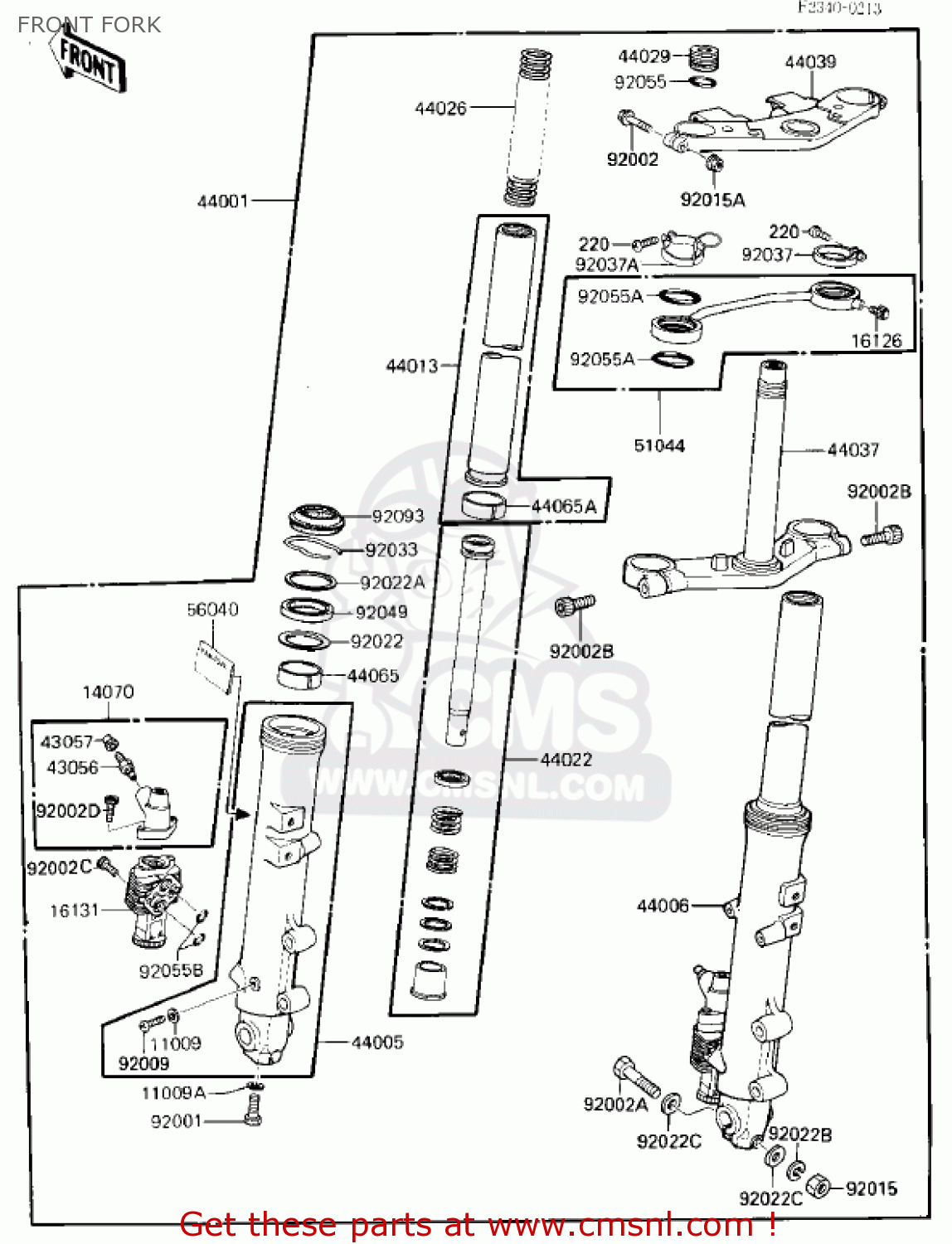

Front fork diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

FRONT FORK ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
FRONT FORK ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
FRONT FORK ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
44045057
€ 3.00
14070
140701055
ref: 14070
BODY-BREATHER,FORK,AN
140701055
€ 157.00
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
16131
161311054
ref: 16131
BODY-VALVE,RELIEF
€ 150.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
44001
440011504
ref: 44001
FORK-FRONT
€ 1,283.00
44005
440051130
ref: 44005
PIPE-LEFT FORK OUTER
440051130
€ 176.50
44006
440061130
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131208
ref: 44013
PIPE-FORK INNER
€ 150.00
44022
440221157
ref: 44022
CYLINDER-FORK
440221157
€ 60.50
44026
440261263
ref: 44026
SPRING-FRONT FORK
€ 39.00
44029
440291035
ref: 44029
SEAT-FORK SPRING
440291035
€ 16.50
44037
440371154
ref: 44037
HOLDER-FORK UNDER
440371154
€ 151.00
44039
440391073
ref: 44039
HOLDER-FORK UPPER
440391073
€ 197.50
44065
440651051
ref: 44065
BUSHING-FRONT FORK
440651051
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
440651058
€ 20.00
51044
510441027
ref: 51044
TUBE-ASSY
€ 94.00
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
560401030
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
44041040
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
920021158
€ 6.00
92002A
920021163
ref: 92002A
BOLT,8X60
€ 5.50
92002B
920021164
ref: 92002B
BOLT,SOCKET,12X30
€ 8.50
92002C
920021166
ref: 92002C
BOLT,SOCKET,6X16
920021166
€ 4.50
92002D
920021289
ref: 92002D
BOLT,SOCKET,5X12
€ 2.50
92009
920091324
ref: 92009
SCREW,4X8
920091324
€ 2.50
92015
920151400
ref: 92015
NUT,8MM
920151400
€ 3.00
92015A
920151408
ref: 92015A
NUT,FLANGED,8MM
920151408
€ 1.00
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
920221455
€ 4.50
92022A
920221524
ref: 92022A
WASHER,FORK OUTER PIP
920221524
€ 3.50
92002B
920021552
ref: 92002B
BOLT,THROTTLE STOP SC
920021552
€ 10.00
92002C
920221554
ref: 92002C
WASHER,PLAIN,8MM
920221554
€ 3.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92037
920371454
ref: 92037
CLAMP,FRONT FORK
920371454
€ 8.50
92037A
920371499
ref: 92037A
CLAMP,LH
920371499
€ 16.50
92049
920491372
ref: 92049
SEAL-OIL,FORK OUTER T
920491372
€ 15.00
92055
920551132
ref: 92055
RING-O,FORK SPRING SE
920551132
€ 4.00
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
920551164
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
920551201
€ 1.00
92093
920931314
ref: 92093
SEAL,FORK OUTER TUBE
920931314
€ 16.50
220
220C0412
ref: 220
SCREW-PAN-CROS
220C0412
€ 1.50
