CRANKCASE

ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

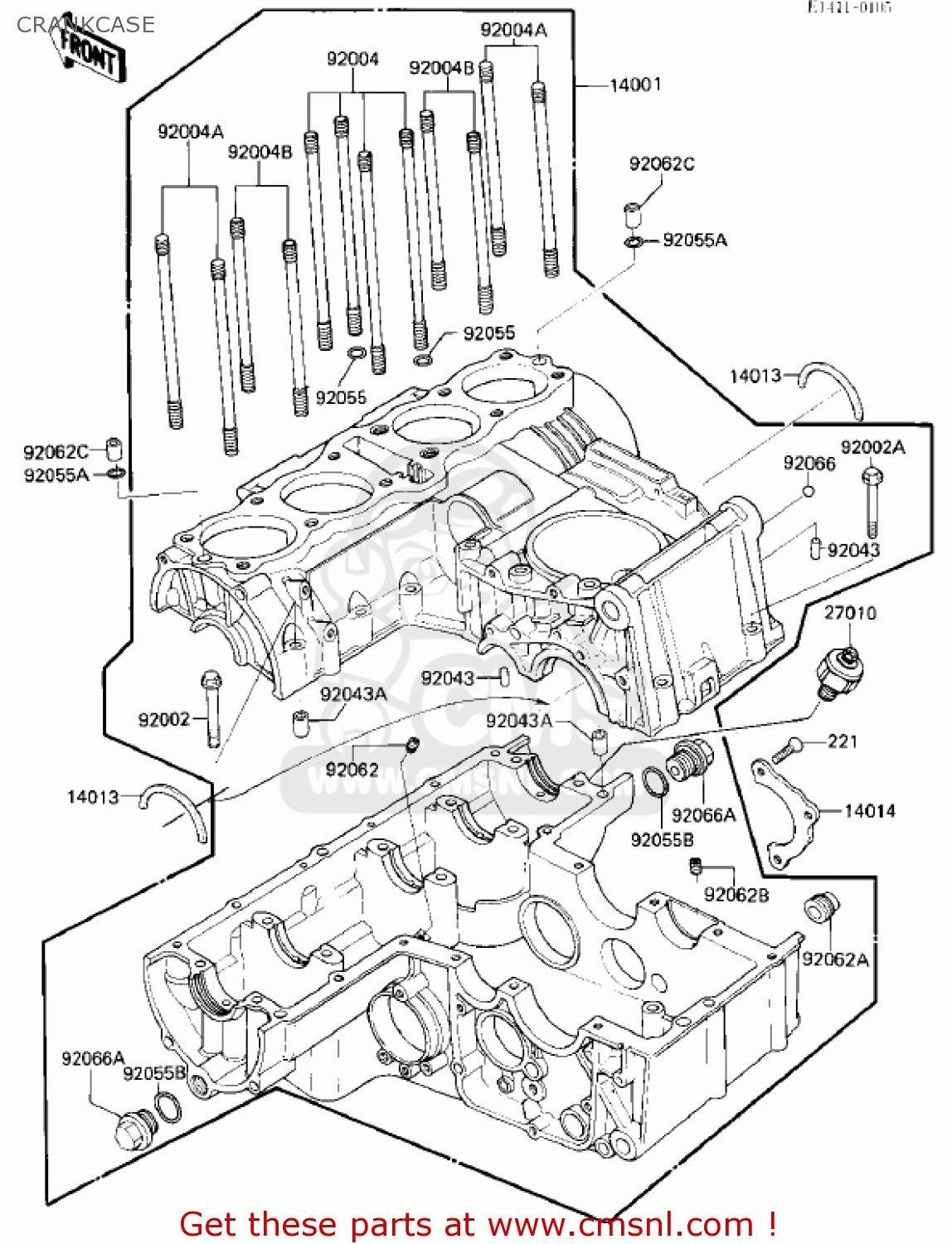

Crankcase diagram ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA

CRANKCASE ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
CRANKCASE ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
CRANKCASE ZX750E2 GPZ750 TURBO 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14001
140015154
ref: 14001
SET-CRANKCASE
€ 1,824.50
14013
140131051
ref: 14013
RING-POSITION
140131051
€ 1.50
14014
140141007
ref: 14014
PLATE-POSITION,SECOND
140141007
€ 7.00
27010
270101155
ref: 27010
SWITCH,OIL PRESSURE
270101155
€ 28.00
92002
920021079
ref: 92002
BOLT,6X50
920021079
€ 4.00
92002A
920021080
ref: 92002A
BOLT,6X40
920021080
€ 3.50
92004
92004062
ref: 92004
STUD, 10X153
92004062
€ 13.50
92004A
920041004
ref: 92004A
STUD, 10X133
920041004
€ 11.50
92004B
920041007
ref: 92004B
STUD, 10X116
920041007
€ 6.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
92042016
€ 3.50
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92055
92055099
ref: 92055
O RING, 8.8MM
92055099
€ 3.00
92055A
670D2010
ref: 92055A
O RING,10MM
670D2010
€ 1.00
92055B
920551146
ref: 92055B
RING-O
920551146
€ 5.50
92062
92062011
ref: 92062
NOZZLE,OIL
92062011
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
92062014
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
92062015
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
92062016
€ 3.50
92066
92066057
ref: 92066
PLUG,RUBBER BALL,6.7
92066057
€ 3.00
92066A
920661096
ref: 92066A
PLUG,MAIN GALLARY,18X
920661096
€ 7.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
221B0620
€ 0.50
