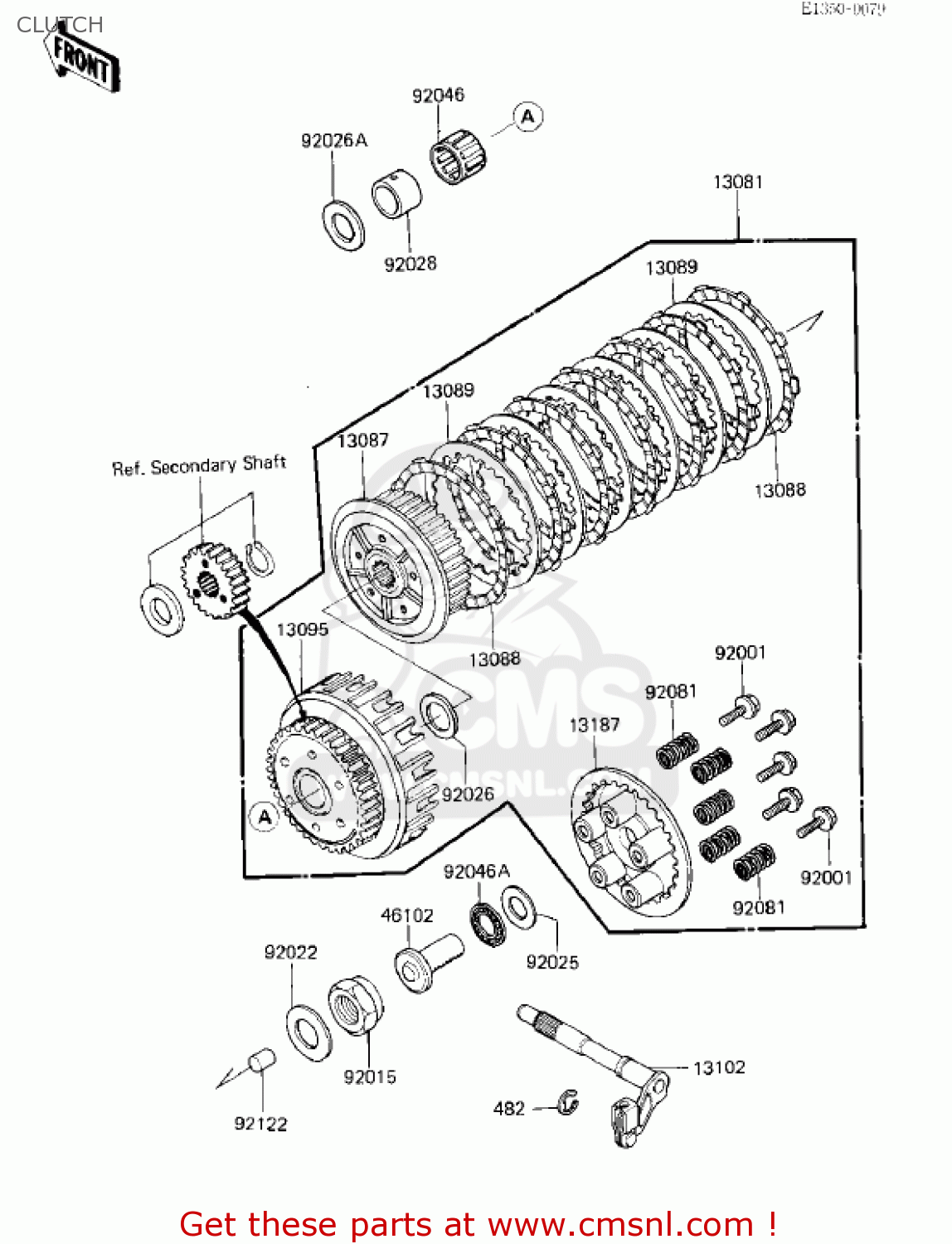

CLUTCH

ref

part #

description

quantity

13081

130811167
ref: 13081

CLUTCH-ASSY

€ 645.00

13087

13087043
ref: 13087

HUB-CLUTCH

€ 131.00

13088

130881052
ref: 13088

PLATE-FRICTION (NAS)

€ 15.50

13089

13089022
ref: 13089

PLATE-CLUTCH (NAS)

€ 8.50

13095

130951108
ref: 13095

HOUSING-COMP-CLUTCH

€ 264.00

13102

131021024
ref: 13102

RELEASE-COMP-CLUTCH

€ 24.00

13187

131871014
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 61.00

46102

461021061
ref: 46102

ROD,CLUTCH,6T

€ 23.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92015

920151555
ref: 92015

NUT,20MM

€ 9.00

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92025

920251022
ref: 92025

SHIM,15.3X27.5X1.20

€ 4.50

92026

92026022
ref: 92026

SPACER,25.5X47X2.5

€ 6.50

92026A

920261201
ref: 92026A

SPACER,25.3X42X2.3

€ 9.00

92028

92028178
ref: 92028

BUSHING,CLUTCH

€ 17.00

92046

92046028
ref: 92046

BEARING-NEEDLE,KTV323

€ 20.50

92046A

920461052
ref: 92046A

BEARING-NEEDLE,AXK110

€ 14.00

92081

920811176
ref: 92081

SPRING,CLUTCH

€ 6.50

92122

921221019
ref: 92122

ROLLER,10X12

€ 3.50

482

482K9000
ref: 482

CIRCLIP-TYPE-E,9MM

€ 2.50

all assemblies
