TRANSMISSION
ZX750-P8 2003 USA CALIFORNIA CANADA

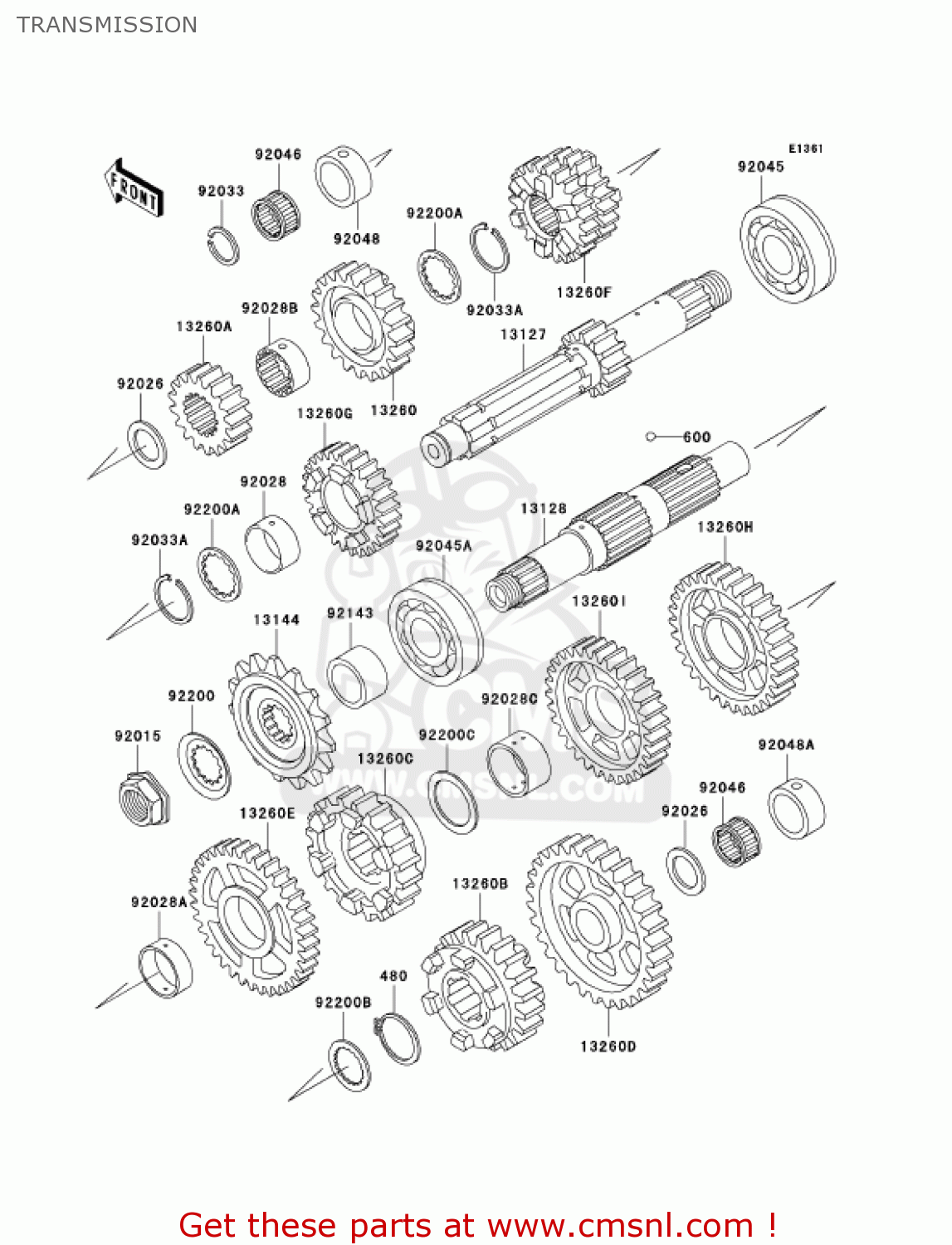

Transmission diagram ZX750-P8 2003 USA CALIFORNIA CANADA
TRANSMISSION ZX750-P8 2003 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271244
ref: 13127
SHAFT-TRANSMISSION IN
€ 253.50
13128
131281208
ref: 13128
SHAFT-TRANSMISSION OU
€ 209.50
13144
131441256
ref: 13144
SPROCKET-OUTPUT,16T
€ 35.50
13260
132601401
ref: 13260
GEAR,INPUT TOP,29T
€ 129.00
13260A
132601526
ref: 13260A
GEAR,INPUT 2ND,18T
€ 149.00
13260B
132601528
ref: 13260B
GEAR,OUTPUT 5TH,33T
€ 129.50
13260C
132601529
ref: 13260C
GEAR,OUTPUT TOP,32T
€ 129.50
13260D
132601538
ref: 13260D
GEAR,OUTPUT LOW,40T
€ 92.50
13260E
132601539
ref: 13260E
GEAR,OUTPUT 2ND,36T
€ 92.50
13260F
132601608
ref: 13260F
GEAR,INPUT 3RD&4TH,21
€ 149.50
13260G
132601609
ref: 13260G
GEAR,INPUT 5TH,27T
€ 149.00
13260H
132601612
ref: 13260H
GEAR,OUTPUT 3RD,34T
€ 114.00
13260I
132601613
ref: 13260I
GEAR,OUTPUT 4TH,32T
€ 142.00
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
€ 6.00
92028
920281449
ref: 92028
BUSHING,INPUT 5TH GEA
€ 17.50
92028A
920281707
ref: 92028A
BUSHING
€ 21.50
92028B
920281752
ref: 92028B
BUSHING,INPUT TOP GEA
€ 26.00
92028C
920281753
ref: 92028C
BUSHING,OUTPUT,3RD&4T
€ 28.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92045
920451224
ref: 92045
BEARING-BALL,6305N2SH
€ 40.00
92045A
920451323
ref: 92045A
BEARING-BALL,5305X
€ 119.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481066
ref: 92048
RACE,NEEDLE BEARING
€ 25.50
92048A
920481067
ref: 92048A
RACE,0RZ30X38X17PX1
€ 39.00
92143
921431788
ref: 92143
COLLAR,ENGINE SPROCKE
€ 12.50
92200
922001065
ref: 92200
WASHER
€ 4.50
92200A
922001240
ref: 92200A
WASHER,2ND,3RD,4TH
€ 7.00
92200B
922001277
ref: 92200B
WASHER,TOOTHED,28X30X
€ 8.00
92200C
922001278
ref: 92200C
WASHER,29.9X40X1.5
€ 8.00
